Specifications
1.60W-150W laser power2.Imported laser lens
3.G code format is available
4.Rotary for cylinder object engraving
5.CE FDA

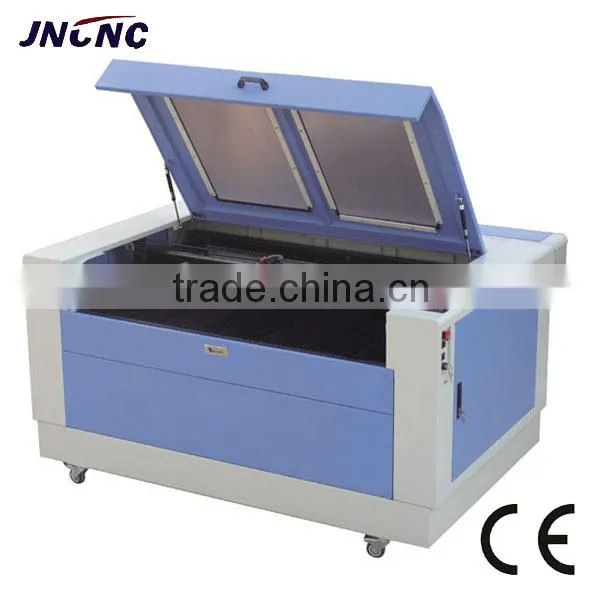

CE Large Size Laser Cutting Machine for Sale
1. Brief introduction:
This machine can engrave and cut wood, fabric, bamboo, rubber, stone and other non-metal materials,widely used in advertising,garment,craft,model,packing,decoration industries.
2. Laser Cutting Machine For Sale Picture:
3. Parameters:
Model Name |
CNC-L1H590 |
Working Area |
1500*900mm |
Laser Power |
80W 100w 130w 150w |
Laser Type |
Sealed-off Glass CO2 Laser Wavelength: 10.6um |
Cooling System |
water pump Water cooling(option:chiller) |
Laser Output Control |
0-100% no section control, soft inner 0-100% adjustable |
Control System and Driver |
High Speed DSP control system, stepper motor, high subdivision driver |
Engraving Speed |
0-1200mm/s |
Cutting Speed |
0-600mm/s |
Voltage |
AC220V/110V±10% 50HZ/60HZ |
Reposition Accuracy |
≤±0.01mm |
Minimum Letter Size |
English : 1mm |
Machine Power |
≤1000W |
Rise and fall height |
High precision electric ball screw lifting 300mm |
Working Environment |
Temperature: 0-45°C Humidity: 5%-95% ( No condensate water) |
Warranty |
12 Months (6 months for laser tube) |
Supported Format and Software |
PLT, DST, DXF, BMP, AI; Support AutoCAD, Corel Draw output directly |
Option Equipment |
Red light positioning system,3D Camera |
4. Features:
1). High quality laser tube provides the strong beam and long service life.
2). Focus lens and reflect molybdenum mirrors guarantee the powerful cutting strength.
3).The imported linear guide way ensures the high precision and the long service.

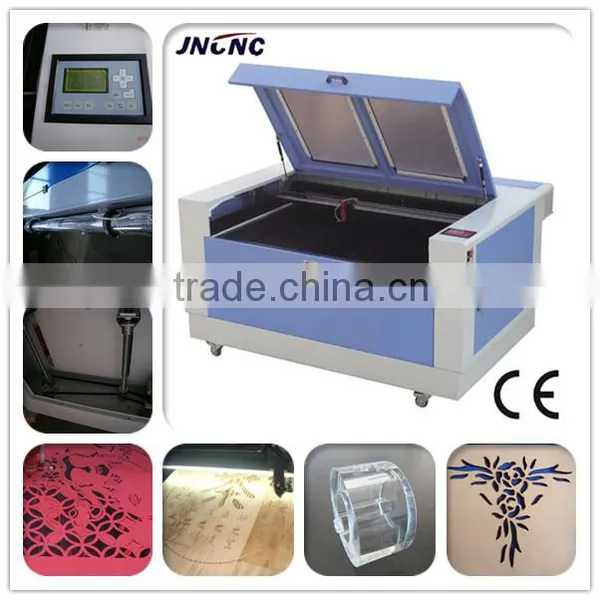

5.Main parts picture:
6. Samples pictures:
7. Packing details:
8. Factory show:
9. Warranty and after sales service:
1) One year free warranty, main parts are free of charge when problems happened during this period.
2) Life time free maintenance service.
3) Free training course at our factory with professional engineers.
