Specifications
1.Easy operating2.Built-in switching power supply
3.24 after sales service
4.1M-4M capability memory
5.CE/FDA
Small Vinyl Artcut Cutting Plotter
1.Brief Introduction:
CNC cutting plotter can cutting nice graphics and patterns out of self-adhesive sheet,sunlight proof film and stickers instead of manual cutting orprinting.

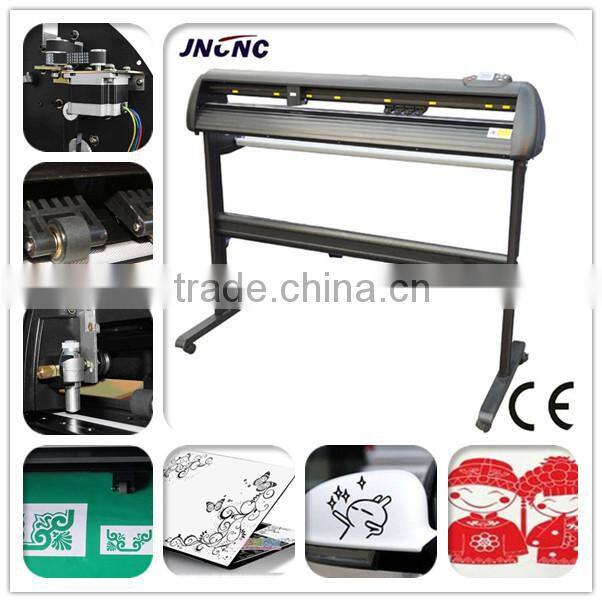

2.Picture of Vinyl Artcut Cutting Plotter:
3.Technical Parameters:
Model |
CNC-CP1180 |
Control System |
Risc Micro-controller |
Drive Type |
Digital DC,Stepper motor |
Maximum Media |
1130mm |
Maximum Cutting |
1020mm |
Cutting Speed |
50-800MM/S |
Cutting Force |
50-500g |
LCD Display |
English |
Capability |
1M-4M |
Command |
HPGL / DMPL |
Interface |
USB, RS232 serial port |
Curve Smoothing |
Yes |
Cutting Test |
Yes |
Power Supply |
AC 110V~AC 250V / 50~60 Hz |
Warranty |
12 Months |
4.Features:
1).Super English LCD display screen, adjust easily.
2).Build-in power stabilizing power supply to keep machine steady. Unique electric circuit design, working without interference by voltage fluctuation. Main board works in stable position even under
the circumstance of 180V-250V.
3).Advanced design and high accuracy machine structure allows smaller cut letters without distortion.
4).Precisely machined rollers ensure paper feeding and running accuracy.
5).Big capacity memory 1 M(option 4M) realizes rapid data copy with high speed, improving working efficiency.

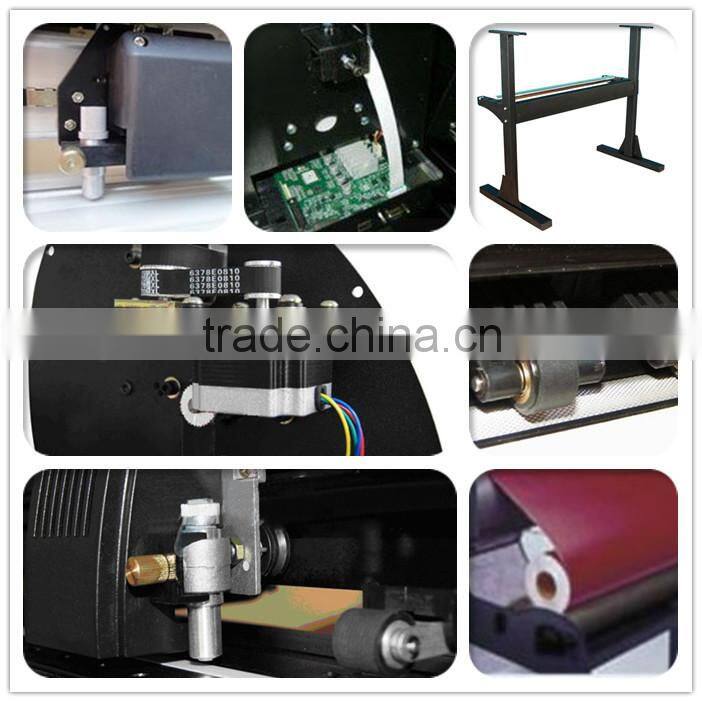

5.Main Parts Picture:
6.Samples Show:
7.Packing Show:
8.Factory Show:
9.Warranty and after sales service:
1) One year free warranty, main parts are free of charge when problems happened during this period.
2) Life time free maintenance service.
3) Free training course at our factory with professional engineers.
