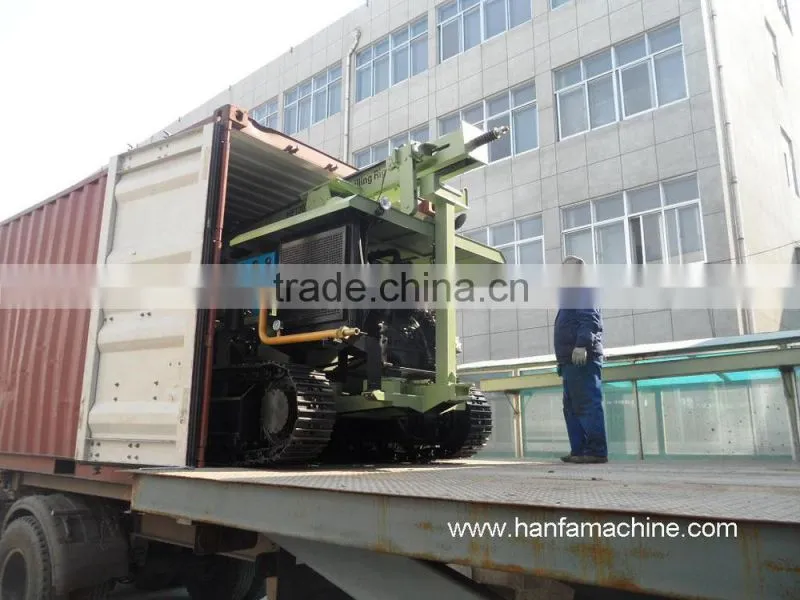

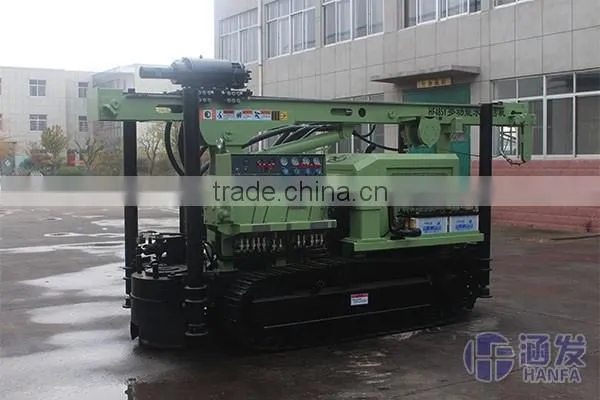

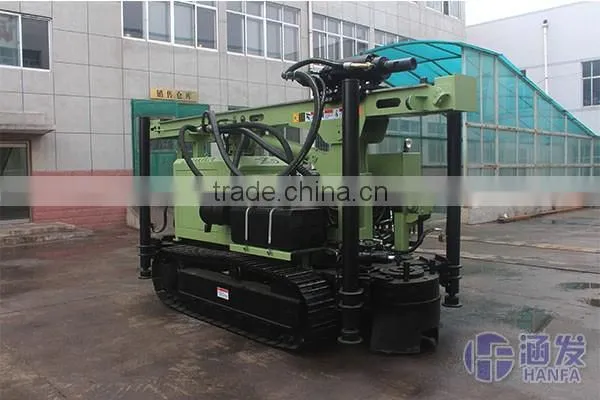

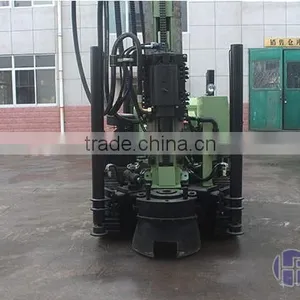

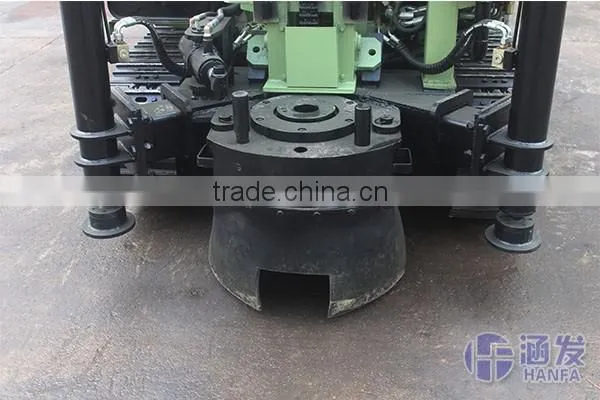

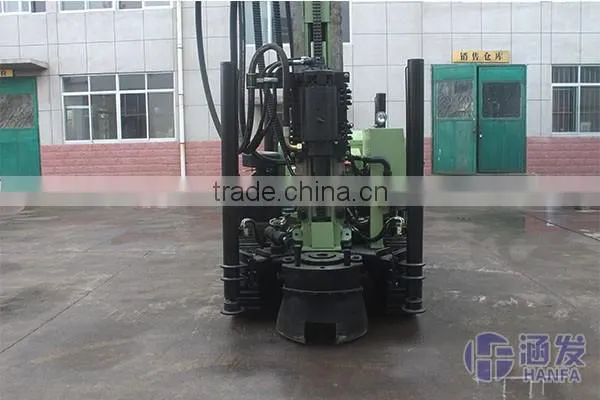

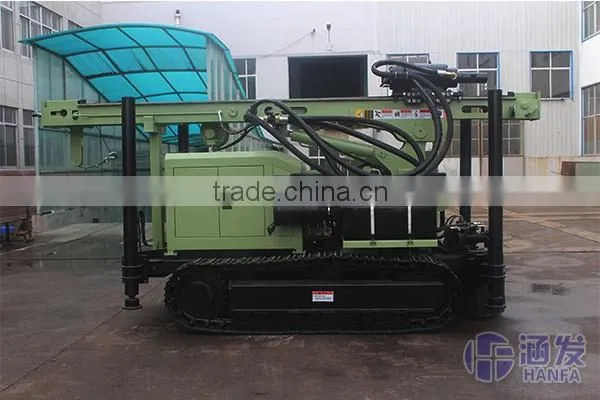

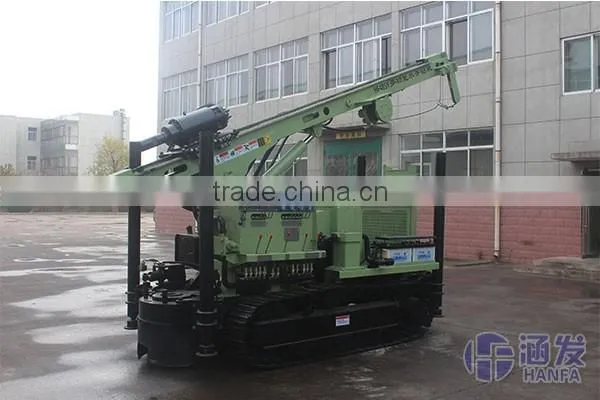

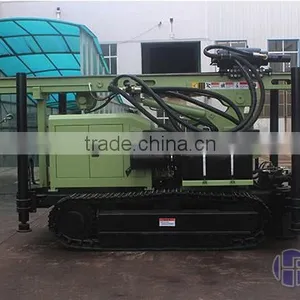

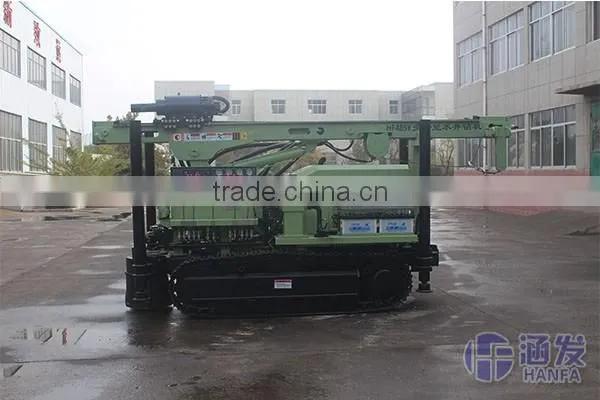

HF485Y crawler type practical water well drilling rig
HF485Y track-type water well drilling rig is lightweight, efficient, multi-purpose drilling equipment, which can use air, foam or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular, in drilling hole for geothermal heating it can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements.
Bore diameter(mm) |
115-300 |
Bore depth(m) |
200 |
Walk speed(km/h) |
0-2.5 |
For rock |
6-20 |
Air pressure(Mpa) |
1.05-3.0 |
Air consumption(m3/min) |
16-30 |
Once promotion(mm) |
3000 |
Skid max angle(.) |
90 |
Maximum height from the ground(mm) |
320 |
Rotation Speed(r/min) |
0-100 |
Rotation torque(Nm) |
3900 |
Lifting power(T) |
8 |
Climb ability(.) |
25 |
Dimension(L*W*H)(mm) |
4900*1600*2400 |
weight(Kg) |
5700 |
HANFA GROUP have exported to more than 60 countries,our customers applaud the manufacture quality.We welcome the friend who come from all parts of the world sincerely, we will make great efforts to offer better products to customer.HANFA GROUP also welcome our friends to visit our factory and inspect our products.Cooperation or not,you still our friend,you will feel you just stay at home when you come to our factory.Welcome your coming!
Our products has been authorized and certified by TUV and ISO9001:2008. We guarantee the quality of the machines for one year after the trial run (excluding the wearing parts), but not exceeding 15 months from the date on which machines leave the factory.
