Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > Best Selling Tunisia 400 Meters Depth HFC400 Truck Mounted Water Drilling Rig

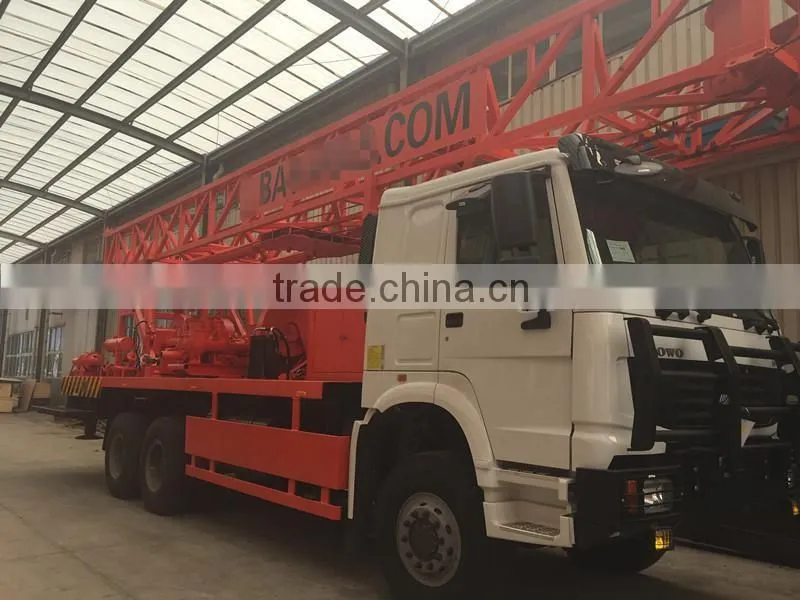

Best Selling Tunisia 400 Meters Depth HFC400 Truck Mounted Water Drilling Rig
US$ 230000.00 - 230000.00
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HF100T Small Tractor Mounted Water Well Drilling Rig, Portable Drilling RigUS$ 8,000 - 12,000MOQ: 1 Set -
HF100T Small Tractor Mounted Water Well Drilling Rig, Mini Water Well Drilling RigUS$ 8,000 - 12,000MOQ: 1 Set
-
Best Sell !!! HF120W Handheld Drilling Machine , DTH Drilling Trailor Mounted With Diesel EngineUS$ 50000.00 - 50000.00MOQ: 1 Set
-
Pile Foundation HF130Y Auger Rod Drilling Rig SupplierUS$ 27,500 - 100,000MOQ: 1 Set
-
Capable for Rock HF510T Water Rigs for SaleUS$ 32,500 - 50,000MOQ: 1 Set
Condition
New
Type
Rotary Drilling Rig
Power Type
Diesel
Place of Origin
Henan, China
Brand Name
Hanfa
Model Number
HFC400
Usage
Water Well
Power(W)
118kw
Dimension(L*W*H)
12600mm x 2500mm x 4230mm
Weight
24t
Certification
ISO CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas

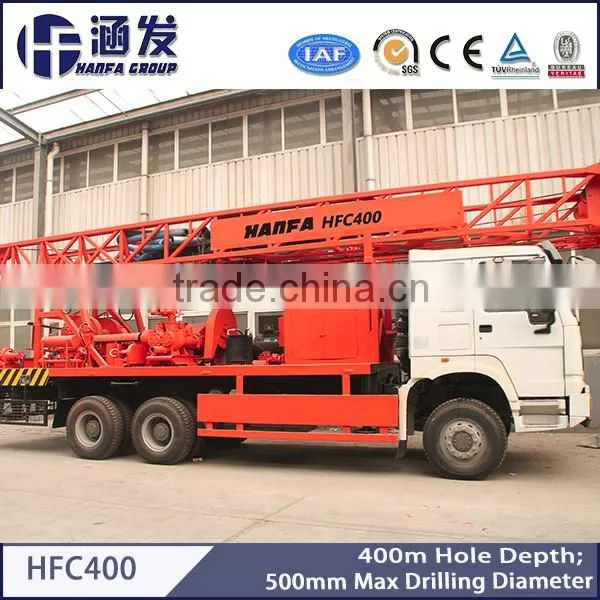

HFC400 truck mounted drilling rig
Specifications of HFC-400 Truck mounted drill rig
| Drilling capacity | Moving force | BF6L913G55 or 6135AN |
| Hole depth | 400m | |
| Diameter max | 500mm | |
| Drill rod | 89mm x 10mm x 6000mm / 73mm x 9mm x 6000mm | |
| Max. turntable diameter | 505mm | |
| Active Kelly | 108mm x 108mm x 7315mm | |
| Drill tower | Effective height | 11m |
| Hook rated load | 25t | |
| Hoisting system | 3 x 4 | |
| Dimensions for transport | 12600mm x 2500mm x 4230mm | |
| Weight | 24t | |
| Power | model | BF6L913G55 |
| name | intercooled turbocharged diesel enine | |
| Cylinder diameter | 102 x 125mm | |
| Power | 118kw / 2500r/min | |
| Max. torque | 555N.m / 1600r/min | |
| Transmission box | Output speed | 1107r/min |
| Chain box | Input speed | 1107 r/min |
| Output speed | 964r/min | |
| Gearbox | Input speed | 1107r/min |
| Double hydraulic cylinder-cable driving mechanism | Pressure capacity | 196000N |
| Reduce pressure capacity | 135000N | |
| Decompression strock | 7.6m | |
| Unloading pipe cylinder | Strock | 185mm |
| Cylinder inside diameter | 110mm | |
| Rated torque | 60000N.m | |
| Mud pmp BW900 | Max. pressure | 2.5Mpa |
| Max. displacement | 900L/min | |
| Hydraulic pump | Type | GPC4-50 |
| Displacement | (cm3/r) 52.5 |
