Specifications
hammer drill1. electric motor,drive
2.easy to operate
3.can drill hard rock
4.trailer type
Hot sale,Most popular in the market!!!HF-6A rock core drilling machine
I. Feature and Application

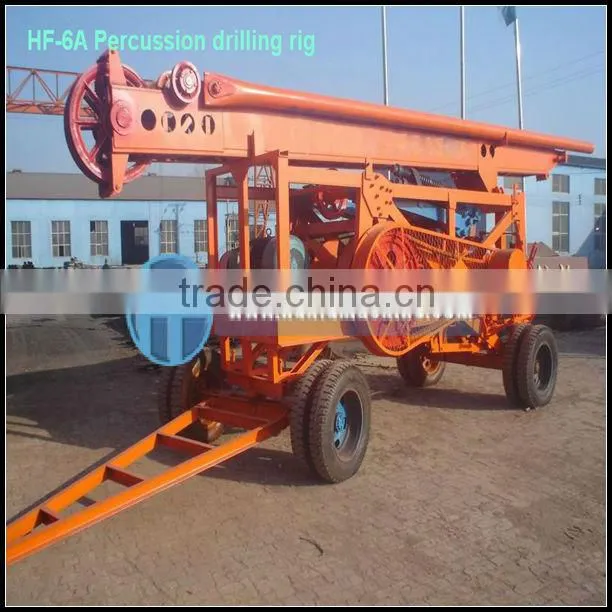

HF-6A percussion drilling rig is one of the most important drilling machine in the piling foundation and bore hole drilling. It can adapt various geological condition, especially for drilling hole in gravel and rock with strong adaptation. Meantime, percussion drilling rig has high pore forming efficiency and good pile formation quality.

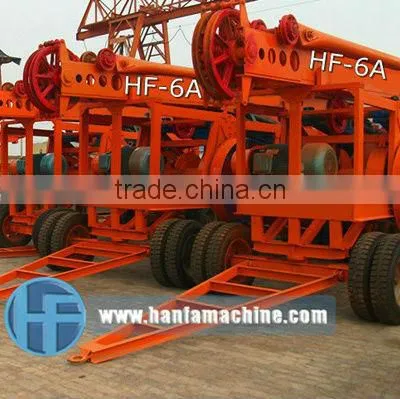

HF-6A drilling rig is very popular in the market currently, all of its components are all installed in the trailer, like electric motor,drive motor, hoist, mast etc, integrate motion. The percussion drilling rig uses the crank-link mechanism to change the power's gyration motion into alternating motion, through the steel wire rope to drive the hammer bit to do up-and-down motion. With the impact effect of the hammer bit's free failing, to break the soil, sand, gravel or rock into pieces, and then use the slag tube or mud pump to clean the slag our of the hole.
Tubular bit has all kinds of diameters, the hole decides the size and weight of the bit.This tubular bit is very efficient in drilling soil, sand, gravel and rock layer whose hardness is less than 1000kp.
Solid bit has various shapes, but most of the shapes are "+" or "-" types.There are all kinds of sizes, the diameter of the hole decides the size and weight of the bit.This solid type bit is hard to break in drilling rock layer whose hardness is more than 1000kp.
The drilling way of percussion rig is to break the rocks into granular slag, though it is not as efficient as core drilling rig or screw drilling rig, but it is irreplaceable, for it can operate in the geological layer when other drilling rigs can not. In short, there is no layers that this kind of drilling rig can not drill, the drill speed depends on the hardness of the working stratums.
II. Technical Parameter
No |
Description |
Specification |
|
1 |
Overall dimension (L*W*H) |
Operating mode |
9.30mx2.50mx3.10m |
Pulling mode |
9.30mx2.28mx2.80m |
||
2 |
Gross weight |
9500 kg |
|
3 |
Bore hole diameter |
Φ300mm-Φ1800mm |
|
4 |
Drilling depth |
30m-300m |
|
5 |
Max. weight of drilling tools |
5000 kg |
|
6 |
Impact stroke |
min 700mm, max 800mm |
|
7 |
Impact frequency |
38-42/min |
|
8 |
Electric motor |
Model:YL280M2-6 55kw, 980r/min |
|
9 |
Mast height |
Single pole:8.5-9.5m; Double pole:12.5m |
|
10 |
Mast load capacity |
50,000 kg |
|
11 |
Hauling speed in highway |
30 km/h |
|
12 |
Hoist lifting capacity |
Pre-hoist |
20,096 N |
Post hoist |
68,357 N |
||
13 |
Winding drum rope specification and capacity |
Pre-winding drum |
6x19s+IWRC 200-300m (levorotation) |
Post-winding drum |
6x37-φ18 200-250m (levorotation) |
||
14 |
Wheel |
Wheel size |
7.50-20 |
Steel ring size |
20×7 |
||
2,Designs of HF series water well/core drilling rig
Innovation is the key to our success: During these years, we continually make new designs on our products to
make them easier for clients to use.
Hydraulic chuck: It is designed to save the trouble from ball chuck.
Slide: It is designed to move the machine backward or forward when you need to lift/change the drill rod or adjust
the drilling position.
Trailer: 2-wheel, 4-wheel, 6-wheel. It is designed to move the drilling rig with tractors or such pulling devices.
Truck mounted: Easy to move and operate, they are also with hydraulic systems.
Crawler: Self-propelled, able to clime, suitable for complex terrains.
Hydraulic system: Tower and support. It is designed to decrease labor cost; two men are more than enough
to operate the drilling rig with hydraulic system.
Digital control: Multiple data display, easy controlling and monitoring, very convenient and efficient for
geological study.
3. Production ability
We have more than 50 sets of processing equipment to ensure the quality of our product, which has proved worthy by our client’s recognition. And these equipments ensure large production capacity and adequate stock.
We have all the small models in stock all year long and the bigger ones ready within 15-30 days.
4. Customers
With all the effort put in, we have successfully marketed our products to almost every corner of the world. Here are the pictures of our clients’ visits and our clients’ on-the-site operation.
5. Packing
To protect drilling rigs during sea transportation, we give them proper packing.
HF130, HF80,HF150E,HF150,HF200,HF30: Wooden case
HF-3,HF-4,HFDX-6.HF-8,HFT200,HFT350B: Plastic woven bag
Spare parts: Wooden case or plastic woven bag
HFT-200, HFT-3: Nude, main machine in plastic woven bag.
6. Quality guarantee
Our products has been authorized and certified by TUV and ISO9001:2008. We guarantee the quality of the machines for one year after the trial run (excluding the wearing parts), but not exceeding 15 months from the date on which machines leave the factory.
