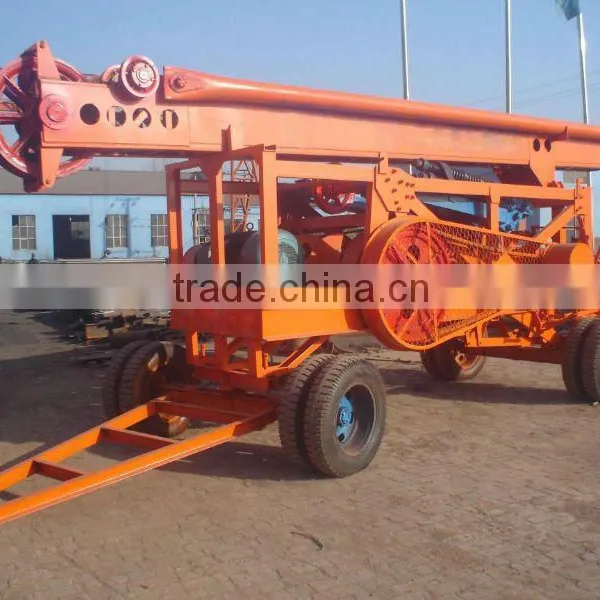

HF-6A Piling Machine
I.Product Description:
1>Percussion type drilling rig is one important drilling equipment in foundation construction of pile and
borehole.It can adopt to various geological conditions,especially to pebble bed and rock stratum.
Percussion drilling rig is more applicable than the other kinds of drilling machines.Meanwhile,when use
the percussion drilling rig to drill boreholes,after the hole is formed,there will be a dense layer of soil
around the hole wall,which is very useful for stabilizing the hold wall and improving the carrying
capacity of the pile foundation.
2> HF-6A drilling rig isvery popular in the market currently,all of its components are all installed in
the trailer,like electric motor,drive motor,hoist,mast etc,integrate motion. The percussion drilling rig
uses the crank link mechanism to change the power's gyration motion into alternating motion ,
through the steel wire rope to drive the hammer bit to do up-and down motion.With the impact
effect of the hammer bit's free failing,to break the soil,sand,pebble or rock into pieces,and then
use the slag tube or mud pump to clean the slag our of the hole.
II.Parameters of HF-6A
HF-6A Basic Mechanical Features and Specifications | |||
No. |
Mechanical features |
Specifications |
|
1 |
Dimensions(M) |
9.30*2.50*3.10 |
|
2 |
Transport dimensions(M) |
9.30*2.28*2.80 |
|
3 |
Weight(kg) |
9500 |
|
4 |
Drilling diameter(mm) |
300-1800 |
|
5 |
Drilling depth(M) |
300(when dia. Is 600mm) |
|
6 |
Max.Weight of drill bit(kg) |
5000 |
|
7 |
Impact stroke(mm) |
Max.850,Min.700 |
|
8 |
Rate of impact(time/min) |
38-42 |
|
9 |
Electric motor |
Model YL280M2-6,55KW 980R/Min |
|
10 |
Height of mast (M) |
Single bar8.5-9.5m; Double bar12.5m |
|
11 |
Load capacity of mast(kg) |
50000 |
|
12 |
Hauling speed(km/h) |
30 |
|
13 |
Lifting capacity of Hoist(N) |
Front hoist |
20096 |
Back hoist |
68357 |
||
|
14
|
Steel wire rope of coiling block(M) |
Front coiling block |
6×37-dia.18 200-250(Left turning) |
Back coiling block |
6×19s+IWRC 200-300(Left turning) |
||
|
15
|
Wheel |
Tire size |
7.50-20 |
Steel ring size |
20×7 |
||
