Specifications
HF-W11 wheel type rotary drilling rig1.rotary drilling depth is 11m
2.easy to operation
3.high efficiency
4.use widely

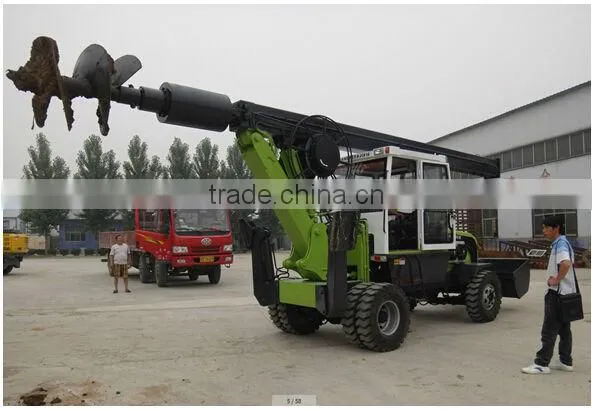

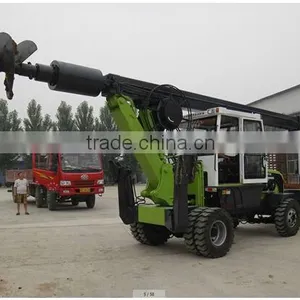

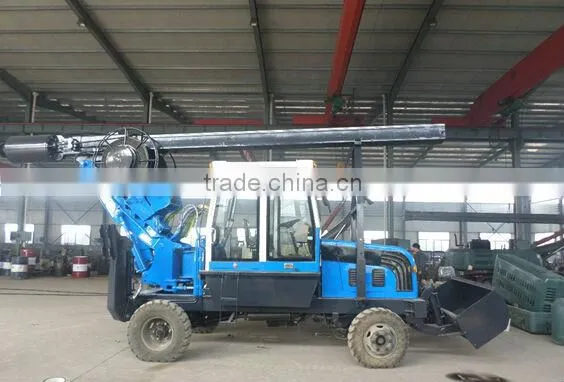

HF-W11 wheel type rotary drilling rig
Introduction------rotary drilling rig
1.HF-W11 wheel type rotary drilling rig adopt pressurized drilling mode, enabling rotary drilling depth is 11m. matching the different specifications of drilling tools, pile hole diameter range up to 500-1500mm.
2.It has high drilling efficiency ,and After construction, It can quickly move to next worksite . flexible, convenient and efficient, is a national high-speed rail construction-specific piling machinery equipment.
3.This machine is applicable to soil, clay, fill soil, silt, silt layer, and some strata contain pebbles, gravel; widely used in high-speed rail trestle piles, slop shield piles, photovoltaic power station foundation pile, power grids, civil construction, new rural construction, municipal construction, landscaping and other projects.
Features------rotary drilling rig
Flexible: the whole tonnage is small, simple operating, moving fast, convenient transition, etc features.
High returns: small investment, quick gains, economic advantages can not be replaced.
Technology patents: patent uses a unique technology to achieve a small torque but big power characteristics, thus achieve a small machine to drill big piling hole .
Technical data------rotary drilling rig
model |
HF-W11 |
Working mode |
Pressure type drilling |
Drilling diameter (mm) |
Φ500-Φ1500 |
Max drilling depth (m) |
11 |
Diamension (mm) |
9000X2050X3100 |
Total weight (t) |
7.8 |
Tire model |
900-20 |
Power head torque (KN.m) |
17000-22000 |
Power head rotary speed (r/min) |
30-50 |
Max lifting power (KN) |
15000 |
Max stroke (m) |
11-12 |
Wire-rope diameter (mm) |
16 |
Rotation angle ( °) |
180 |
Travel speed (km/h) |
20-30 |
Max Gradeability ( °) |
25-30 |
Diesel engine model |
ZSWF4108 |
Diesel engine power (KW) |
88 |
Diesel engine rotary speed (r/min) |
2400 |

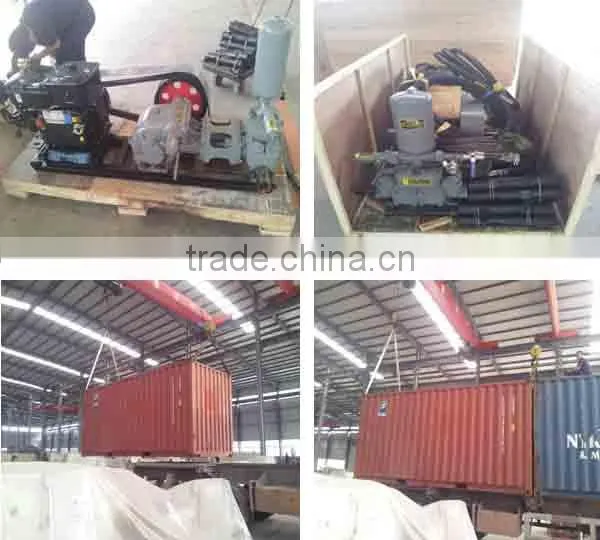

Package ------ small rotary drilling rig
The suitable packing and efficient protection of the product will be adopted to keep the drilling rigs from the damage during the transportation:
HF130, HF80, HF150E, HF150, HF200, HF30: Wooden case
HF-3, HF-4, HFDX-6, HF-8, HFT200, HFT350B: Plastic woven bag
Spare parts: Wooden case or plastic woven bag
Communication with the overseas customers------rotary drilling rig
1.Are you trading company or manufacturer?

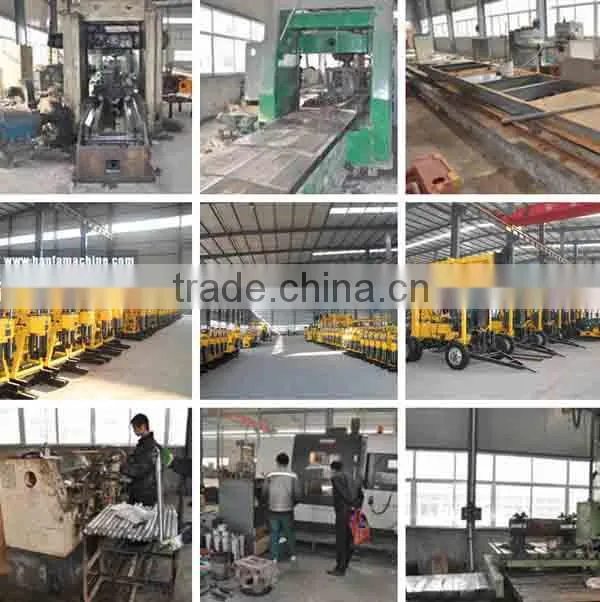

We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2.Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.
3.How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4.Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your work site and provide the training for your staff.
5.What about the quality warranty?
We offer one-year quality warranty for machines' main body.
6.How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
