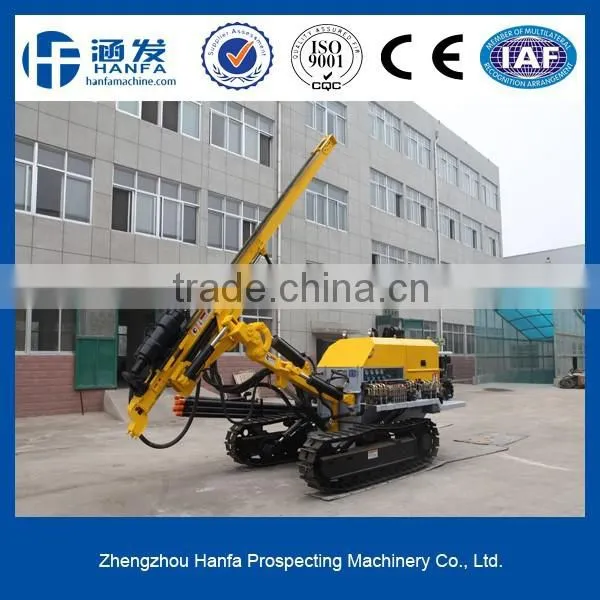

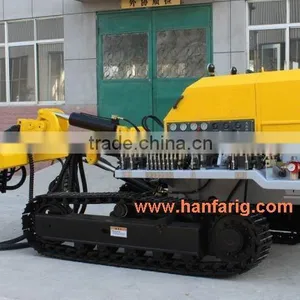

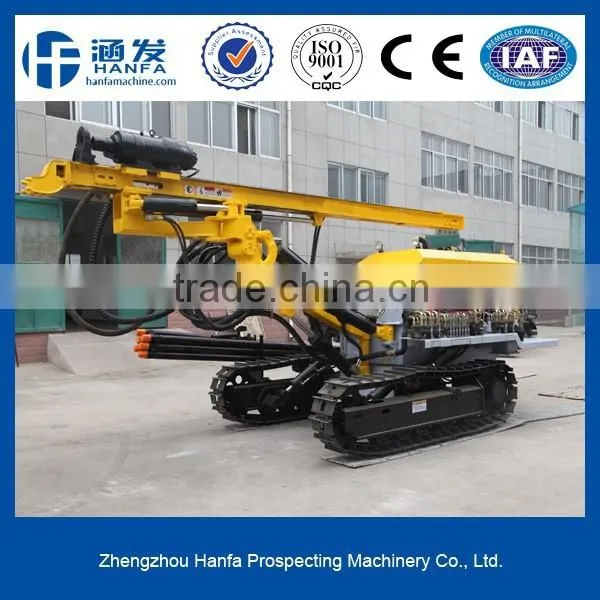

HF140Y Bore Pile Drilling Machine

Name: HF140Y Bore Pile Drilling Machine
Brand: HF bore pile drilling machine
SKU: 101807017
Availability: InStock

US$ 26,000 - 36,500 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, auger drilling rig

Power Type:

Diesel

Zhengzhou Hanfa Imp & Exp Trading Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao port China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, auger drilling rig

Power Type Diesel

Place of Origin Henan, China

Brand Name HF bore pile drilling machine

Model Number HF140Y bore pile drilling machine

Usage Other, pile drilling

Voltage work with diesel engine

Power(W) 56KW

Dimension(L*W*H) 5270*1950*2300mm

Weight 4800kg

Certification ISO, CE

Warranty one year for the main machine

After-sales Service Provided Engineers available to service machinery overseas

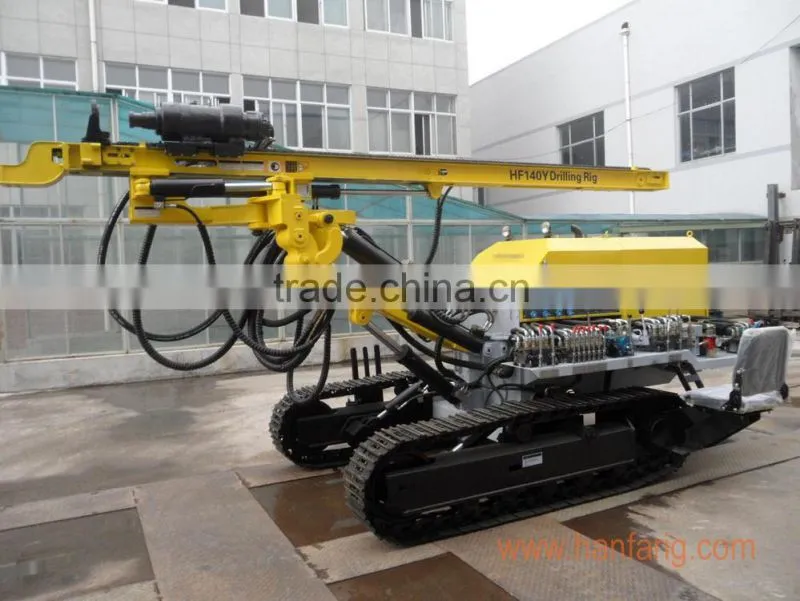

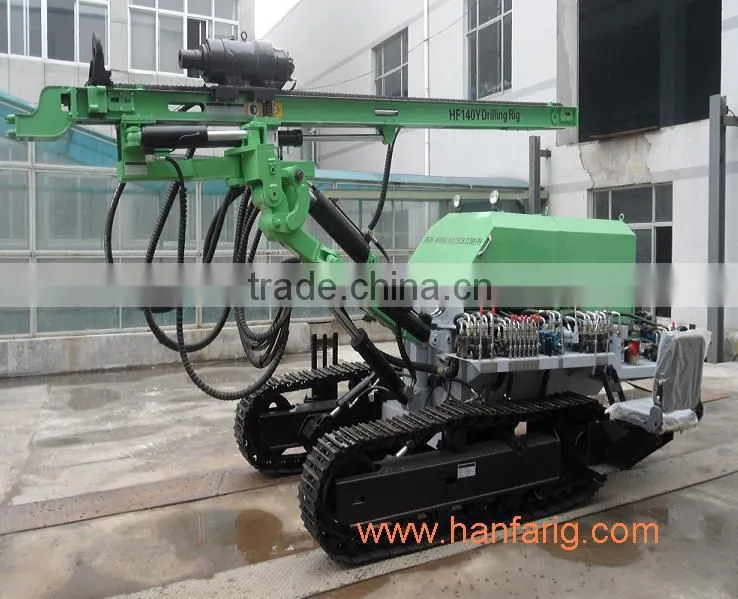

HF140Y bore pile drilling machine

Brief introduction

1. depth: level 60m down 30m, hole diameter 115~140mm;

2. steel crawler mounted, suitable for any place, especially rugged and muddy places;

3. low air consumption, high efficiency, simple operation;

4. drill rod rack adopts folding type, avoid repeated disassembly during transit;

5. it is mainly used for slope drilling, soil nail drilling, open mining, highway, power station construction etc;

Technical parameters

Bore diameter	115-140mm
Bore depth	60m
Walk speed	0-2.5kw/h
For rock	F=6-20
Air pressure	1.05-2.46Mpa
Air consumption	10-20m³/min
Once promotion	3000mm
Skid pitch	Up and down total100°
Skid swing angle	Up and down total100°
Boom swing angle	Left and right total 70°
Boom pitch	Up and down total 60°
Host power	56Kw
Rotation speed	0-126/min
Dimension(LWH)	527019502300(mm)
weight	4800Kg
Note:The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation.
