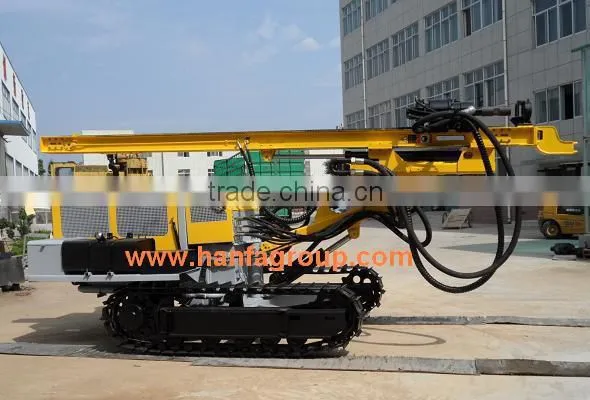

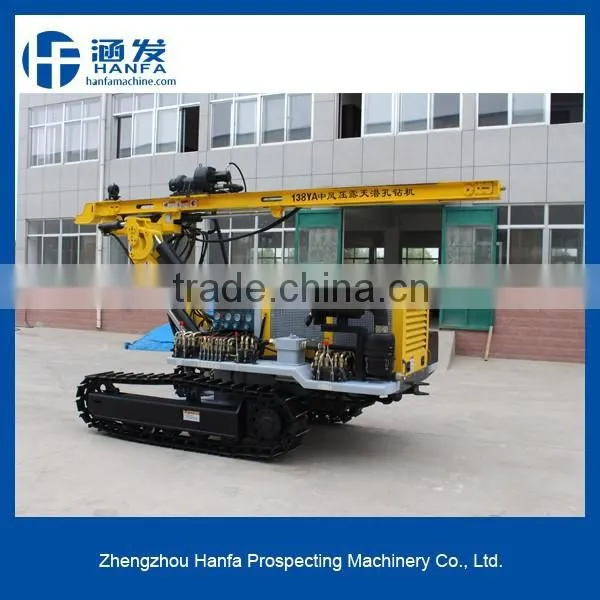

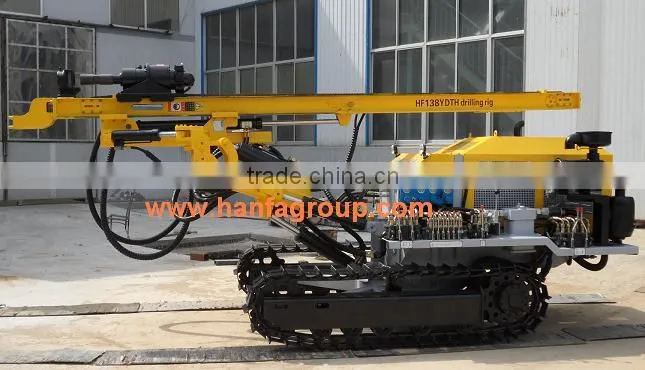

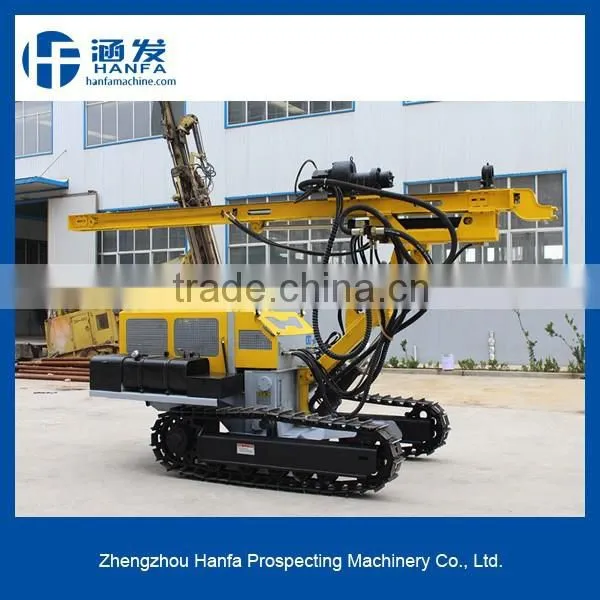

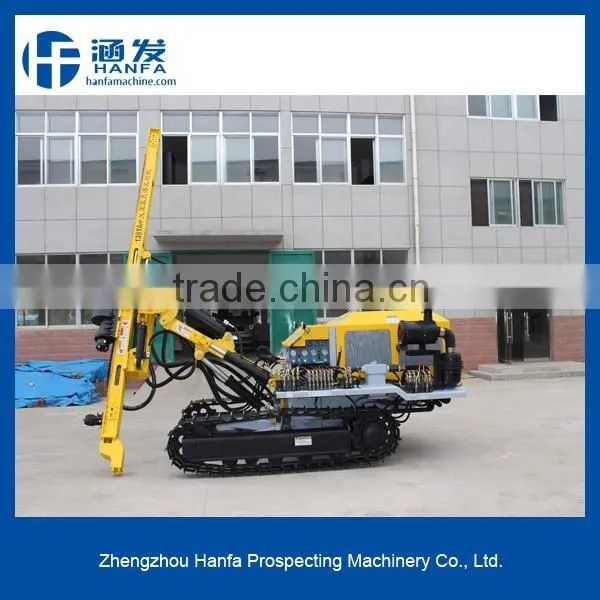

HF138Y auger drilling machine
HF138Y drilling rig it has low energy consumption, high efficiency, easy to transport and field construction superior technical performance, vehicle movement organizations from the hydraulic system to achieve, and only washed the source of the wind machine consumption, resulting in Air Machine Matching saves in a complete set of equipment procurement costs.
Rotary organizations to adopt a new dual-motor turret to make it to the open-air blast drilling operations when drilling large holes to maintain a strong rotary torque output, dragging air compressor, it has the mobile and flexible and climbing ability, suitable for pile drilling, rugged venue operations, perforation shift convenience features.
Bore diameter |
115-140mm |
Bore depth |
60m |
Walk speed |
0-2.5kw/h |
For rock |
F=6-20 |
Air pressure |
1.05-2.46Mpa |
Air consumption |
10-20m³/min |
Once promotion |
3000mm |
Skid pitch |
Up and down total100° |
Skid swing angle |
Up and down total100° |
Boom swing angle |
Left and right total 70° |
Boom pitch |
Up and down total 60° |
Host power |
56Kw |
Rotation speed |
0-126/min |
Dimension(L*W*H) |
5270*1950*2300(mm) |
weight |
4800Kg |
|
Note:The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation. | |
In working site
Customer visiting

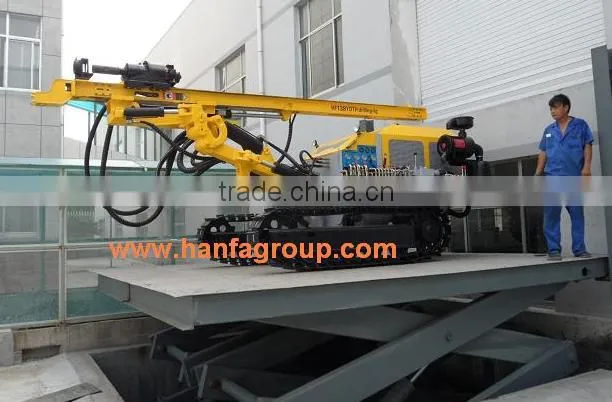

Delivery
After sale service
our engineers will offer technical supports on 24 hours, you can call us at: +86-371-55019599 or send email at: admin(at)hanfamachine(dot)com;
