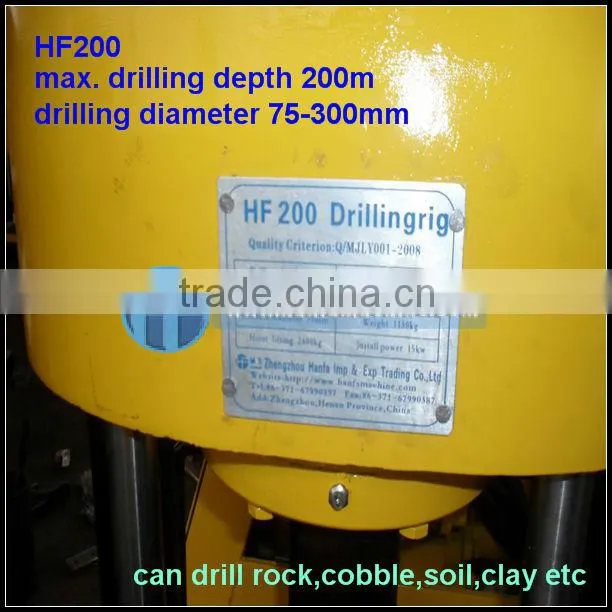

ISO certificate machine, HF200 soilmec drilling rig
USD $8,650 - $10,500
/ Set
1 Set(Min.Order)
- 100 Set / Sets per Month
- qingdao
- Credit Card
You May Like
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Condition: | New | Type: | Core Drilling Rig | Power Type: | Diesel |
| Place of Origin: | Henan, China | Brand Name: | Hanfa | Model Number: | HF200 |
| Usage: | Ore | Power(W): | 415kw | Dimension(L*W*H): | 2.5*1*1.3m,2.5*0.9*1.3m |
| Weight: | 910kg(no including power) | Certification: | ISO9001:2000 certificate | Warranty: | one year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications

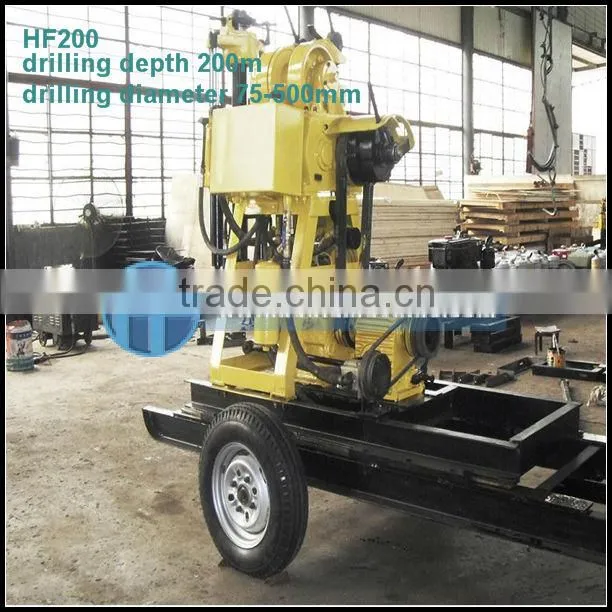

HF200 soilmec drilling rig1.hydraulic,trailer type
2.high efficiency,can drill 200m
3.drill in rock,cobble,sand,soil
4.ISO
ISO certificate machine, HF200 soilmec drilling rig
Features and Advantages
1.hydraulic,trailer type
2.rock expert,high efficient drilling rig
3.ISO9001:2000 certificate
4.national free-inspection product
Technical paraments
| Main machine technical parameter | |
| Drilling depth | 30--200m |
| Drlling diameter | 500-75mm |
| Drilling pipe diameter | 50mm |
| Drilling angle | 90°~75° |
| Drilling weight(no include power) | 910kg |
| Unity machine dimensions | 2.5×1×1.3m, 2.5×0.9×1.3m |
| Spindle | |
| Spindle speed | 64,128,287,557r/min |
| Spindle stroke | 450mm |
| Hoist | |
| Max.single line hoisting capacity | 2000kg |
| Single line lifting speed | 17,35,75,151r/min |
| Tightrope caliber | 12.5mm |
| Tightrope cubic measure | 35m |
| Hug floodgate diameter | 254mm |
| Hug floodgate belt width | 70mm |
| Distance between drill and hole | 400mm |
| Mud pump | |
| Type | Horizontal single urn twin-action |
| Displacement | 170L/min |
| Power | |
| Diesel engine | s1110 Model, 22HP |
| Electric Motor | Y160M—4 15kw 1440r/min |
| Maximum pressure | 1.5Mpa |
| Work pressure | 0.7Mpa |
| Water inlet caliber | 40mm |
| Water to exit caliber | 30mm |
| Triangle conveyer belt | B1728mm |

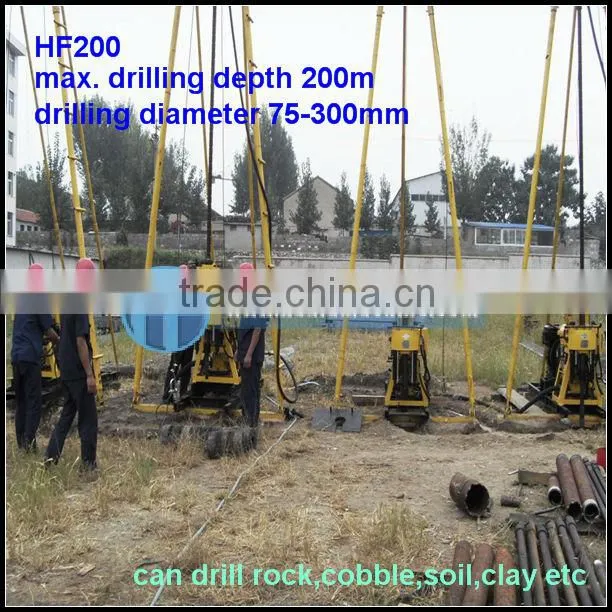

Working site
