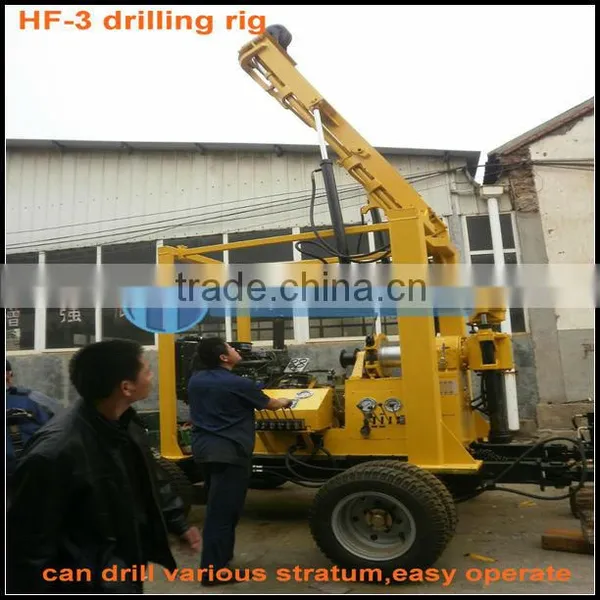

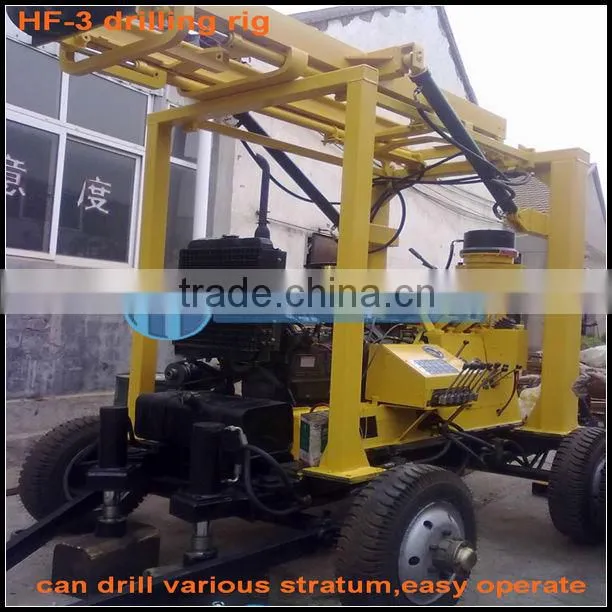

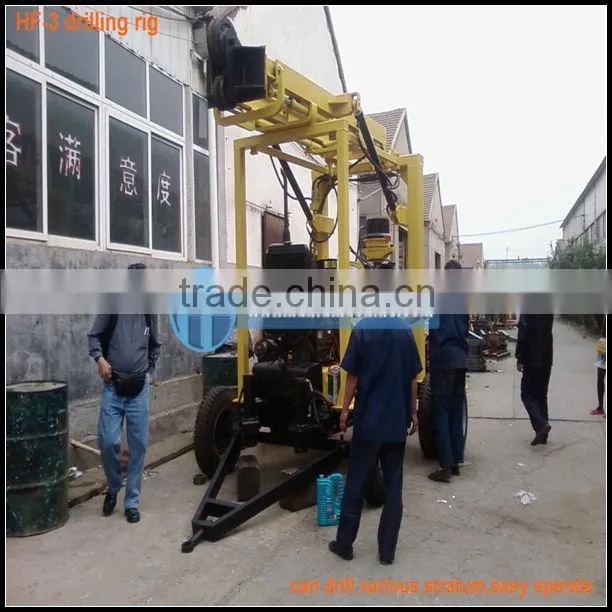

Hottest Rig! Hydraulic,trailer Type HF-3 Bench Drilling Machine
US$ 23,000 - 35,600
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Your Good Helper! Easy Operate HF-MPI Underground Wire LocatorNegotiableMOQ: 1 Set -
Your Good Helper! Easy Operate HF-MPI Cable LocatorNegotiableMOQ: 1 Set
-
Your Good Helper! Easy Operate HF-MPI Cable Pipe LocatorNegotiableMOQ: 1 Set
-
Hottest Rig for Home Use! HF150E Drill Machines Home UseUS$ 2,000 - 4,000MOQ: 1 Set
-
Hottest Rig for Home Use! HF150E Small Water Well Drilling MachineUS$ 2,000 - 4,000MOQ: 1 Set
Condition
New
Type
Core Drilling Rig
Power Type
Diesel
Place of Origin
Henan, China
Brand Name
HF
Model Number
HF-3
Usage
Ore
Power(W)
422kw
Certification
ISO9001:2000
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
HF-3 bench drilling machine1.hydraulic,easy operate
2.high efficiency,can drill300-600m
3.can drill rock,sand,soil
4.ISO
hottest rig! hydraulic, trailer type HF-3 bench drilling machine
I. Features
1. To be equipped with hexagonal vertical shaft and hexagonal drive drilling rod, with strong rigidity and big transfer torque. 2. The entire machine is featured by strong adaptability, high motive power, low cost and broad compatibility. 3. To be provided with hydraulic control pressure feed mechanism for the purpose of improvement of construction efficiency. 4. To use hydraulic control well head displacement mechanism for enlargement of initial hole diameter.
II. Main machine technical parameter
| Drilling depth | 300-600m |
| Open hole caliber | 300mm |
| End hole caliber | 75mm |
| Drilling rod | Φ 60mm |
| Drilling angle | 90° -65° |
| Spindle | |
| Spindle forward speed | 57-1024r/min |
| Spindle reverse speed | 45-212r/min |
| Spindle stroke | 560mm |
| Spindle inner diameter | 96mm |
| Spindle lifting capacity | 6000kg |
| Hoist | |
| Single line lifting speed | 0.515 0.894 1.421 1.948m/s |
| Hug floodgate belt width | 90mm |
| Tightrope caliber | 12.5 or 14mm |
| Hoist single line lifting capacity | 3000kg |
| Reel caliber | 200mm |
| Reel cubic measure | 30mm |
| Mud pump | |
| Horizontal double actuator | |
| Displacement | 200,125L/min |
| Triangle conveyer belt type | B×5 |
| Work pressure | 4.6Mpa |
| Water inlet caliber | 65mm |
| Water to exit caliber | 37mm |
| Oil pump | |
| Duplex gear oil pump F532/F314 | |
| Front displacement,pressure | 32L/min 20Mpa |
| Behind displacement,pressure | 14L/min 20Mpa |
| Drilling rig Power | |
| Diesel engine | 4100 41HP |
| Electric motor | Y180L-4 22KW |

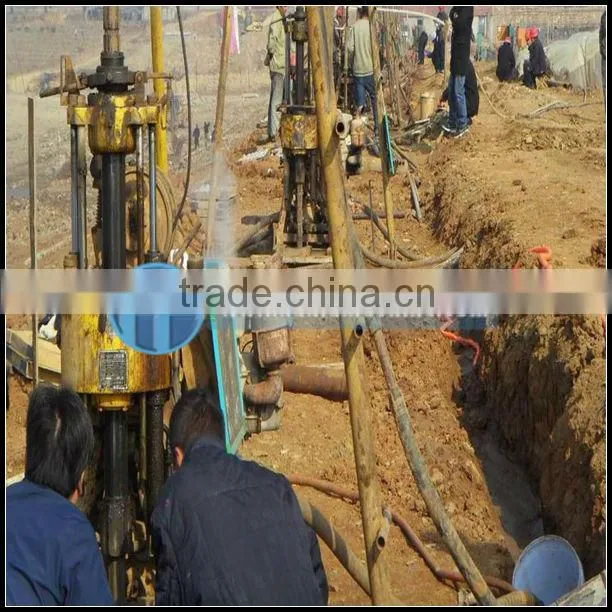

Working site
