Specifications
middle size water well drilling rig1.super performance
nvenient to operate
3.reliable operation
4.trailer type.very

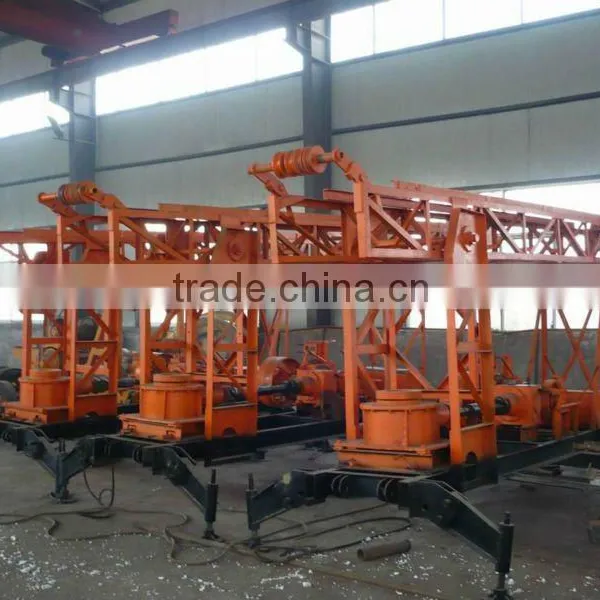

HF180 middle size water well drilling rig
1.introduction of middle size water well drilling rig
This machine work efficiency is high,drilling footage is seepdy,assist time is short,especially suitable used in shallow well .this machine adopt color tower type combination,and It has drilling tools of motionlink to assure the upright of bore, it has the characteristics of compact structure,easy installation,stable performance,easy operation and maintain ,suitable for water well drilling and piling foundation .
3. Technical Parameter of middle size water well drilling rig
Max drilling diameter |
1200mm |
Max drilling deepth |
180m |
Max output torque |
2knm |
Driving drilling pipe size |
108×4.5×4000mm |
Drilling pipe size |
108×4.5×2500mm |
Max drilling diamter of turntable |
140mm |
Turntable speed |
55R/min |
power |
7.5KW electric motor or 12HP diesel engine |
Hoist lifting capacity |
5T |
Overall Dimension |
4800×1700×6500mm |
Main machine Weight |
2200kg |
