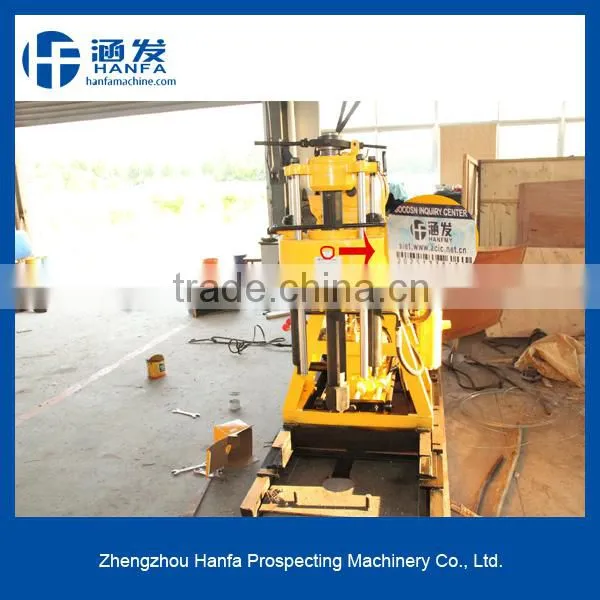

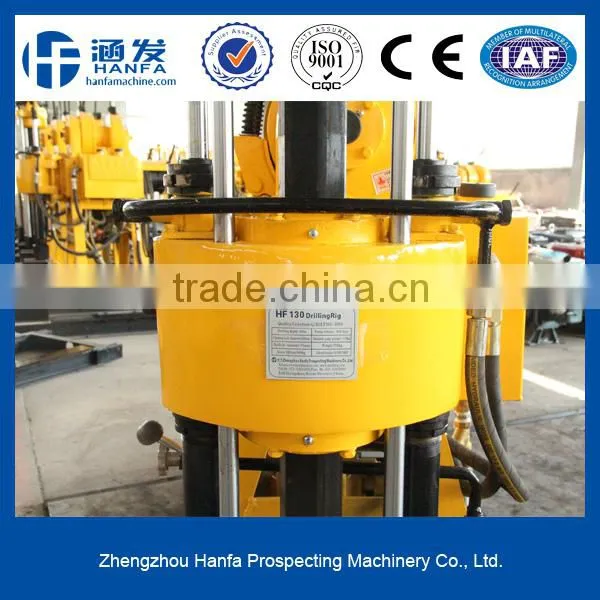

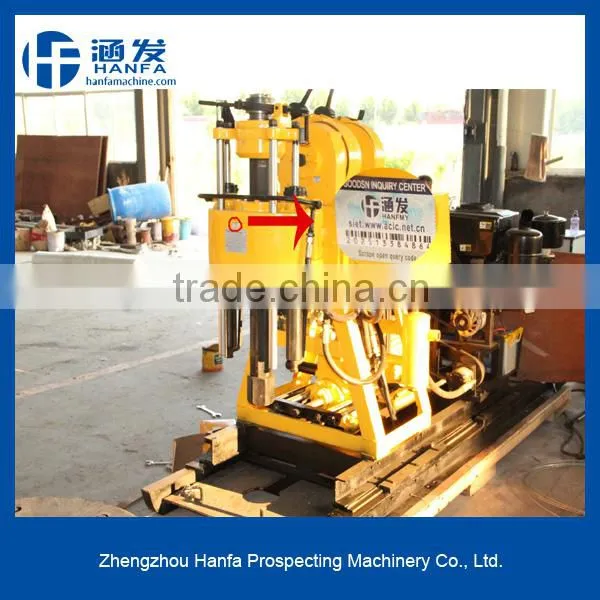

HF130 hydraulic water drilling equipment with trailer chassis
1. Application of HF series hydraulic water drilling equipment
Since our establishment in 2004, we have been devoting ourselves to researching and developing easy-operation, highly-efficient and large-capacity drilling rigs.
Designed for multiple functions,our HF series water well/core drilling rigs are designed for geological exploration, water well drilling, soil sampling, core sampling(normal coring and wireline coring), pile drilling, etc.
2. technical parameters about hydraulic water drilling equipment
I. Features and Advantages
1>it can drill Max130m depth,Max 260mm open diameter (end hole 75mm)
2. The technical parameters
Unity machine parameter | ||
Drilling depth |
130m |
|
Maximum open hole caliber |
260mm |
|
End hole caliber |
75mm |
|
Drill rod caliber |
50mm |
|
Drilling angle |
90~75 |
|
Drill weight (No include power) |
510 560kg |
|
Unity machine dimensions |
2.5×1×1.3 2.5×0.9×1.3m |
|
Spindle | ||
spindle speed |
142285570r/min |
|
Spindle stroke |
450mm |
|
Hoist | ||
Max.single line hoisting capacity |
960kg |
|
Single line lifting speed |
0.41 0.82 1.64m/s |
|
Tightrope caliber |
27m |
|
Mud pump | ||
Type |
Horizontal single urn twin-action |
|
Displacement |
95/77L/min |
|
Diesle engine |
s1105 18HP |
|
Electric motor |
Y160M-4 11kw 1440r/min |
|
Maximum pressure |
1.2Mpa |
|
Work pressure |
0.7Mpa |
|
Water inlet caliber |
30mm |
|
Water to exit caliber |
25mm |
|
Triangle conveyer belt |
B1575mm |
|
Suit scope | ||
Geology general check exploration,Earth physics exploration,Road and high layer building ground survey,Well,Blast opening et cetera drilling engineering. | ||
3,Designs of HF series hydraulic water drilling equipment
Innovation is the key to our success: During these years, we continually make new designs on our products to
make them easier for clients to use.
Hydraulic chuck: It is designed to save the trouble from ball chuck.
Slide: It is designed to move the machine backward or forward when you need to lift/change the drill rod or adjust
the drilling position.
Trailer: 2-wheel, 4-wheel, 6-wheel. It is designed to move the drilling rig with tractors or such pulling devices.
Truck mounted: Easy to move and operate, they are also with hydraulic systems.
Crawler: Self-propelled, able to clime, suitable for complex terrains.
Hydraulic system: Tower and support. It is designed to decrease labor cost; two men are more than enough
to operate the drilling rig with hydraulic system.
Digital control: Multiple data display, easy controlling and monitoring, very convenient and efficient for
geological study.
4. Production ability( hydraulic water drilling equipment )
We have more than 50 sets of processing equipment to ensure the quality of our product, which has proved worthy by our client’s recognition. And these equipments ensure large production capacity and adequate stock.
We have all the small models in stock all year long and the bigger ones ready within 15-30 days.
5. Customers( hydraulic water drilling equipment )
With all the effort put in, we have successfully marketed our products to almost every corner of the world. Here are the pictures of our clients’ visits and our clients’ on-the-site operation.
6. Packing( hydraulic water drilling equipment )
To protect drilling rigs during sea transportation, we give them proper packing.
HF130, HF80,HF150E,HF150,HF200,HF30: Wooden case
HF-3,HF-4,HFDX-6.HF-8,HFT200,HFT350B: Plastic woven bag
Spare parts: Wooden case or plastic woven bag
HFT-200, HFT-3: Nude, main machine in plastic woven bag.
7. Quality guarantee( hydraulic water drilling equipment )
Our products has been authorized and certified by TUV and ISO9001:2008. We guarantee the quality of the machines for one year after the trial run (excluding the wearing parts), but not exceeding 15 months from the date on which machines leave the factory.
