Specifications
Down Hole Drilling Rig1. crawler type,solid & easy to transport
2. DTH type,working with mud pump and air compressor
Down Hole Drilling Rig

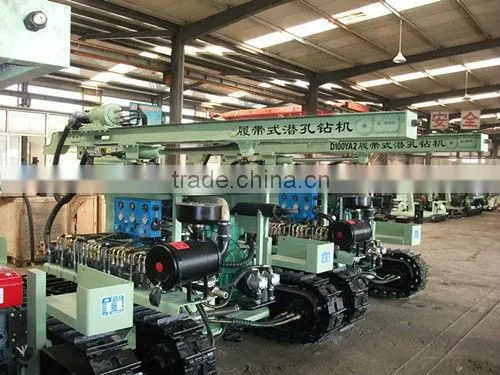

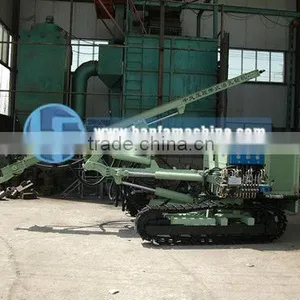

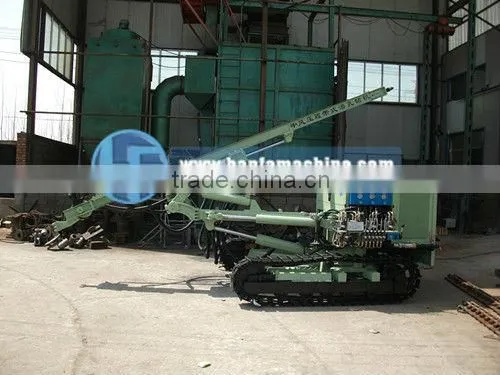

Welcomed & Durable HF120Y Crawler DTH Drilling Rig
Technical Parameter
Product Description
HF-120Y type crawler hydraulic drilling rig, using a new hydraulic technology, with low air consumption rotary torque, variable-bit-shift hole easy The drilling rig compact structure, while promoting a retractable sliding shelf compensation, drilling when the sliding frame support on the ground, drilling and good stability. Use 120Y rig reliable Chazzan efficient drilling in hard rock drilling rig as fast as 2 times the low air pressure is the construction unit cost efficiency gains strong support.
The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock blasting whole drilling.
Main technical parameters
Wind pressure(Mpa) |
0.7—1.6 |
Air consumption(m³/min) |
10--15 |
Drilling diameter(mm) |
90—130 |
Drilling depth(m) |
level 40m,down 50m |
Once promotion distance(mm) |
3000 |
Drill diameter(mm) |
60 |
Skid compensation(mm) |
1020 |
Maximum lift force(N) |
18000 |
Skid pitch(°) |
up and down total 100 |
Swinging angle of skid(°) |
Left 90, right 45 |
Boom swing angle (°) |
Left 45, right 45 |
Boom Pitch(°) |
up and down total 70 |
Grade ability(°) |
25 |
Chassis ground clearance(mm) |
260 |
Travelling speed(Km/h) |
2 |
Back to the transit speed(r/min) |
0--80 |
Rotary torque(N.m) |
2000 |
Host Power(Km) |
37 |
For rock(f) |
6---20 |
Total Weight(kg) |
4600 |
Dimension (L * W * H)(mm0 |
5200*2030*2300 |
|
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation.
| |
