Specifications
soil drilling machine1. Dept:200m
2. diameter:300mm
3. truck mounted
soil drilling machine

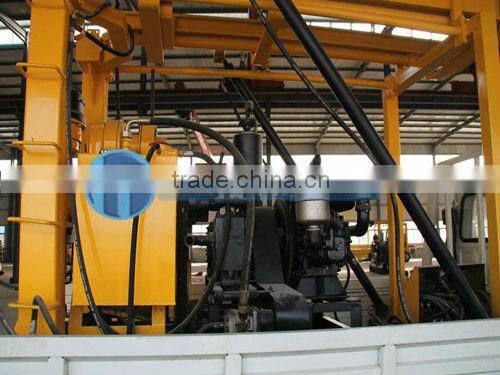

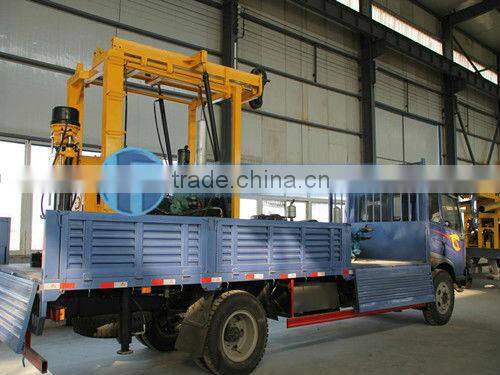

HFT-200 soil drilling machine
Item | Unit | Parameter | ||
structure | rotary | |||
power | kw | 15 | ||
working state overall dimension | length | mm | 5995 | |
width | mm | 2060 | ||
height | mm | 7500 | ||
structure weight | kg | 1500 | ||
drilling depth | m | 200 | ||
hole diameter | mm | 75-300 | ||
driving lever | mm | 53/59x4000 | ||
drill rod | mm | 50 | ||
drill bit | mm | 75-300 | ||
vertical shaft speed | r/min | 64,128,287,557 | ||
winch | roller diameter | mm | 140 | |
winding speed of single cord | m/s | 0.12,0.22,0.49,0.95 | ||
lifting power of single cord | kN | 24 | ||
content of roller | m | 35 | ||
steel wire diameter | mm | 13 | ||
drill tower | rated load | t | 5 | |
effective height | m | 6 | ||
tower leg specification | mm | 160X120X6 | ||
faucet | max lifting power | kN | 50 | |
rubber tube diameter | mm | 50 | ||
mud pump | model | BW160 | ||
displacement | L/min | 160 | ||
working pressure | Mpa | 1.3 | ||
Reciprocating frequency | number/min | 165 | ||
truck | model | ZB1043LSDS | ||
engine type/power | LN4D27E3/66KW | |||
seat | 3+3 | |||
