Home > Industrial Equipment & Components > Pump & Vacuum Equipment > Water Pump > Premium Quality Three Cylinders Mud Pump Valve Seat Puller,easy Operation

Premium Quality Three Cylinders Mud Pump Valve Seat Puller,easy Operation

Name: Premium Quality Three Cylinders Mud Pump Valve Seat Puller,easy Operation
Brand: HF three cylinders mud pump valve seat puller
SKU: 101798753
Availability: InStock

Premium Quality Three Cylinders Mud Pump Valve Seat Puller,easy Operation thumbnail-1

Premium Quality Three Cylinders Mud Pump Valve Seat Puller,easy Operation photo-1

US$ 3,750 - 5,860 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Henan, China

Brand Name:

HF three cylinders mud pump valve seat puller

Model Number:

BW160,BW200,BW250

Contact Supplier Request Quote Chat Now

Zhengzhou Hanfa Prospecting Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

qingdao port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Henan, China

Brand Name HF three cylinders mud pump valve seat puller

Model Number BW160,BW200,BW250

Theory Rotary Pump

Usage Water

Power Other, diesel

Standard or Nonstandard Standard

Fuel Diesel

Pressure High Pressure

Application Sewage

easy operation, premium quality three cylinders mud pump

BW-160 mud pump

The BW-160 mud pump is a Horizontal single urn twin-action pump, It is mainly used to supply flushing fluid to the drilling well in engineering drill's bedrock drilling or exploratory drilling.

BW160 mud pump is small volume, light weight, easy operate and repair;

Type	Horizontal single urn twin-action
Liner Diameter	95 mm
Stroke	85 mm
Reciprocate Times	165 times/ minute
Displacement	160 L/min
Pressure	1.3 MPa
Input Power	5.88 KW
Water inlet caliber	45
Water to exit caliber	38
V-shaped belts (B*3)	310 mm
Input Speed	951 rotations/min
Mass (including the engine)	200 kg
Dimensions	1110725965 mm

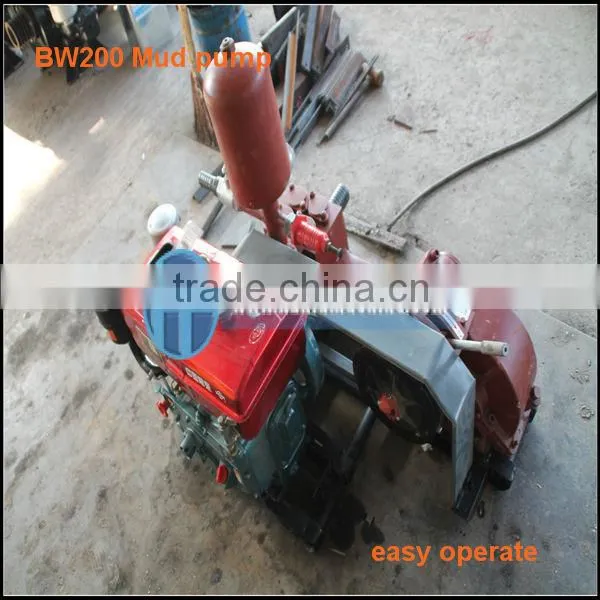

BW200 mud pump

BW-200 mud pump is horizontal double-acting reciprocating duplex piston pump.It is mainly used for feeding flushing fluid to feel drilling in core drilling process. It is lightweight,compact and is more suitable used in geological prospect.

To meet diamond drilling,BW-200 mud pump is fixed two-kind-diameter cylinder liner Φ80mm and Φ65mm,When the hole depth is 600m,we can use cylinder liner of Φ80mm,When the hole depth is 1000m,we use cylinder liner of Φ65mm.

Style	Horizontal
Type	Double-acting
Number of cylinder	Two
Cylinder liner diameter (mm)	80 65
Stroke(mm)	85
Reciprocate number (number/min)	145
Displacement(L/min)	200 125
Pressure(MPa)	4 6
Speed(r/min)	530
Pitch of belt pulley(mm)	385
Belt pulley	B type,five solts
Power(as per client's request)	295 type-diesel or motor
Suction pipe diameter(mm)	65
Scupper pipe diameter(mm)	37
Dimensions(L×W×H,mm)	1050630820
Weight(kg)	300

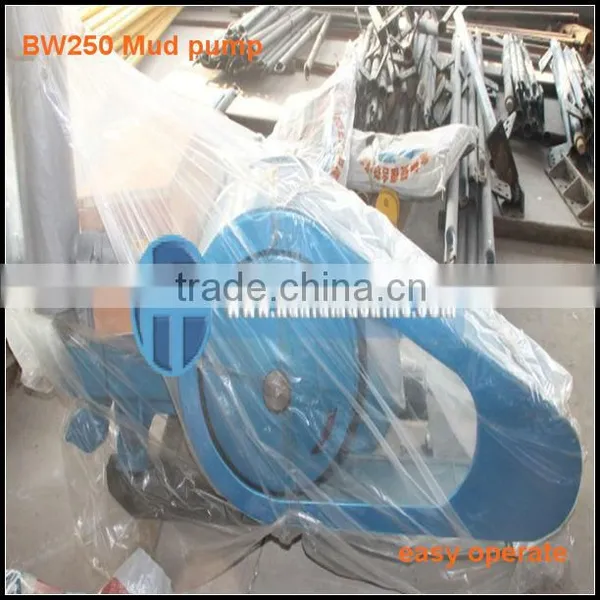

BW250 mud pump

Horizontal, three-cylinder single-acting, reciprocal piston pump, used to supply flushing fluid to the drilling well in engineer.

It can match 1500m drilling machine at the deepest, and it can also perfue slurry.

This pump is power saving, easy to operate, high quality and durable, easy to disassemble and relocate.

Stroke	100mm
Liner Diameter	80mm				65mm
Gears	I	II	III	IV	I	II	III	IV
Reciprocate Times(Times/Minute)	200	116	72	200	200	116	72	42
Displacement(liter/minute)	250	145	90	166	166	96	60	35
Pressure (MPa)	2.5	4.5	6.0	4.0	4.0	6.0	7.0	7.0
Dimension rate	85%
Power	15Kw
Triangular section belts	B× 5 410mm
Input speed	500r/min
Suction water height	2.5m
Suction Pipe Diameter	76mm
Discharge Pipe Diameter	51mm
Dimensions	1100× 995× 650mm
Weight	500KG
