Quality ensure!!New type!!HF138Y crawler type high pressure blasting hole drilling rig
- 150 Set / Sets per Month
- Qingdao Shanghai
- 3NB9/1.8-7.5 mining mud pump is used for providing cooling and flushing fluid during rock core or coal seam drilling
- 2NB3/1.5-2.2 mining mud pump is a vertical, double cylinder, single acting plunger pump
- The 3NB-250/6-15 reciprocating mud pump provides washout fluid to the borehole during core drilling with the three-cylinder plunger
- Coal mine tunnel drilling rig ZLJ350 head can be turned
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
Product Details
Condition: | New | Type: | Other | Power Type: | Diesel |
Place of Origin: | Henan, China | Brand Name: | HF crawler type DTH drilling rig | Model Number: | HF138Y crawler type DTH drilling rig |
Usage: | Water Well | Voltage: | 220V/380V | Power(W): | 45kw |
Dimension(L*W*H): | 5200*2030*2300mm | Weight: | 3800kgs | Certification: | CE certificate |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

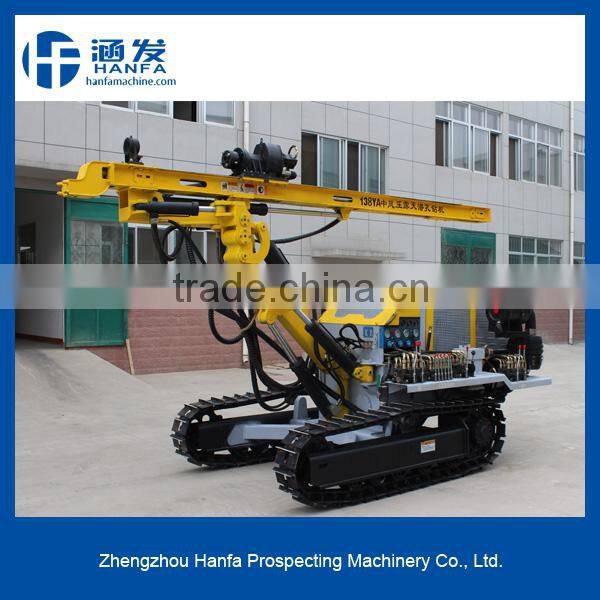

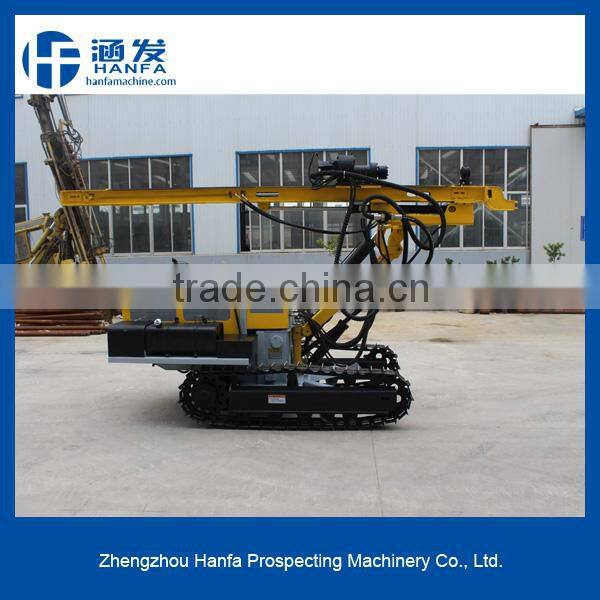

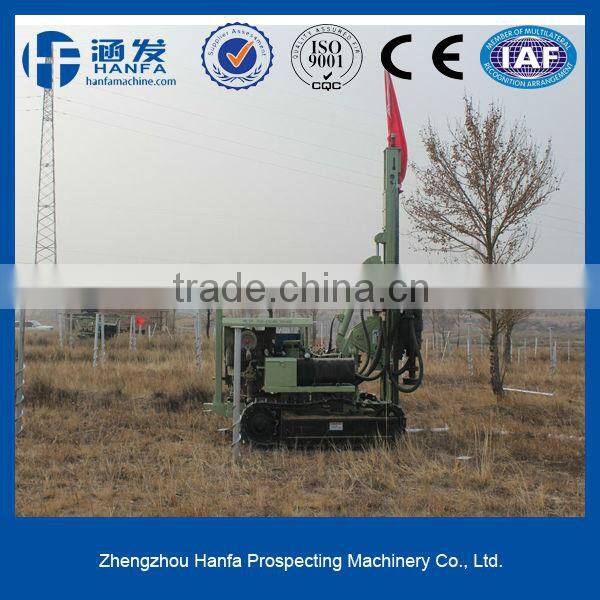

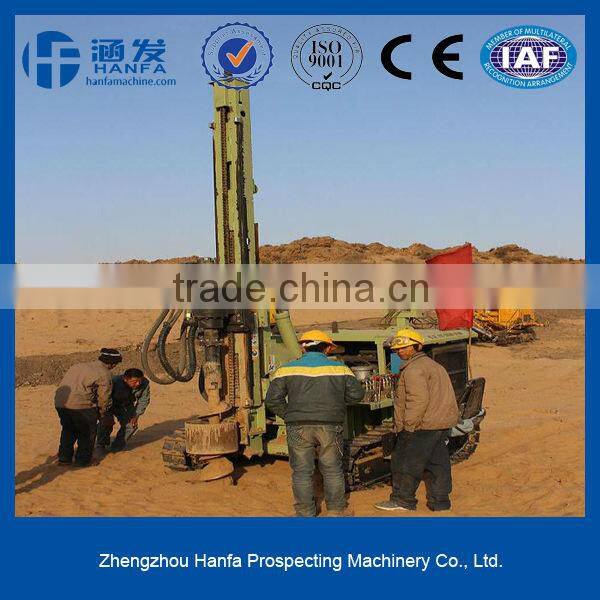

HF138Y crawler type high pressure blasting hole drilling rig
1. Application of HF series water well/core drilling rig
Since our establishment in 2004, we have been devoting ourselves to researching and developing easy-operation, highly-efficient and large-capacity drilling rigs.
2. technical parameters about this drilling rig
HF138Y type crawler hydraulic drilling rig, using a new hydraulic technology, with low air consumption rotary
torque, variable-bit-shift hole easy The drilling rig compact structure, while promoting a retractable sliding shelf
compensation, drilling when the sliding frame support on the ground, drilling and good stability.
Use 138Y rig reliable Chazzan efficient drilling in hard rock drilling rig as fast as 2 times the low
air pressure is the construction unit cost efficiency gains strong support.
The drilling rig is mainly suitable for open mining, water conservancy, power plants, road buildingand other
Rock blasting whole drilling.
Main technical parameters of HF138Y | |
Wind pressure (Mpa) | 0.7----1.6 |
Air consumption (m³/min) | 10----15 |
Drilling diameter (mm) | 90----130((max:203) |
Drilling depth (m) | level 40m,down 80m |
Once promotion distance (mm) | 3000 |
Drill diameter (mm) | 60 |
Skid compensation (mm) | 900 |
Maximum lift force (N) | 24900 |
Skid pitch (°) | up and down total 95 |
Swinging angle of skid (°) | Left 38, right 31 |
Boom Pitch (°) | up and down total 70 |
Boom swing angle (°) | Left 41, right 33 |
Grade ability (°) | 30 |
Chassis ground clearance (mm) | 260 |
Travelling speed (km/h) | 2 |
Back to the transit speed (r/min) | 0----80 |
Rotary torque (N.m) | 2000 |
Host Power (Kw) | 45 |
For rock (f) | 6----20 |
Impact frequency (r/min) | 950---1500 |
Total Weight (kg) | 3800 |
Dimension (L * W * H) | 5200*2030*2300 |
Note: The Company’s products continued to improve; various design and technical specifications
may change at any time, without any additional notice or obligation.
