Medium and Large Depth Borehole Drilling Rig HF-7, Hydraulic System
US$ 32,099 - 45,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
HF-7 Borehole Drilling Equipment for Shallow Oil and Natural Gas Exploration and ExploitationUS$ 32,099 - 45,000MOQ: 1 Set -
HF-7 Hydraulic Borehole Drilling Machine for Mineral Deposits ProspectingUS$ 32,099 - 45,000MOQ: 1 Set
-
HF-7 Wire-line Coring Drilling Rig,which Can Drill 2200mUS$ 32,099 - 45,000MOQ: 1 Set
-
HF-6A Borehole Drilling Equipment, Piling RigUS$ 18,000 - 29,000MOQ: 1 Set
-
Very Economical Borehole Drilling Rig HF-6A, Trailer TypeUS$ 18,000 - 29,000MOQ: 1 Set
Condition
New
Type
Core Drilling Rig
Power Type
Diesel
Place of Origin
Henan, China
Brand Name
Hanfa
Model Number
HF-7
Usage
Other, minera deposite, core drilling
Power(W)
177
Dimension(L*W*H)
3260 x 1280 x 2290mm
Certification
CE, ISO
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
borehole drilling rig1.large range, reasonable speed
2.Large capacity of power unit
3.Large output torque
4.hydraulic
Medium and large depth borehole drilling rig HF-7, hydraulic system
I.Advantages of borehole drilling rig HF-7:
1.large range and reasonable drilling speeds
2.Large capacity of power unit
3.Large output torque
4.Hoister in horizontal arrangement
5.equip with hydraulic brake, braking easily and quickly
II. Application of borehole drilling rig HF-7:
Metallic and nonmetallic solid mineral deposits prospecting; shallow oil and natural gas exploration and exploitation; geothermal well exploitation, mine ventilation and drainage ; also for large hole diameter basic pile construction. The drilling rigs can be widely used in geology, metallurgy. Coal, hydrogeology well and engineering and other industries fields
III. Technical parameter of borehole drilling rig HF-7:
| Unity machine parameter | ||
| Drilling depth | 600-2200m | |
| Drill Rod made in China | Φ50 x 4.75 | 2200m |
| Φ50 x 5 | 2000m | |
| Φ60 x 6 | 1450m | |
| Φ71 x 5 | 1659m | |
| Φ73 x 7 | 1000m | |
| Φ89 x 5 | 1300m | |
| Φ89 x 10 | 600m | |
| Internally Thickeded Drill Rod | BW | 2200m |
| NW | 1700m | |
| HW | 1150m | |
| Wireline Coring Drill Rod | BQ | 2200m |
| NQ | 1700m | |
| HQ | 1150m | |
| PQ | 800m | |
| BCQ | 2500m | |
| NCQ | 2000m | |
| HCQ | 1550m | |
| Power | Electric motor | Y250M-4 56KW 1500r/min |
| Diesel Engine | 6BT5.9-85 85KW 2000r/min | |
| Drilling angle | 90° ~75° | |
| Drill machine moving stroke | 500mm | |
| Dimension | 3260 x 1280 x 2290mm | |
| Weight ( power not included ) | 3350kg | |
| Spindle | ||
| Spindle Bore Diameter | 118mm | |
| Spindle stroke | 800mm | |
| Spindle max. torque | 7500N.m | |
| Spindle max. lifting capacity | 180kn | |
| Spindle max. pressure force | 120kn | |
| Spindle Speed Electric motor 1500r/min | Forward Rotation | 41; 70; 122; 155; 178; 265; 268; 469; 681; 1016r/min |
| Backward Rotation | 41; 156r/min | |
| Spindle Speed Diesel Engine 200r/min | Forward Rotation | 54; 94; 163; 207; 237; 353; 358; 625; 908; 1355r/min |
| Backward Rotation | 54; 207r/min | |
| Hoist | ||
| Max.single line hoisting capacity | 60KN | |
| Wirerope caliber | 20mm | |
| Roller capacity of wireline length | 102m | |
| Single line lifting speed | Power rotation Speed 1500r/min | 0.438; 0.758; 1.322; 1.921; 2.865m/s |
| Power rotation Speed 2000r/min | 0.584; 1.011; 1.762; 2.560; 3.820m/s | |
| Transssion gearbox | Auto gearbox | |
| Hydraulic oil box | ||
| Duplex gear oil pump | CBY2032/K1020 | |
| Displacement | 32/16 ml/r | |
| Work pressure | 20 Mpa | |
| Max. pressure | 25 Mpa | |
| Water brake | ||
| Work rotation speed | 700-1800r/min | |
| Single line balance speed | 3-8m/s | |
| Single line balance load | 45KN | |

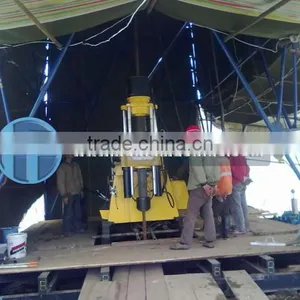

Project case of borehole drilling rig
