piling rig HF-30 for sale!!!!
- 15 Set / Sets per Month
- Qingdao Tianjin Shanghai
- T/T
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
- HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
- 50m Depth Core Drilling Rig Portable Diamond in Mountain
- TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
- 1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
Condition: | New | Type: | Rotary Drilling Rig | Place of Origin: | Henan, China |
Brand Name: | Hanfa | Model Number: | HF-30 | Usage: | Other, piling |
Certification: | CE ISO | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
piling rig1.360 degree full revolution
2.Flexible,easy moving
3.Convenient
4.No shock,noise or pollution

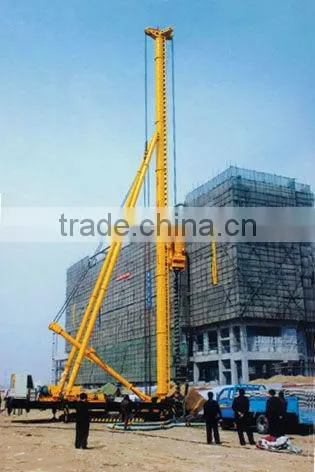

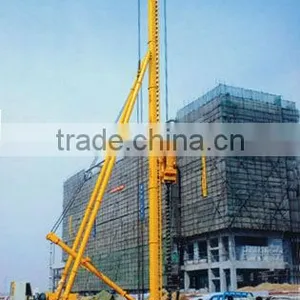

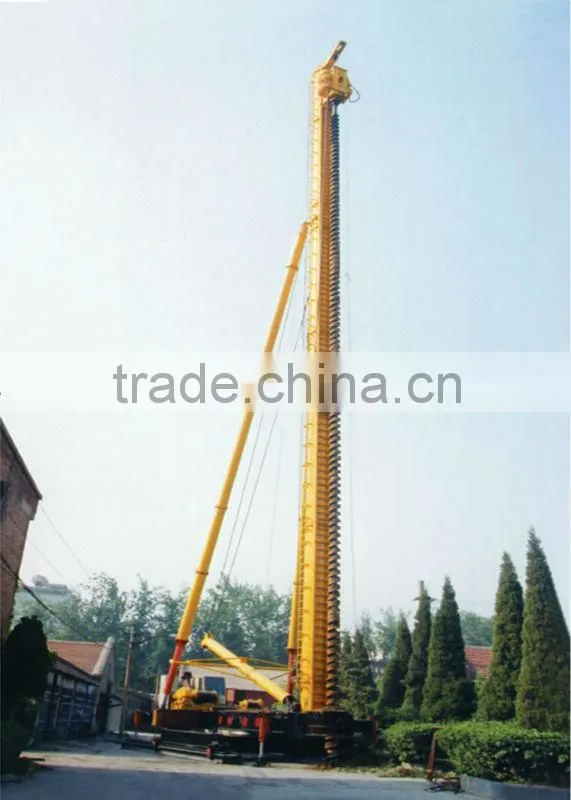

piling rig HF-30
This kind of product is a new product researched by the company since 1999.This series of piling rig consists of the pile holder and drilling system.
The chasssis of pile holder applies full hydraulic type travel,
the hydraulic motor drive revolution support realizes the 360 °full revolution.With four hydraulic end frames,the drilling machine can realize the travel and increase the complete machine stability for construction.The lifting support applies the operation mode of combining the hoisting and builtin oil cylinder,
being stable,safe,reliable and shortcut.
The complete machine applies convenient semi disassembly pull transport;the drilling tool system applies three ring decelerator 110kw power unit,flange key screw drill rod,and aiguille adaptable to different stratums.The drilling machine,as ideal civilized construction machine for pile foundations of industrial and civil building,can be used for long screw,slip casting method and ultra flow form construction,being vibration,noise and pollution free,with high pore forming efficiency and good pile formation quality.
Main Technical Parameter or HF-30 caterpillar type piling rig
Model | HF-30 | |||
Drilling Diameter (mm) | 400 | 600 | ||
Drilling depth (m) | 30 | 30 | ||
Power Unit | power( kW) | 55 × 2 | ||
| rotation (r/min) | 24.2 | ||
| torque (kN.m) | 43.4 | ||
Allowable drill drawingout force (kN) | 400 | |||
Pile holder Mass (t) | 60 | |||
Column tilt range | Front12 ° Bacj 3 ° | |||
Ground pressure (Mpa) | 0.045-0.35 | |||
Walking speed (m/min) | 4.5 | |||
Rotation speed (r/min) | 0-0.5 | |||
Rotation angle | 360 ° | |||
Caterpillar length(m) | 3.0 | |||
Max. Allowable slope of the ground work | 2 ° | |||
Overall dimension (m) | 13.5 × 6 × 36 | |||
Configurable multi-axis vibration hammer drill continuous wall | Below 120kW |
