0~90 degree rock drilling! HF138Y DTH blast hole drilling machine
- 20 Set / Sets per Month
- Qingdao Tianjin Shanghai
-
China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
-
100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
-
HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
-
50m Depth Core Drilling Rig Portable Diamond in Mountain
-
TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
-
1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
| Condition: | New | Type: | Other, DTH drilling rig | Power Type: | Diesel |
| Place of Origin: | Henan, China | Brand Name: | Hanfa | Model Number: | HF130Y |
| Usage: | Other, blasing holes,anchoring,open mining | Power(W): | 45KW | Dimension(L*W*H): | 5200*2030*2300 |
| Weight: | 3800kg | Certification: | ISO,CE | Warranty: | one year quality warranty |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
HF138Y DTH blast hole drilling machine1.level 40m, down 30m
2.90-130mm diameter
3.f=6-20
4.easy to operate

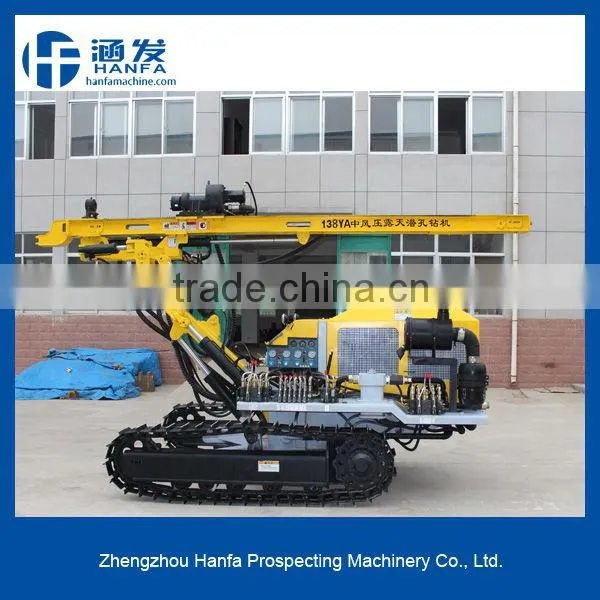

0~90 degree rock drilling! HF138Y DTH blast hole drilling machine
Specifications
HF138Y type crawler hydraulic drilling rig, using a new hydraulic technology, with low air consumption rotary torque, variablebit shift hole easy
The drilling rig compact structure, while promoting a retractable sliding shelf compensation, drilling when the
sliding frame support on the ground, drilling and good stability. Use HF138Y rig reliable Chazzan efficient drilling in hard rock drilling rig
as fast as 2 times the low air pressure is the construction unit cost efficiency gains strong support.
The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock blasting whole drilling.
Technical Parameters:
Main technical parameters | |
Wind pressure (Mpa) | 0.7----1.6 |
Air consumption (m³/min) | 10----15 |
Drilling diameter (mm) | 90----130((max:203) |
Drilling depth (m) | level 40m,down 80m |
Once promotion distance (mm) | 3000 |
Drill diameter (mm) | 60 |
Skid compensation (mm) | 900 |
Maximum lift force (N) | 24900 |
Skid pitch (°) | up and down total 95 |
Swinging angle of skid (°) | Left 38, right 31 |
Boom Pitch (°) | up and down total 70 |
Boom swing angle (°) | Left 41, right 33 |
Grade ability (°) | 30 |
Chassis ground clearance (mm) | 260 |
Travelling speed (km/h) | 2 |
Back to the transit speed (r/min) | 0----80 |
Rotary torque (N.m) | 2000 |
Host Power (Kw) | 45 |
For rock (f) | 6----20 |
Impact frequency (r/min) | 950---1500 |
Total Weight (kg) | 3800 |
Dimension (L * W * H) | 5200*2030*2300 |
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation.
