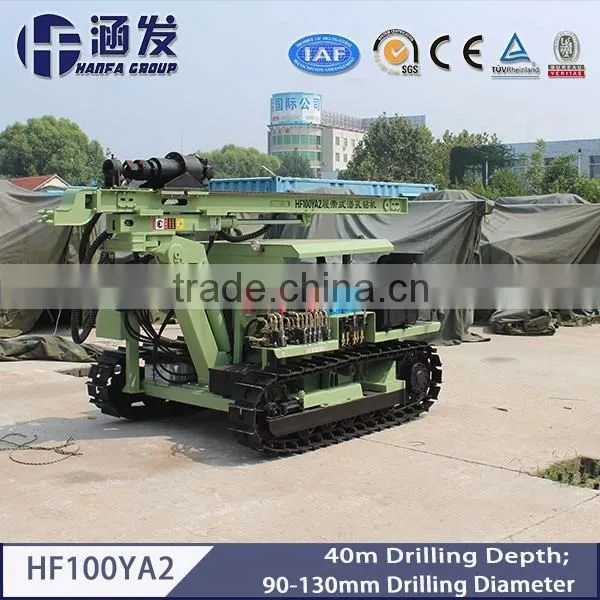

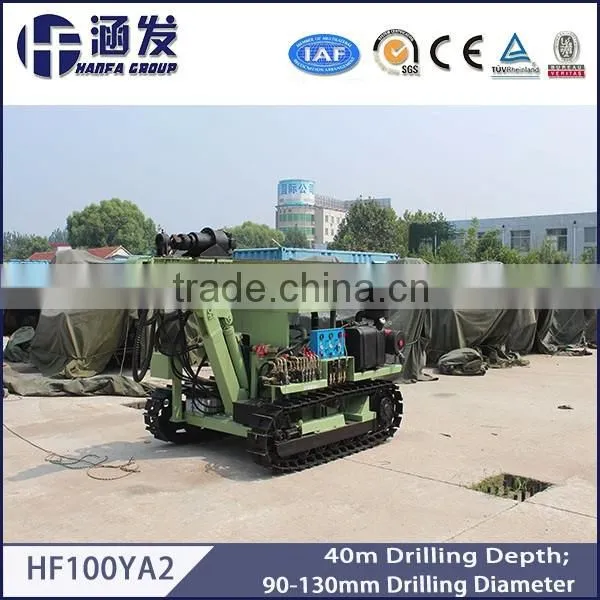

HF100YA2 DTH Drilling Rig for Sales
Main features:

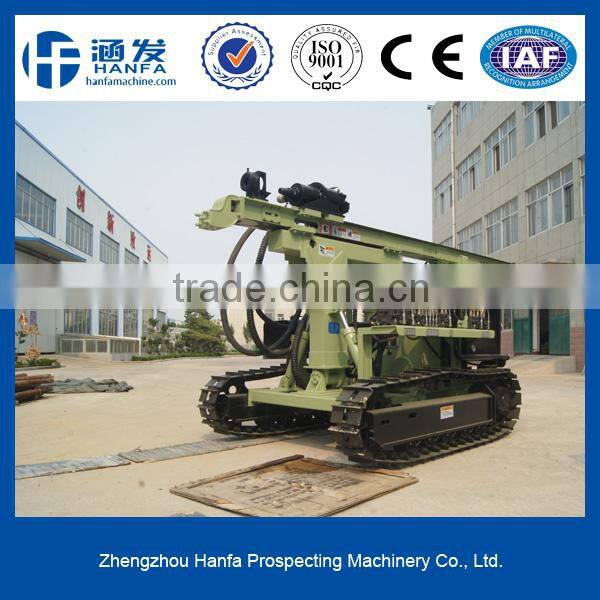

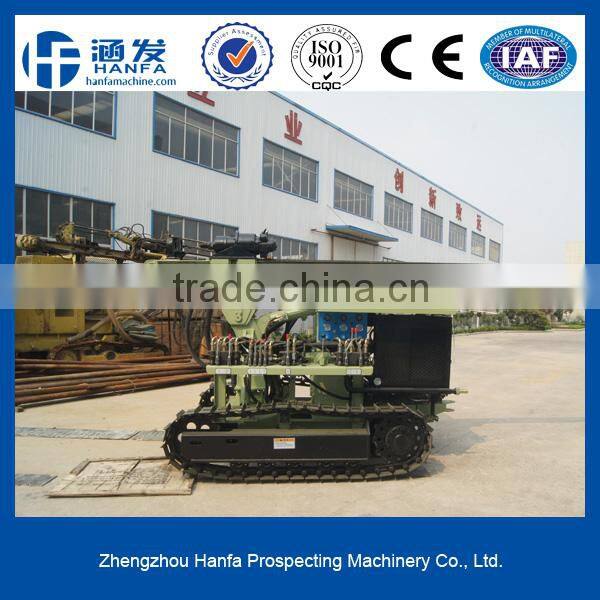

HF100YA2 crawler hydraulic drilling rig, using a new hydraulic technology, with low air consumption rotary torque, variable-bit-shift convenient hole the drilling rig structure compact, the smallest turning radius of only 2.8m, while promoting a retractable sliding shelf compensation, drilling hole when the sliding frame support on the ground, drilling and good stability.
The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock drilling blasting holes.
Technical parameter :
Total Weight(kg) |
2800 |
Drilling diameter(mm) |
90---130 |
Dimension (L * W * H)(mm) |
4100*2030*2020 |
Drilling depth (m) |
30-40 |
Traveling speed(km/h) |
2 |
Once promotion distance(mm) |
2000 |
Grade ability(°) |
30 |
Working pressure(mpa) |
0.7—1.4 |
Chassis ground clearance(mm) |
260 |
Air consumption(m³/min) |
7--15 |
Skid pitch(°) |
up and down total 100 |
Host Power(kw) |
33 |
Sliding tilt swing(°) |
Left 35, right 10 |
For rock(f) |
6--20 |
Skid compensation(mm) |
900 |
Impact frequency (r/min) |
840 |
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation. | |
All the time, "Client first, Service best" is Hanfa's principle.
Your satisfaction is our eternal pursuit.
Communication with the overseas customers ----- DTH Drilling Rig
Quality guarantee----- Drilling Rig
Our products has been authorized and certified by TUV and ISO9001:2008. We provide each machine one-yearquality warranty after the trial run (excluding the wearing parts), except the machines sold more than15 months.

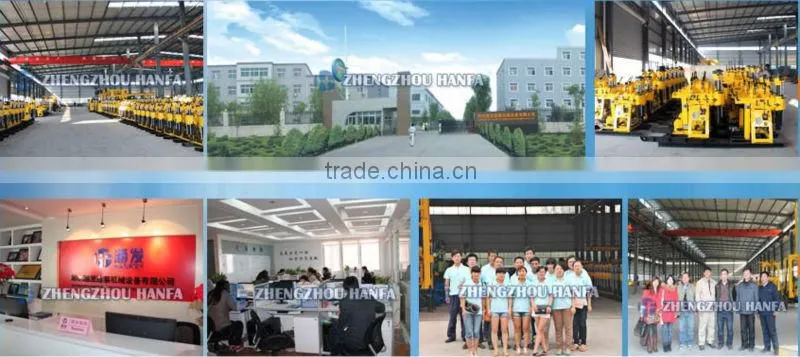

Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market. Presently, it has three subsidiaries which are zhengzhou Hanfa Prospecting Machinery Co.Ltd. It has experienced engineers, professional R&D team, special after service team, world class sophisticated equipment and advanced technology guarantee the best quality drilling equipments and best service to its customers. As well we have more than 20 species such as core drilling rig, rotary driling rig, brunt counter circulation drilling machines and hydrology water-well drilling machines.
Our company has passed ISO9001: 2008 quality administrative system certification. Our products have a vast market in foreign countries such as Southeast Asia, South America, Africa and other countries and regions. And the excellent capability, perfect service and eminent quality help Hanfa gain the general recognition both from domestic and overseas users.
Our company implement the corporate culture of "integrity, diligence, strict, profession and efficiency". We are always ready to provide you with best quality, reasonable price and perfect service system in order to establish close, trustworthy and long-term relationship with each customers. If you are interested in our products, please contact us and we will make every effort to give our hand.
1,Are you trading company or manufacturer?
We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2,Are your products qualified?
Yes, our products all have gained ISO certificate, and we have specialized quality inspection department for checking every machine before leaving our factory.
3,How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4,Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5,What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6,How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
