Gold supplier China crawler water well drilling rig
Introduction

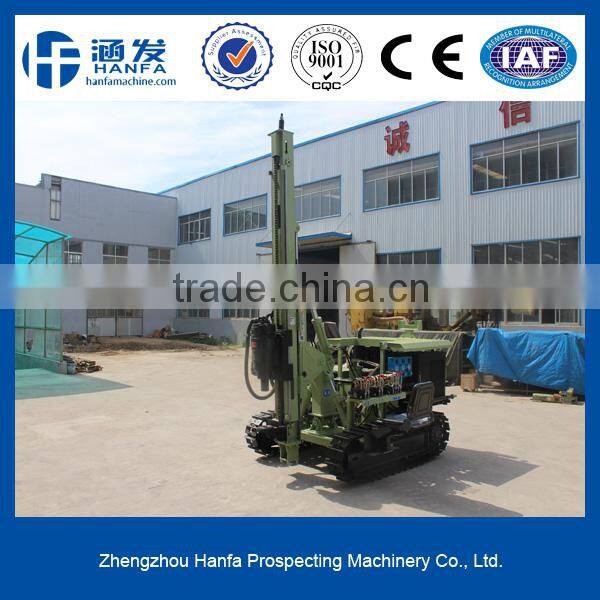

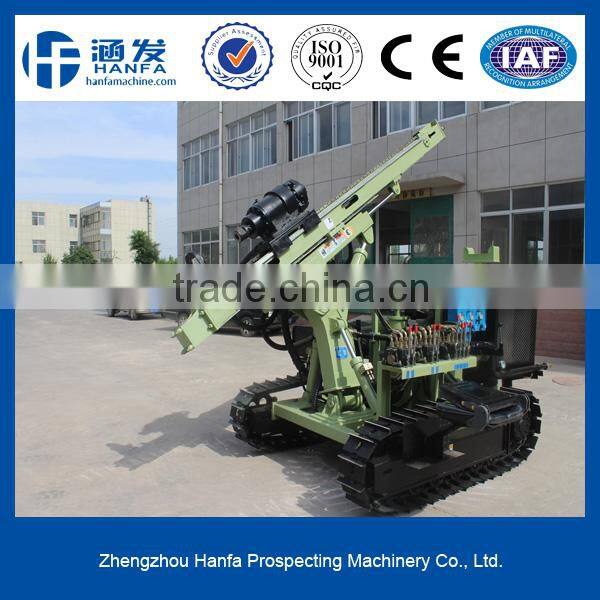

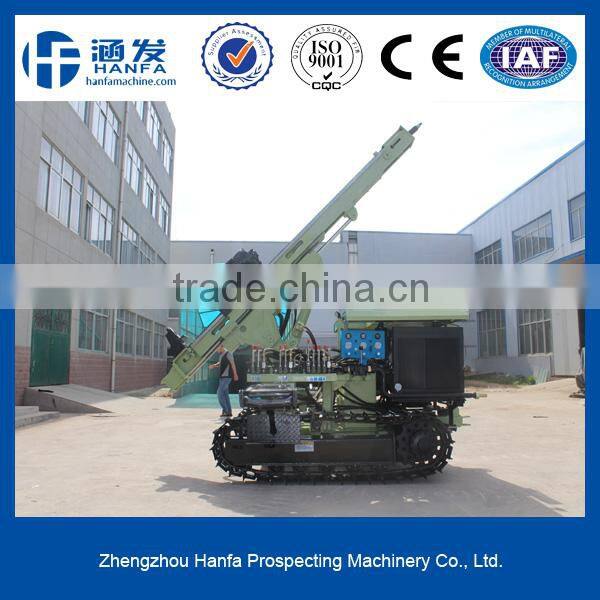

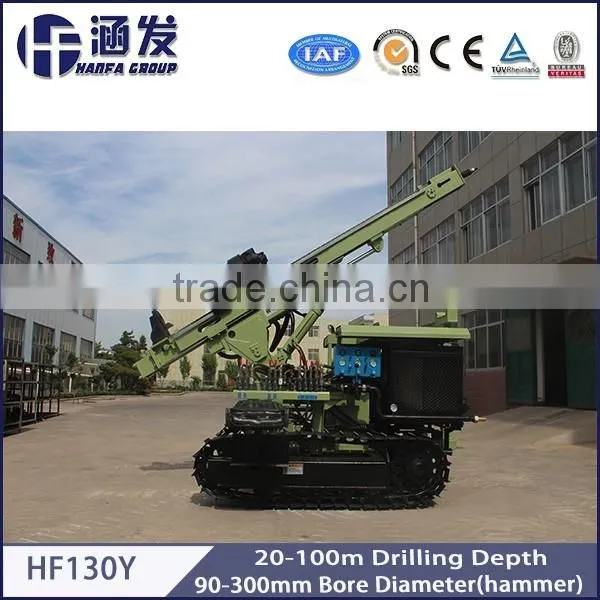

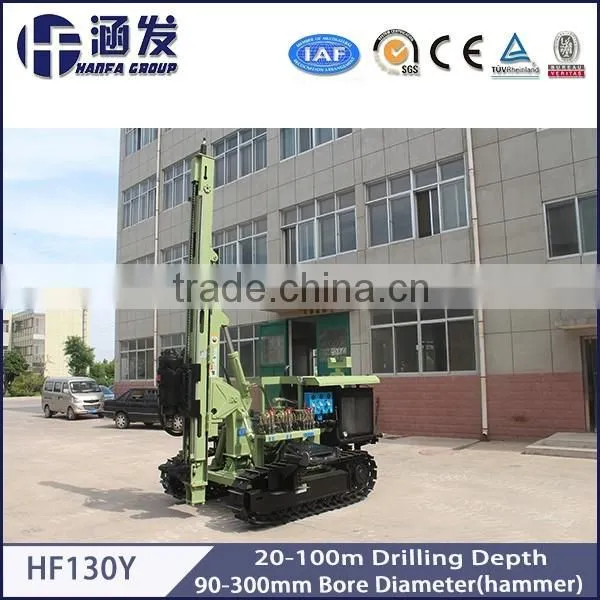

HF130Y hydraulic crawler drill rig, using new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection . The drilling machine structure is compact,.while the mast has adjustable compensation function.when drilling, the mast supported on the ground, borehole stability is good. HF130Y drilling rig has reliable performance, high efficiency, suitable for operating conditions.It also reduce costs and improve the efficiency
The drilling rig is mainly used for piling anchor, water Wells, photovoltaic solar spiral pile, DTH blasting construction, etc. The Technical parameters as follow:.
Main technical parameters
Bore diameter(hammer) |
90-300mm |
Bore depth |
20-100m |
Air consumption |
10-26m³/min |
Air pressure |
0.7-1.6Mpa(medium) 1.6-2.46Mpa(high) |
Pipe diameter |
76mm/89mm |
For rock |
F=6-20 |
Torque |
5600NM |
Bore diameter(screw) |
Max 400mm |
Bore depth |
0-30m |
Screw pipe diameter |
130-400mm |
Once promotion |
2000mm |
Skid pitch |
100° |
Swinging angle of skid |
Left and right total 40° |
Rotation speed |
0-70r/min |
Host power |
56Kw |
Climb ability |
35° |
Dimension(L*W*H) |
4460*1950*2460(mm) |
weight |
4360Kg |
Walk speed |
0-2.5km/h |
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation. | |

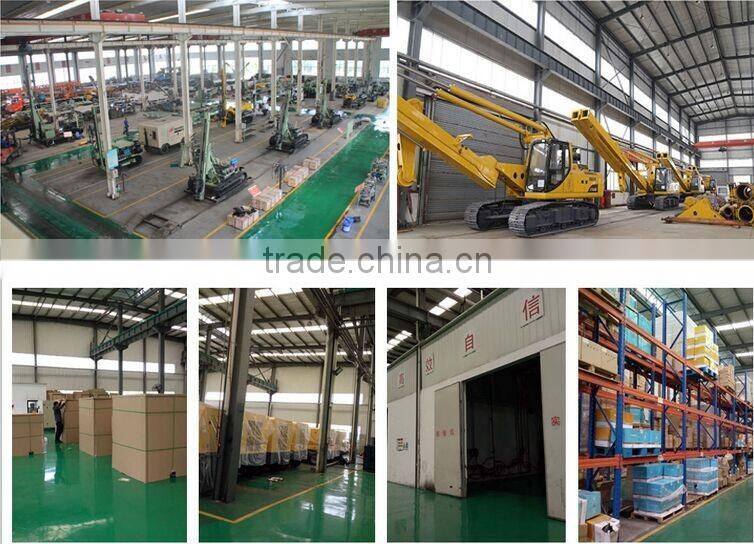

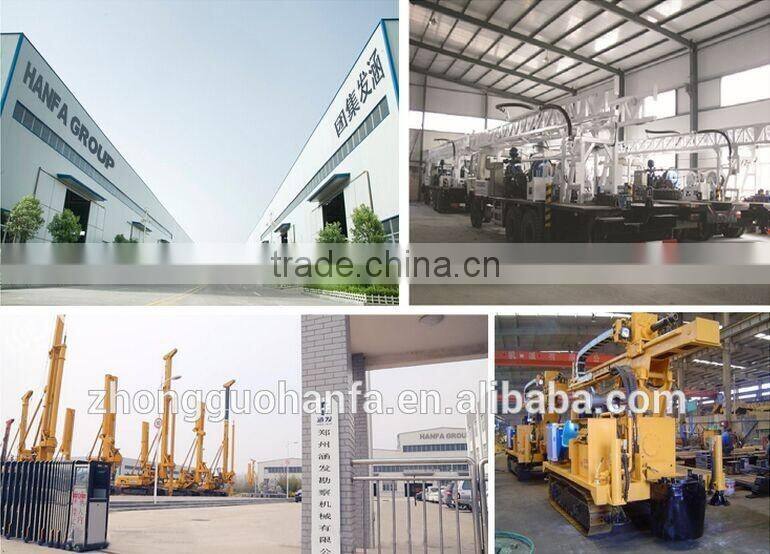

Hanfa Group established in 1998 is a key enterprise in the industry of geological exploration and water well field, with the ability to research, manufacture and market.Now, the Group pursues high standard manufacturing and qualified products. It has more than 20 species such as water well drilling rig,core drilling rig,DTH drilling rig,rotary drilling rig,engineering drilling rig, hydraulic underground drilling rig, full hydraulic directional drilling rig,etc. These machines are mainly used in geological prospecting, exploration of railway and highway engineering, mining, SPT, water well, geothermal well etc. Some of them won the Scientific and Technical Advance Prize or the National Scientific Research Achievement Prize. All the products have passed the quality system certification of ISO9001:2000 and are national inspection-free products.
HANFA GROUP have exported to more than 60 countries,our customers applaud the manufacture quality.We welcome the friend who come from all parts of the world sincerely, we will make great efforts to offer better products to customer.HANFA GROUP also welcome our friends to visit our factory and inspect our products.Cooperation or not,you still our friend,you will feel you just stay at home when you come to our factory.Welcome your coming!
HANFA have participated in China, kazakhstan, Chile, Africa, Canada and other countries large-scale exhibitions, the products were praised by local people.HANFA was interviewed by local TV many times.On the day of the exhibition,countless order has been signed successly.
