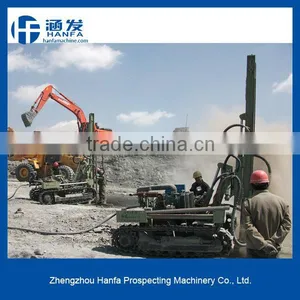

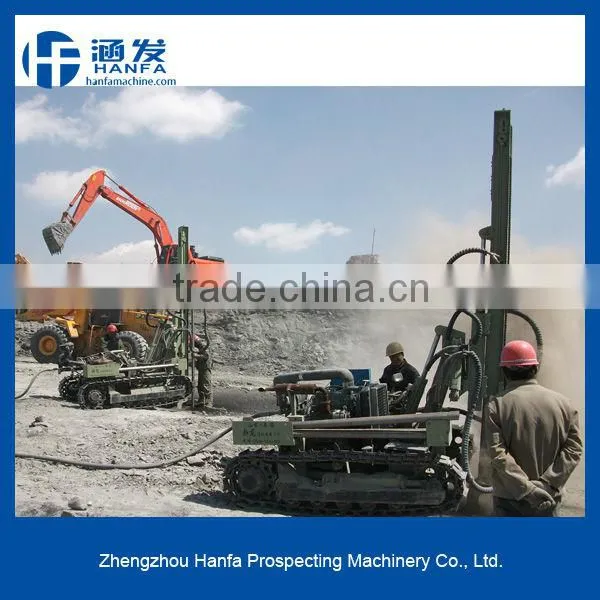

For opening mining~ HF100YA2 anchoring drilling machine

FOB Price

USD $15,000 - $18,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port Qingdao Tianjin Shanghai

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Other, DTH Drilling Rig
Power Type	Diesel	Place of Origin	Henan, China
Brand Name	Hanfa	Model Number	HF100YA2
Usage	Other, opening mines, blasting holes, bore holes	Power(W)	22KW
Dimension(LWH)	410020302020	Weight	2800kg
Certification	ISO,CE	Warranty	one year quality warranty
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Specifications

For opening mining~ HF100YA2 anchoring drilling machine
1.30m depth,130~90mm diameter
2.for opening mining
3.hydraulic system

For opening mining~ HF100YA2 anchoring drilling machine

Specifications

HF100Y2 crawler hydraulic drilling rig, using a new hydraulic technology, with low air consumption rotary torque, variable-bit-shift convenient hole, the drilling rig structure, a compact, the smallest turning radius of only 2.8m, while promoting a retractable sliding shelf compensation. When drilling, the sliding frame support on the ground, have good stability.

The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock drilling blasting holes.

Features:

1.Rotary structure can be low, medium and high-speed switching, perforation of the work to meet the needs of the different rock

2.Double-pump reduces the pump using the failure rate and maintenance costs

3.Walking with high torque agencies to ensure a strong power output

4.Enhance and promote organizations to adopt the fuel tank of the completion of reliable

HF100YA2 DTH Drilling Rig Technical Parameters:

Total Weight (kg)	2800
Drilling diameter (mm)	90---130
Dimension (L * W * H) (mm)	410020302020
Drilling depth (m)	30 (max:40)
Travelling speed (km/h)	2
Once promotion distance (mm)	2000
Grade ability (°)	30
Working pressure (mpa)	0.7—1.4
Chassis ground clearance (mm)	260
Air consumption (m³/min)	7--15
Skid pitch (°)	up and down total 100
Host Power (kw)	33
Sliding tilt swing (°)	Left 35, right 10
For rock (f)	6--20
Skid compensation (mm)	900
Impact frequency (r/min)	840
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation.
