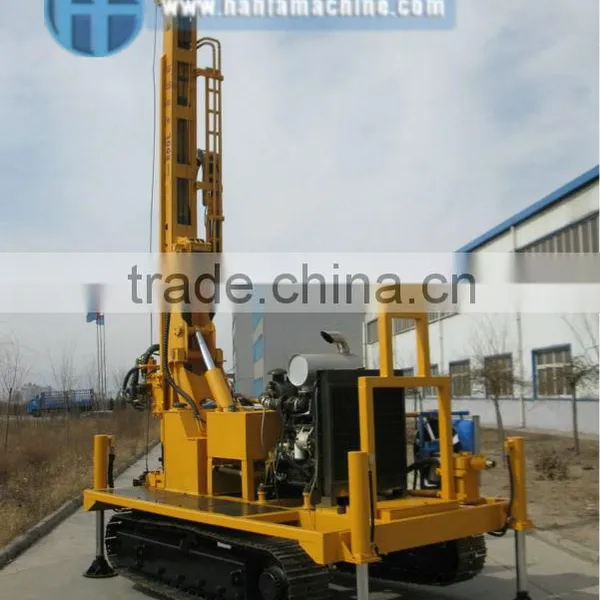

HF-400L multifunctional drilling rig, DTH drilling machinery
- 10 Set / Sets per Month
- Qingdao Tianjin
- China Xy-200 Water Well Drill Rig Machine for Soil and Rock Drilling
- 100 Meters Xy-1A Water Well Drilling Rig Machine Equipment
- HY-50H Small Domestic Hydraulic Water Well Drilling Rig of China
- 50m Depth Core Drilling Rig Portable Diamond in Mountain
- TSP core bit, BQ NQ HQ PQ core drill bits, HWL, wireline core barrels, diamond coring bits, hard formation, deep hole rock core recovery
- 1.5M 3M inner tube assembly, wireline core barrels, head assembly, impregnated diamond drilling, hard formation coring, deep hole rock core recovery
Product Details
Condition: | New | Type: | Rotary Drilling Rig | Power Type: | Diesel |
Place of Origin: | Henan, China | Brand Name: | HF DTH drilling machinery | Model Number: | HF-400L DTH drilling machinery |
Usage: | Water Well | Voltage: | 220V/380V | Power(W): | 22kw |
Dimension(L*W*H): | 9400*2100*3200mm | Certification: | ISO CE | Warranty: | one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

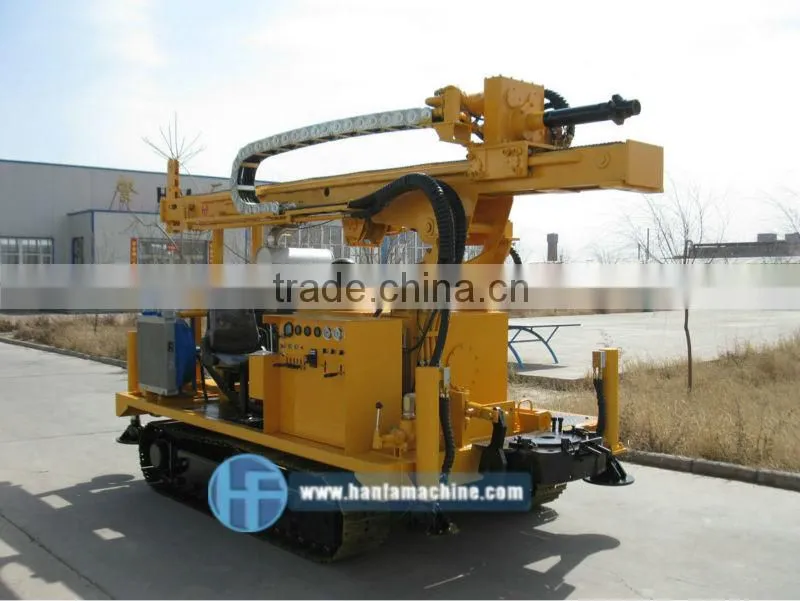

HF-400L multifunctional drilling rig, DTH drilling machinery
HF-400L multifunctional drilling is a kind of medium, high efficiency, novel multifunctional hydraulic crawler rig, the rig is widely used in drilling wells, gas wells and other large drilling engineering construction, and can also be suitable for mine rescue rig, mining blasting hole, foundation pile hole construction, the unique design of hydraulic drilling rig, superior in large imported drilling rigs.
The rig is a unique patented products: top drive rotary power head and a hydraulic rotary disk rotating mechanism, hydraulic motors, hydraulic winch chain propulsion for deep hole drilling in institutions and mast. New drilling technology, the drilling machine with cone drilling, mud reverse circulation drilling technology, compressed air DTH hammer drilling technology, can finish cover layer, sand gravel, sand, rock layer stratum, large diameter deep hole construction. The drill, drill pipe rack lift unloading, leveling supporting legs, lifting, walking and other auxiliary movement by the hydraulic system, not only can improve the working efficiency, and reduces the labor intensity of operators.
Characteristics >>
* Guide lane matches with roller skate, it can reduce the sliding resistance,and also reduce friction and improvethe lifetime of extension guide.
* Hydraulic power head and a hydraulic rotary disc motor chain, drilling and hydraulic winch binding, new drilling method, reasonable power matching.
* Set covering layer, stratum two kinds of method in one construction drill
* Travelling to tracked self-propelled structure, optional6x6heavy truck to car type well drilling.
* The rig is very convenient with air compressor and DTH hammer, using compressed air DTH hammer drilling technology, complete the bedrock drilling operation.
* The rig is equipped with patent technology hydraulic rotary disk, mud pump, hydraulic winch, the mud can be completed normal circulation drilling technology.
* Drill carriage slipway and roller skate matching,Namely, reduce sliding resistance, and reduce the slide wear. To extend the service life.
* Two-speed hydraulic regulation is used in rotary,trust,lifting,shall make drilling specification more match with well working situation.
* Hydraulic system equipped with separate air-cooled hydraulic oil cooler,and can optional install water cooler to ensure hydraulic system keep continuous and efficient operation under the high-temperature weather conditions of different regions.
* Four strengthened hydraulic jacks can become selfloading system, to ensure rotation easy and save lifting costs.
Specifications:
Kw | Engine power | 160 |
M | Max.drilling depth | 400 |
Mm | Borehole diameter | Rock layer200-350,soil layer500-1000 |
Mpa | Working air pressure | 1.05-2.46 |
m3/min | The total gas consumption | 16-30 |
m/h | Drilling efficiency | 10-25 |
m | Length of drill rod | 6 |
mm | Drill pipe diameter | 108 |
mm | The driven rod | 108*108 |
KN | Axial pressure | 200 |
KN | Lifting force | 200 |
KN | Hydraulic hoist | 200 |
m/min | Slow down,slow speed | 9.2 |
m/min | Rise fast,fast forward speed | 50 |
Nm | Power head of rotary torque | 13000 |
Nm | Lower rotary hydraulic turntable | 40000 |
r.p.m | Rotary speed | 0-50,0-100 |
L/min | Hydraulic mud pump | 400 |
KW | Equipped with generators | 22 |
Km/h | Walking speed | 3 |
° | Climbing ability | 20 |
KN | Host weight | 14500 |
mm | Mainframe exterior size | 9400*2100*3200 |
