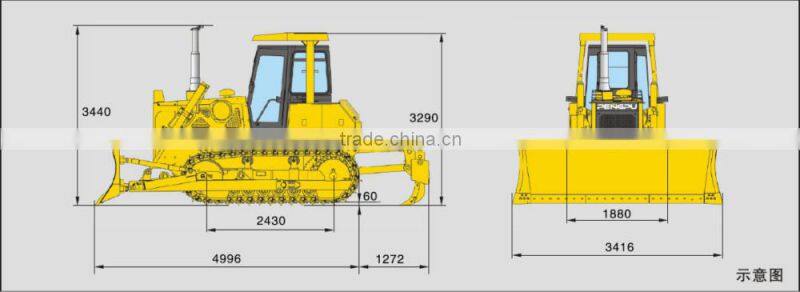

high quality competitive bulldozer price of HF165Y
1. Strong power engine: ShangChai C6121ZG05C(CAT3306)
2. Reasonable bulldozer price
3. Weight: 17860kg
high quality competitive bulldozer price of HF165Y
Main features
1.the appearance of the vehicle is based on optimization design;
2.High engine power reserve, strong torque output, low fuel consumption, reliable controls;
3.Hydraulically powered, automatic speed change,shift change,shift the gears without stop the vehicle;
4.Three elements,single stage and single phase torque convertor features high efficiency and capacit;.
5.The updated hexahedral cab features outstanding visibility and good tightness;
6.New blade is more durable and capacious;
7.Reliable manual-operated spool value and external mounted valve for easy maintenance.
Specifications of high quality competitive bulldozer price of HF165Y
Engine
Model |
ShangChai C6121ZG05C(CAT3306) |
Type |
Straight vertical,four-stroke, water cooling,direct injection type |
Flywheel power(km) |
122 |
Rated speed(r/min) |
1850 |
Starting method |
24V,7.5KMelectric starting motor 24V, 7.5KM |
Min fuel consumption ratio(min) |
208g/km.h |
Track
type |
Sealed and lubricated single grouser or sealed single grouser |
Track pinch(mm) |
203.2 |
Track width(mm) |
560(510) |
Number of track shoes(each side) |
37 |
Length of track on the ground(mm) |
2430 |
Ground clearance(mm) |
400 |
Track gauge(mm) |
1880 |
Travel speed
1st |
2nd |
3rd |
|
forward |
3.8 |
6.6 |
10.6 |
reverse |
4.9 |
8.5 |
13.6 |
Under carriage
Sprocket |
segmented |
Number of track rollers(each side) |
7(3 single, 4double) |
Track tension |
Hydraulic-adjusted |

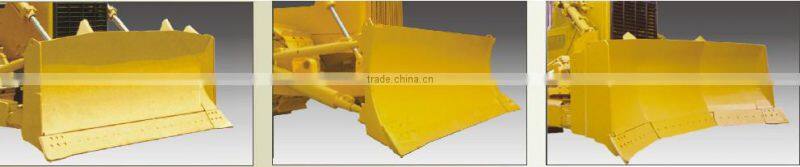

Blade type |
Straight tilt blade |
Angle |
U dozer |
Width x height(mm) |
3416X1150 |
4050x1050 |
3350x1150 |
Max.lift above ground(mm) |
1090 |
1110 |
1090 |
Max.drop bellow ground(mm) |
530 |
530 |
530 |
Pitch adjustment(°) |
55 |
55 |
55 |
Max.Tilt(mm) |
860 |
/ |
860 |
Blade capacity(m³) |
4.5 |
4.5 |
5.6 |

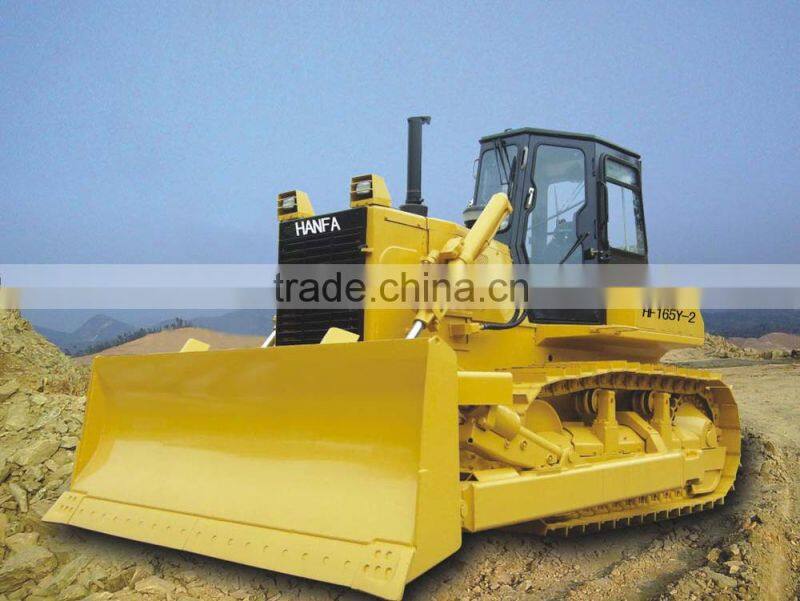

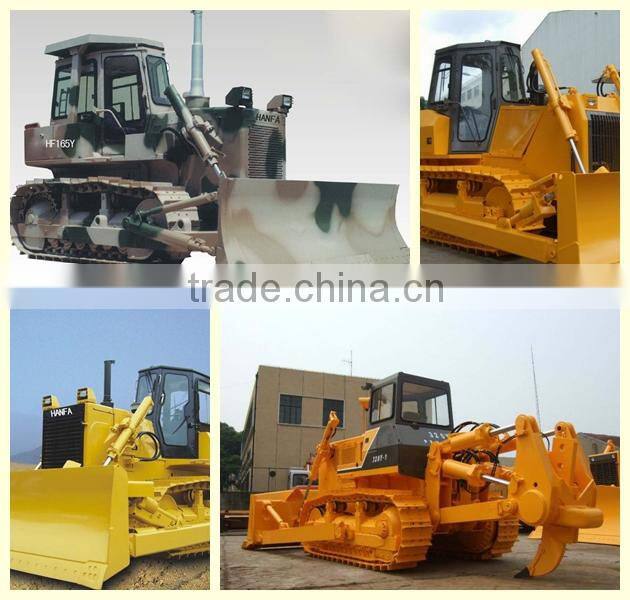

Photos of high quality competitive bulldozer price of HF165Y
Our products has been authorized and certified by TUV and ISO9001:2008. We guarantee the quality of the machines for one year after the trial run (excluding the wearing parts), but not exceeding 15 months from the date on which machines leave the factory.
1,Are you trading company or manufacturer?
We are professional manufacturer,. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.
2,Are your products qualified?
Yes, our products all have gained ISO certificate, and we have specialized quality inspection department for checking every machine before leaving our factory.
3,How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.
4,Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.
5,What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.
6,How long can you deliver the machine?
Generally, we can deliver the machine in 15 days.
We supply all types of Hanfa bulldozers with the model of HF410Y, HF320Y, HF220Y, HF220YS, HF165Y-2, HF165YS and HF140-3.
As a professional one-stop machinery equipment supplier, devote ourselves to what customer needs, and provide products and service with high performance and good price to our partner. All of these models can be equipped with straight-tilt blades, angle blades, U-blades, environmental protection blades, swamp blades, standard cabin with air conditioner, roll-over-protective canopy for forest work and simple cabin under the request of the customers.
Advanced features:
1.Komatsu technology;
2.Hydraulic torque converter;
3.Cummins engines provide high power, bigger torque output and low fule consumption.
4. Horsepower ranging from 140HP to 410 HP.
