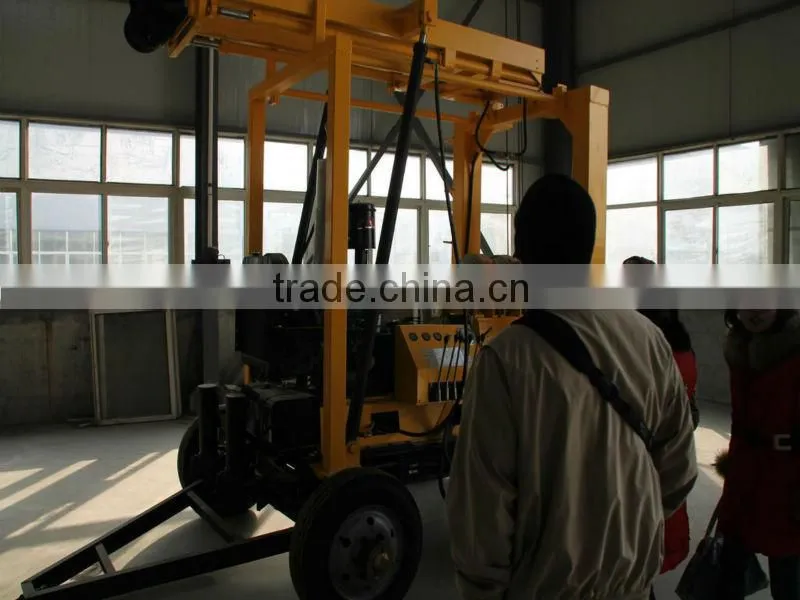

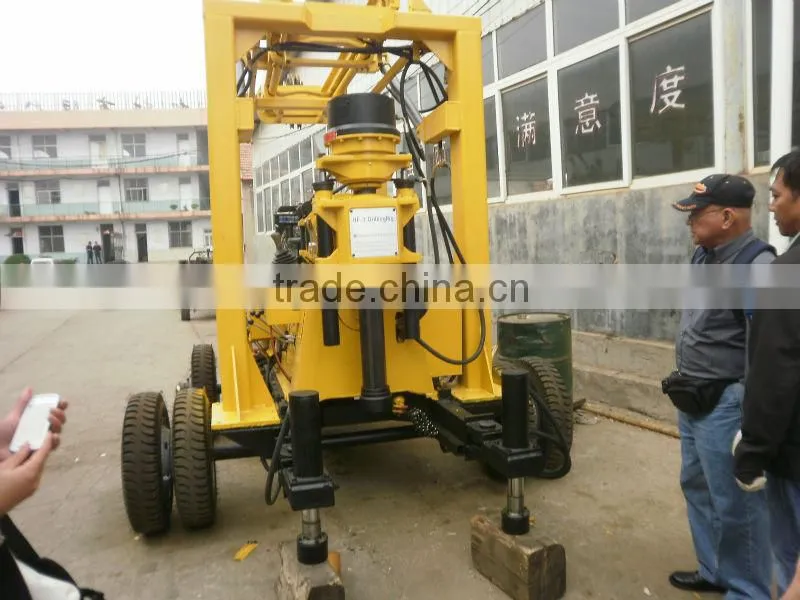

2013 Hot Sale! HF-3 Trailer Excavator Mounted Drilling Rig

US$ 20,000 - 50,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Other, well drilling

Power Type:

Diesel

Zhengzhou Hanfa Prospecting Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao Shanghai Tianjin port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, well drilling

Power Type Diesel

Place of Origin Henan, China

Brand Name HF

Model Number HF-3

Usage Water Well

Voltage 220V/380V

Power(W) 30KW

Weight 8T

Certification CE Certificate

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

excavator mounted drilling rig
1. trailer type
2, hydraulic system
3. high capacity, economical, welcomed by customers

excavator mounted drilling rig

HF-3 drilling rig Specifications information

Drilling depth	m	600
Open hole caliber	mm	300
End hole caliber	mm	75
Drilling rod	mm	Φ60
Drilling angle		90°-65°
Spindle
Spindle forward speed	r/min	57-1024
Spindle reverse speed	r/min	45-212
Spindle stroke	mm	560
Spindle inner diameter	mm	96
Spindle lifting capacity	KG	6000
Hoist
Single line lifting speed	m/s	0.515 0.894 1.421 1.948
Hug floodgate belt width	mm	90
Tightrope caliber	mm	12.5 or 14
Hoist single line lifting capacity	KG	3000
Reel caliber	mm	200
Reel cubic measure	m	30
Mud pump
Horizontal double actuator
Displacement	L/min	200,125
Triangle conveyer belt type		B×5
Work pressure	Mpa	4.6
Water inlet caliber	mm	65
Water to exit caliber	mm	37
Oil pump
Duplex gear oil pump F532/F314
Front displacement,pressure		32L/min 20Mpa
Behind displacement,pressure		14L/min 20Mpa
Drilling rig Power
Diesel engine	Hp	4100 41HP
Electric motor	KW	Y180L-4 22KW
