Specifications
HF150 water well drlling rig1.Hydraulic.traller type
2.rock expert,high efficicient drilling rig
3.IS9001;2000certificate
Best machine!!! HF150 water well drlling rig
Main features
1.hydraulic, tralier tpye
2.rock expert, high efficient drilling rig
3.ISO9001;2000 certificate
4.national free-inspection product
Specially recommended
This machine gained 3 national practical new-type patents invention.
To be equipped with hexagonal vertical shaft and hexagonal drive drilling rod,with strong rigidity and big transfer torque .
To be provided with cone plate friction clutch,being facile to operate,with big transfer torque.
To adopt rolling bearing type hoist,with wide brake band and big lifting capacity.
To be equipped with speed reducer and sludge pump,being integrated structure.
The entire machine is featured by stong adaptability,high motive power,low cost and broad compatibility.
To be provided with hydraulic control pressure feed mechanism for the purpose of improvement of construction efficiency.
To use hydraulic control well head displacement mechanism for enlargement of initial hole diameter
Unity machine parameter
Main machine technical parameter | ||
Drilling depth |
30--150m |
|
Drlling diameter |
300-75mm |
|
Drilling pipe diameter |
50mm |
|
Drilling angle |
90°~75° |
|
Drilling weight(no include power) |
910kg |
|
Unity machine dimesions |
2.75×0.95×1.6m |
|
Spindle | ||
Spindle speed |
64,128,287,557r/min |
|
Spindle stroke |
450mm |
|
Hoist | ||
Max.single line hoisting capacity |
1600kg |
|
Reel lifting speed |
17,35,75,151r/min |
|
Reel diameter |
140mm |
|
Wirerope diameter |
12.5mm |
|
Wirerop cubic measure |
35m |
|
Hug floodgate diameter |
254mm |
|
Hug floodgate belt width |
70mm |
|
Distance between drill and hole |
400mm |
|
Mud pump | ||
Type |
Horizontal single urn twin-action |
|
Displacement |
170L/min |
|
Power | ||
Diesel engine |
s1105 Model, 18HP |
|
Electric Motor |
Y160M—4 ,15kw 1440r/min |
|
Maximum pressure |
1.5Mpa |
|
Work pressure |
0.7Mpa |
|
Water inlet caliber |
40mm |
|
Water to exit caliber |
30mm |
|
Triangle conveyer belt |
B1728mm |
|
Useful | ||
Geology general check exploration,Earth physics exploration,sampling test in mining, water Well,Blast opening etc drilling engineering | ||

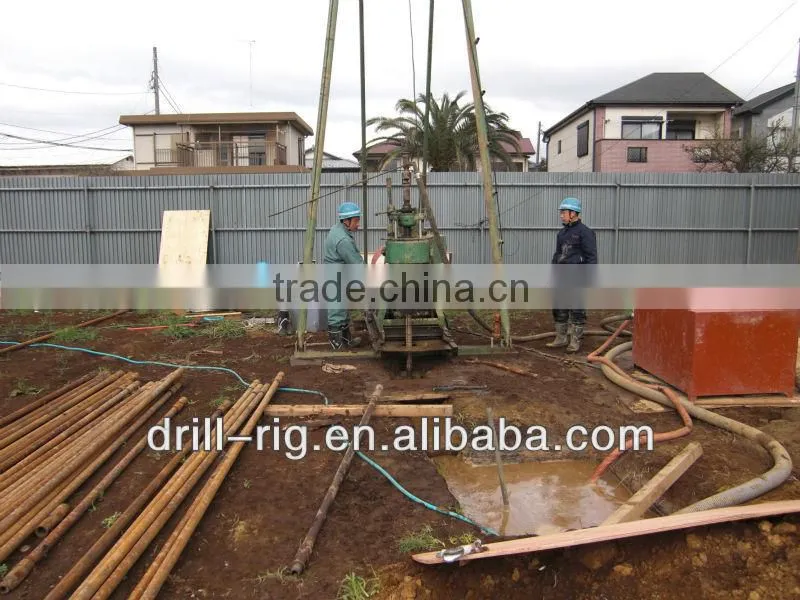

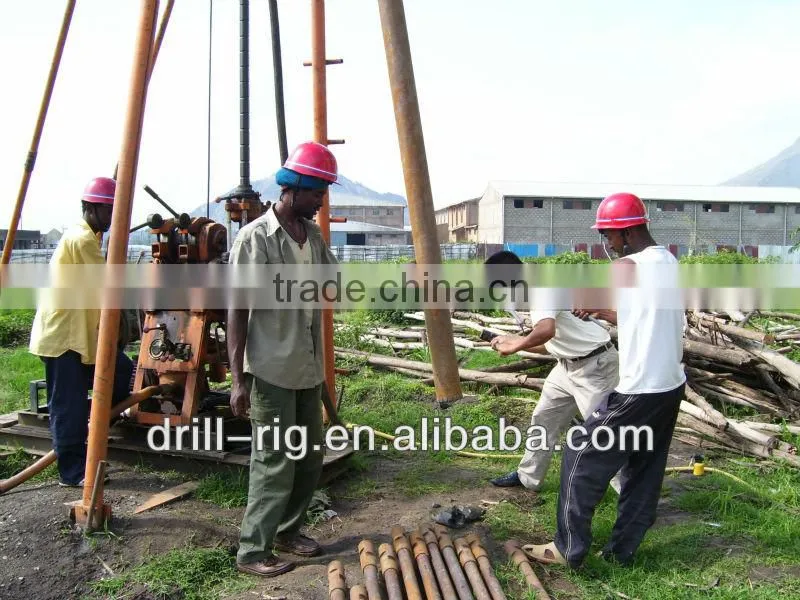

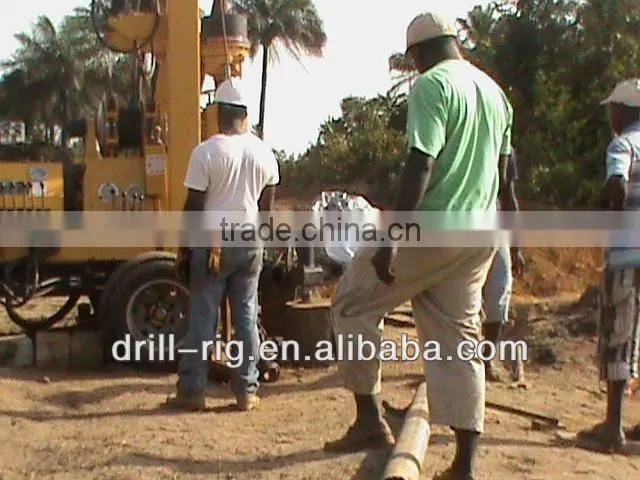

Project case------ Trailor Mounted Portable Water Well Drilling Rig:
- Our equipments have been exported to more than 100 countries all around the world and gain a good reputation both at home and abroad.
- We have established cooperation relationship with many universities to update technology and meet various needs from our customers.
