Specifications
HF-30A Core Sample Drilling Rig for SaleSoil and rock sampling
Portable, suitable for mountain area

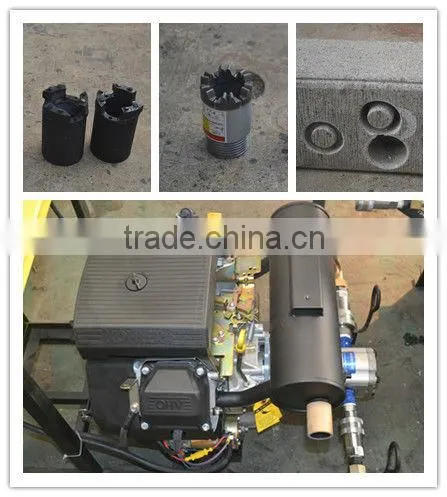

Gasoline engine

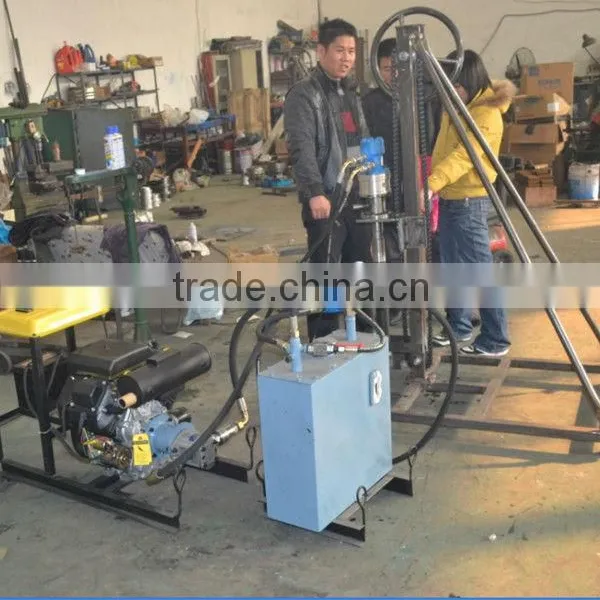

HF-30A Core Sample Drilling Rig for Sale
Details------ HF-30A Core Sample Drilling Rig for Sale
Description
Automatic sampling drill which combines various drill features and is improved all the time. The power source of the drill is gasoline engine, its rewinding is driven by hydraulic pressure, then the cylinder
adds pressure to satisfy large range of load change and reliable running.
According to various geological conditions, you can choose diamond, alloy or steel particles drilling
bit for drilling. You can also practice drill pile feeding as nonstop then the efficiency will be high.
Centralized handles make operation easy. Compact structure, small volume, light weight, easy to
disassemble and move lets it fit to work in flat and mountain areas. Its reliable function, complete
coring and flexible operation are fit for field work, then improve the efficiency and decrease the
sampling cost, which has reached international advanced grade.
Applications
Mainly used in drilling and borehole sampling projects like geochemical prospecting &sampling,
areal geological mapping, ore vein survey in shallow surface and sap, geophysical prospecting
epicenter hole construction, geotechnical engineering and so on.
Main features
(1) Employ gasoline engine as power, fit for sampling & drilling as no power outside
(2) Rewinding driven by hydraulic pressure, meet loading change in a large range, reliable running
(3) Smart and light, good disorganization, move easily, fit for wild field long distance traveling
(4) Simple operation, easy to study and master, practical and reliable.
Technical parameters
Drilling mode: rewinding then cutting in high speed
Circulation medium: water, mud
Hole termination diameter (mm): 56~89
Max. drilling depth(m): 35m
Motor rotation(r/min): 300~1000
Hydraulic system rated pressure (Mpa): 14
Motor travel distance (mm): 1100
Power (HP): 27
Tower frame: triangle, height: 1.6m
Total weight of drill (kg): 200
Max. single weight(kg): 50

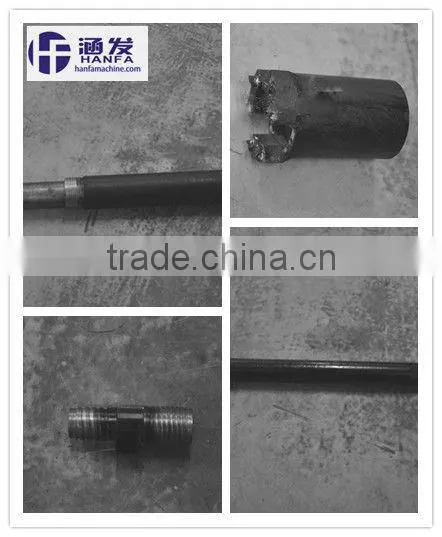

Drill Tools------ HF-30A Core Sample Drilling Rig for Sale
