Specifications
HF-5 Portable Soil Sample Drilling Machine for Sale1.Soil and rock sampling
2.Portable, suitable for mountain area

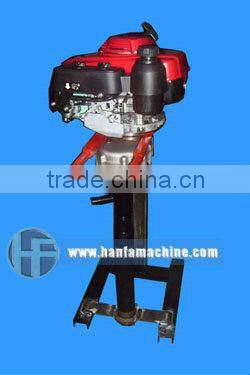

HF-5 Portable Soil Sample Drilling Machine for Sale
Details------ HF-5 Portable Soil Sample Drilling Rig for Sale
Description
HF-5 portable sampling drill is a kind of full-automatic sampling drill which combines various drill features and is improved all the time. The power source of the drill is gasoline engine, its rewinding is driven by hydraulic pressure, then the cylinder adds pressure to satisfy large range of load change and reliable running.
According to various geological conditions, you can choose diamond, alloy or steel particles drilling bit for drilling. You can also practice drill pile feeding as non-stop then the efficiency will be high. Centralized handles make operation easy. Compact structure, small volume, light weight, easy to disassemble and move lets it fit to work in flat and mountain areas. Its reliable function, complete coring and flexible operation are fit for field work, then improve the efficiency and decrease the sampling cost, which has reached international advanced grade.
Applications
HF-5 portable sampling drill is mainly used in drilling and borehole sampling projects like geochemical prospecting &sampling, areal geological mapping, ore vein survey in shallow surface and sap, geophysical prospecting epicenter hole construction, geotechnical engineering and so on.
Main features
(1) Employ gasoline engine as power, fit for sampling & drilling as no power outside
(2) Rewinding driven by hydraulic pressure, meet loading change in a large range, reliable running
(3) Smart and light, good disorganization, move easily, fit for wild field long distance traveling
(4) Simple operation, easy to study and master, practical and reliable.
Technical parameters
Drilling mode: rewinding then cutting in high speed
Circulation medium: water, mud
Hole termination diameter (mm): 46mm-60mm for rocks, 46mm-75mm for soil
Max. drilling depth(m): 5m for rocks, 8m for soil
Motor rotation(r/min): 300~800
Motor travel distance (mm): 600
Power (HP): 5.5
Total weight of drill (kg): 33
