Geological Exploration!! Take Soil and Rock Samples! HF130 Mining Core Drilling Machine

US$ 1 - 9,500 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Rotary Drilling Rig

Place of Origin:

Henan, China

Zhengzhou Hanfa Prospecting Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

QINGDAO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Rotary Drilling Rig

Place of Origin Henan, China

Brand Name HF

Model Number HF130

Usage Ore

Specifications

HF130 mining core drilling machine
1.130m depth
2.portable&easy to operate
3.hydraulic control

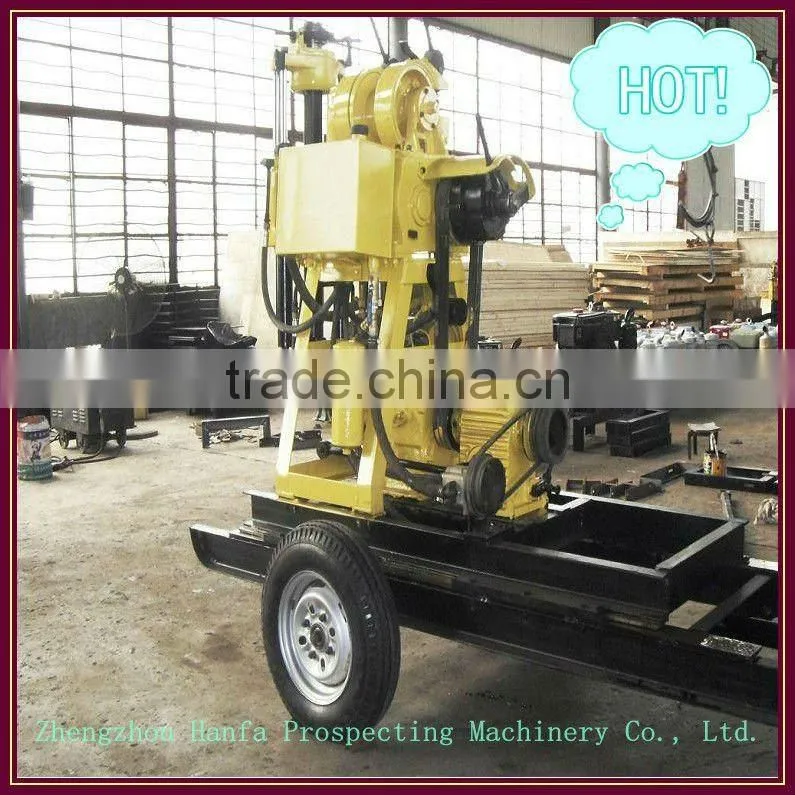

4.trailer mounted

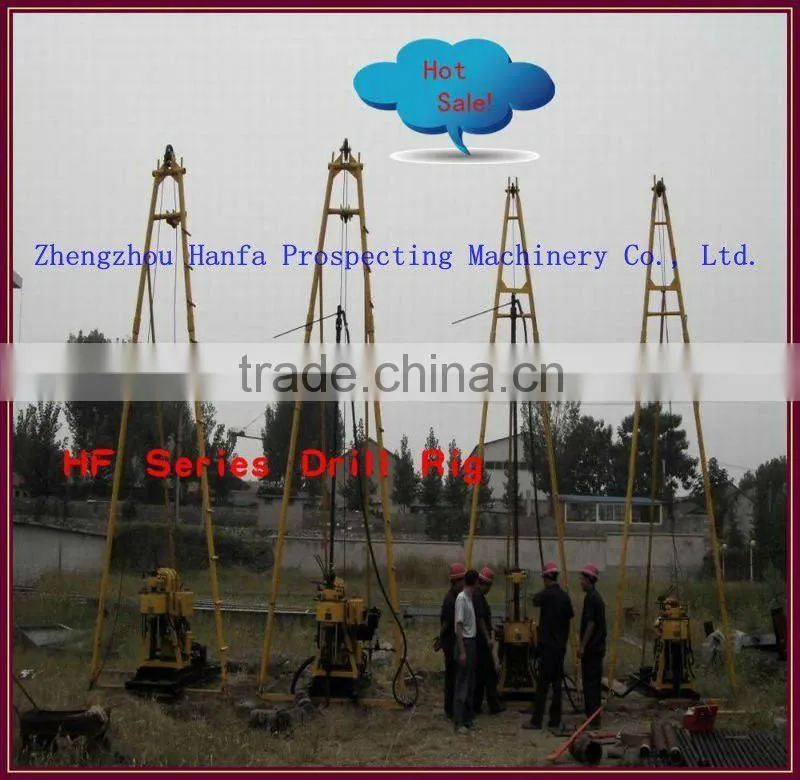

Geological Exploration!! Take soil and rock samples! HF130 mining core drilling machine

1.Portable and small volume,easy to move.

2.One to two persons can handle it.

3.exported to South America,Africa,Asia.

4.ISO9001:2000 certificate

MAIN SPECIFICATIONS
Unity machine parameter
Drilling depth		130m
Maximum open hole caliber		260mm
End hole caliber		75mm
Drill rod caliber		50mm
Drilling angle		90~75
Drill weight (No include power)		660kg
Unity machine dimensions		2.5×0.9x1.45m
Spindle
spindle speed		142,285,570r/min
Spindle stroke		450mm
Hoist
Max.single line hoisting capacity		960kg
Single line lifting speed		0.41,0.82,1.64m/s
Tightrope caliber		27m
Mud pump
Type	Horizontal single urn twin-action
Displacement	95/77L/min
Diesle engine	S1105model 18HP
Electric motor	Y160M—4 11kw 1440r/min
Maximum pressure	1.2Mpa
Work pressure	0.7Mpa
Water inlet caliber	30mm
Water to exit caliber	25mm
Triangle conveyer belt	B1575mm
