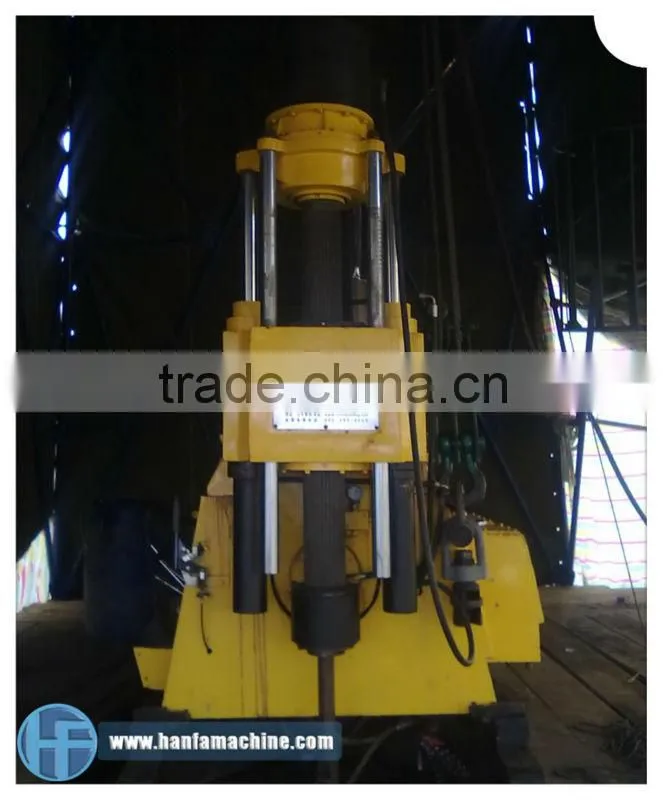

HF-7 Diamond Core Drilling Rig, HF-7 Wire-line Coring Drilling Rig

Name: HF-7 Diamond Core Drilling Rig, HF-7 Wire-line Coring Drilling Rig
Brand: HF Drilling Rig
SKU: 101792929
Availability: InStock

US$ 58,333 - 61,000 MOQ: 1 Set

Key Specifications

Condition:

New

Type:

Rotary Drilling Rig

Place of Origin:

China

Zhengzhou Hanfa Prospecting Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Rotary Drilling Rig

Place of Origin China

Brand Name HF Drilling Rig

Model Number HF-7 series water well drilling rig

Usage Other, Coal, Water Well/Coal Mining/Ore sample

Certification CE, ISO 9001:2008

Specifications

Diamond Core Drilling Rig
* New type drilling machine
* Drilling hole up to 2200m
* Hydraulic or electric power

Introduction------ Diamond Core Drilling Rig :

· Core drilling machine, designed for hard conditions and Suitable for different hardness of geological features;

· They are used for core sample, water well, geothermal well, SPT

Advantages------ Diamond Core Drilling Rig :

1 Suitable for different hardness of geological features;

2 Strong structure and scientific design enable them to drill water well deep and with large diameter;

3 Durable parts, long service life;

4 Easy operation and maintenance save extra costs;

5 Supply various size accessories, like rod, bit, core barrel, rope, and so on.

Diamond Core Drilling Rig
* New type drilling machine
* Drilling hole up to 2200m
* Hydraulic or electric power

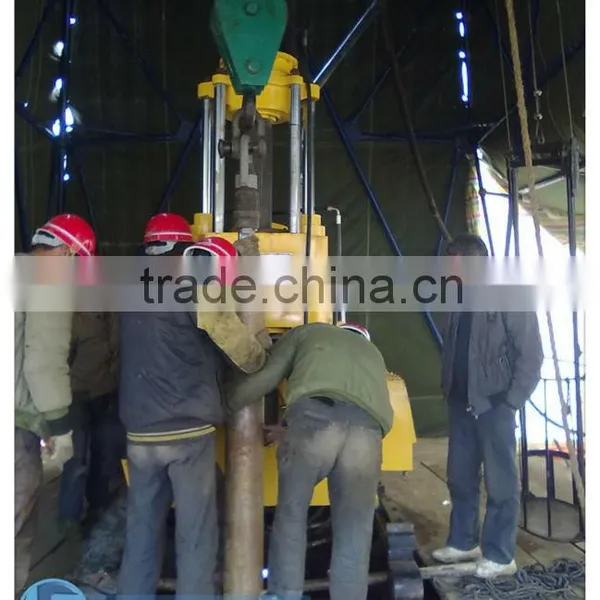

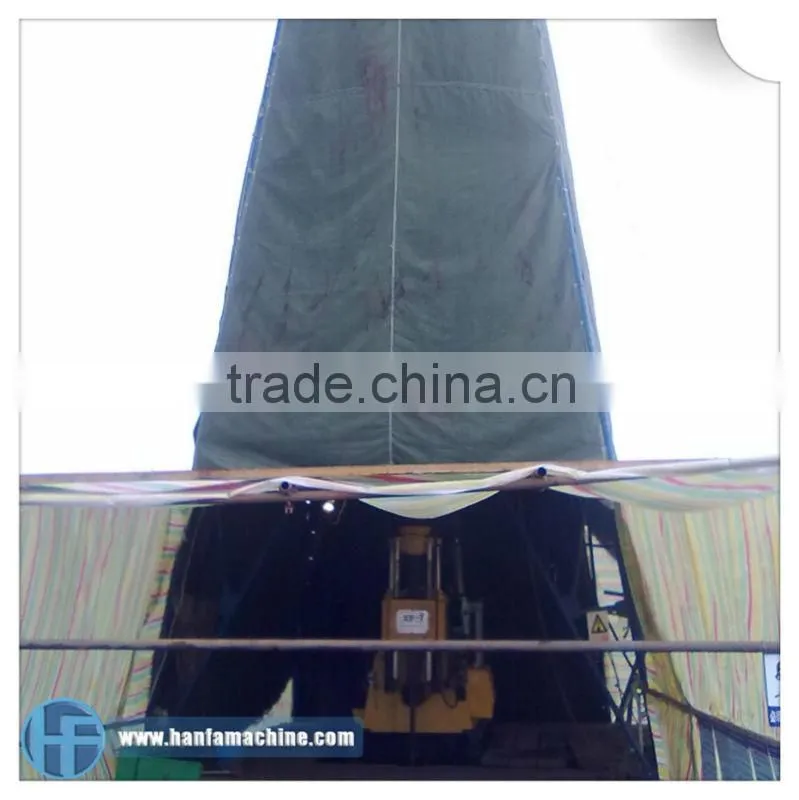

Project case------ Diamond Core Drilling Rig :

Main parameters------ Diamond Core Drilling Rig :

Vertical spindle reverse speed:
Electric Motor (1500r/m):
Spindle Forward Speed (low):	41	70	122	178		265r/m
Spindle Forward Speed (high):	155	268	469	681		1016/m
Spindle Reverse Speed	41	156r/m
Diesel engine (2000r/m):
Spindle Forward Speed (low):	54	94	163		237	353r/m
Spindle Forward Speed (high):	207	358	625		908	1355r/m
Spindle Reverse Speed	54	207r/m

Vertical spindle torque (max):	7500N.m
Vertical spindle stroke:	800mm
Vertical spindle lifting capacity (max):	180KN
Vertical spindle pressure (max):	120KN
Vertical spindle diameter:	118mm

Drilling capacity table
DCDMA (Diamond Core Drill Manufacturers Association) drilling rod	Internationally upset drilling rod	BW	2200m
		NW	1700m
		HW	1150m
	Wire-line coring drilling rod	BQ	2200m
		NQ	1700m
		HQ	1150m
		PQ	800m
		BCQ	2500m
		NCQ	2000m
		HCQ	1550m
