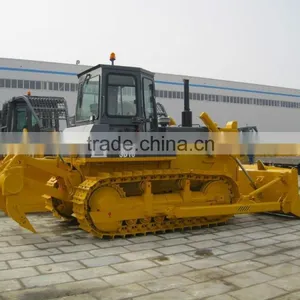

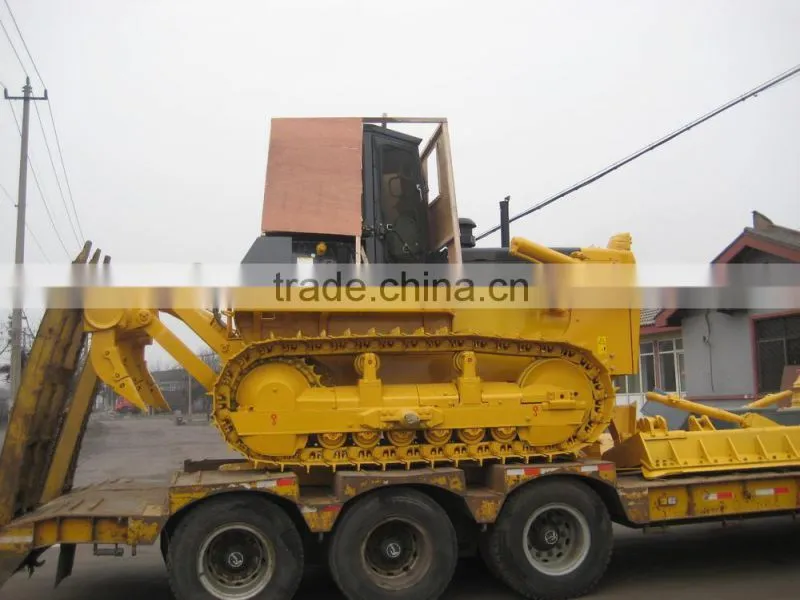

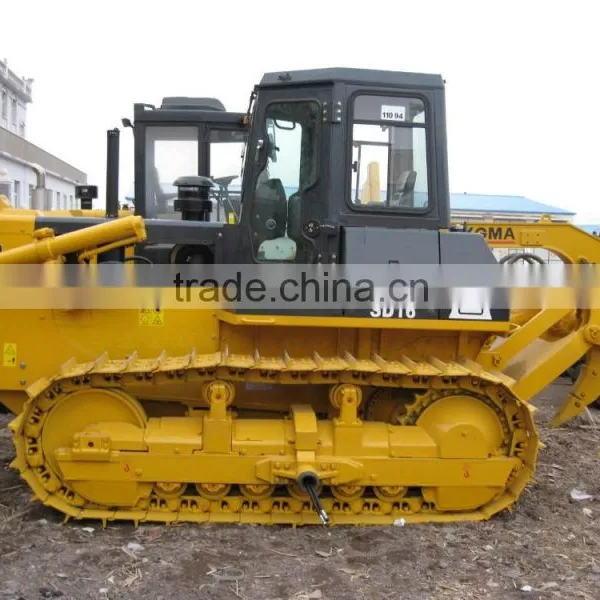

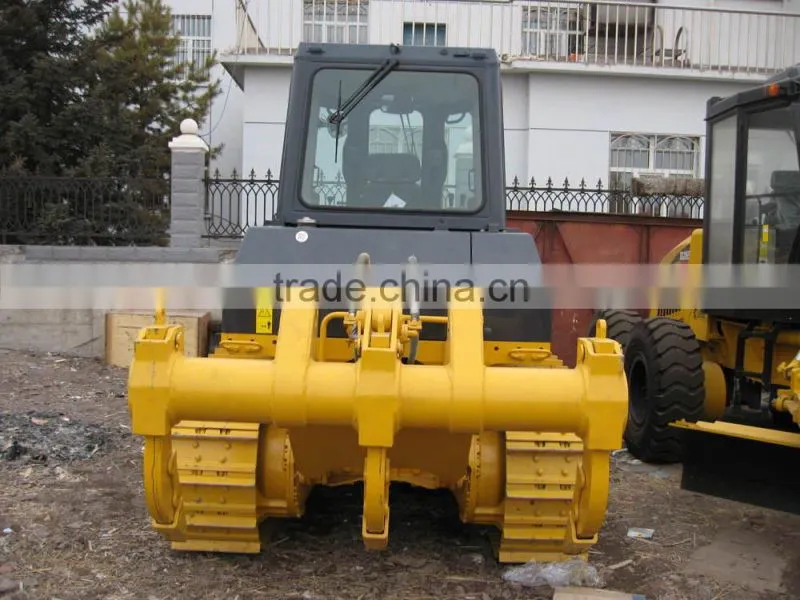

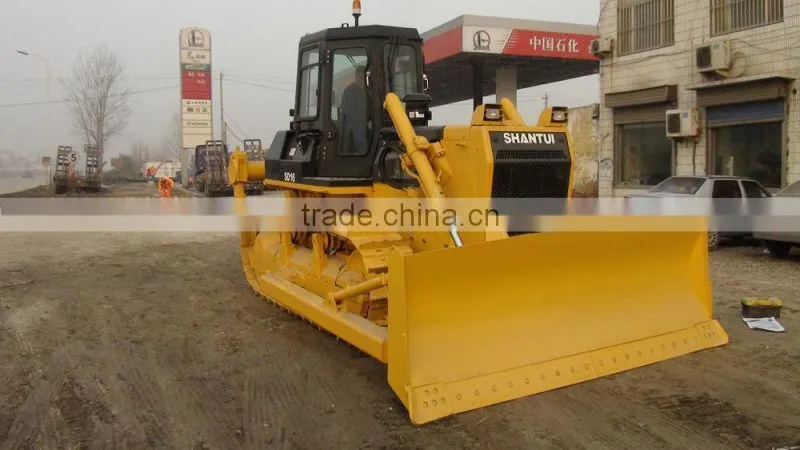

Chinese Famous Brand High Quality 160HP Bulldozer SD16

Name: Chinese Famous Brand High Quality 160HP Bulldozer SD16
Brand: SHANTUI
SKU: 101788451

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shandong, China

Brand Name:

SHANTUI

Model Number:

SD16

Xuzhou Xuzhu Construction Machinery Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shandong, China

Brand Name SHANTUI

Model Number SD16

Condition New

Moving Type Crawler Bulldozer

Dimension(Long * Breadth * High) 5140*3388*3032MM

After-sales Service Provided Engineers available to service machinery overseas

SHANTUI 160HP Bulldozer SD16

Parameters

ITEM	UNIT	SD16
L×W×H (Ripper not included)	mm	5140×3388×3032
Operating weight (Ripper not included)	t	17
Engine	-	Shangchai SC11CB184G2B1/ Weichai WD10G178E25
Rated power	kW/rpm	120/1850
Gradeability	°	30
Blade type	-	Straight tilt blade U blade Angle blade
Blade width	mm	Straight tilt blade 3388×1149 U blade 3556×1120 Angle blade 3970×1040
Dozing capacity	m3	Straight tilt blade 4.5 U blade 5 Angle blade 4.3
Ma× drop below ground of blade	mm	540
Lift height of blade	mm	1095
Ripper type	-	Three-shank ripper
Ripping depth of ripper	mm	572
Lifting height of ripper	mm	592
Number of carriers (each side)	-	2
Number of track rollers (each side)	-	6
Number of track shoes (each side)	-	37
Width of track shoe	mm	510
Track gauge	mm	1880
Ground length and ground pressure	mm/MPa	2430-0.067
Pitch	mm	203.2
Forward speed	km/h	0–3.29
		0–5.82
		0–9.63
Reverse speed	km/h	0–4.28
		0–7.59
		0–12.53
