cnc slant bed lathe from china manufacturer- TCK45H heavy duty cnc metal cutting lathe machine tools with 8'' hydraulic chuck
- 100 Set / Sets per Month
- Shenzhen or Guangzhou
- T/T L/C D/P D/A Credit Card
Product Details
Condition: | New | Type: | Horizontal | CNC or Not: | CNC |
Automatic Grade: | Automatic | Max. Swing Diameter: | 600mm | Place of Origin: | Guizhou, China |
Brand Name: | Hanover | Model Number: | TCK45H | Voltage: | 380V |
Power(W): | 11KW | Dimension(L*W*H): | 2200*2500*1800 | Weight: | 3700kg |
Certification: | ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
cnc slant bed lathe from china manufacturer- TCK45H heavy duty cnc metal cutting lathe machine tools with 8'' hydraulic chuck
1. With 30-angle or 45-angle oblique layout and hollow tubulose whole lathe bed, bending resistance and torsional stiffness resistance of machine tools when operating have been greatly improved. With twice aging treatment, it has promoted to improve the stability of lathe bed. High-rigidness and high-stability of lathe bed have provided powerful guarantee for complete machine’s high-precision.
2. Feed system have adopted direct connection drive of high-precision rolling ball screw or stick PTFE in the sliding surface or adopt linear guideway directly to eliminate creeping to improve machine tools’ operating precision and enhance moving parts’ abradability and anti-strike ability. At the same time, it could maintain guideway’s precision for long and enhance machine tools’ duration.
TCK45H- cnc slant bed lathe specification:
Item | TCK45H - cnc slant bed lathe |
Max. swing diameter over bed(mm) | 600 |
Max. processing diameter(mm) | 450 |
Spindle motor power(kw) | 11--15 |
Spindle bore diameter(mm) | Φ66 |
X-axis max. travel | 250 |
Z-axis max. travel | 610 |
Positioning accuracy | 0.008 |
Repositioning accuracy | 0.004 |
Workpieces processing accuracy | IT6--IT7 |
Processing ellipticity | 0.005 |
Cutter position numbers | 8/12 |
External dimension(length*width*height)(mm) | 2780*1800*1850 |
Net weight(kg) | 3700 |
Standard configurations | Optional configurations |
Single spindle | Fanuc,Siemens808D,KND1000TI cnc controller |
Frequency conversion stepless speed regulation | Hydraulic chuck or Pneumatic chuck |
CNC system: GSK980TB2 | Hydraulic tailstock or Pneumatic tailstock |
Manual 3-jaw chuck, manual tailstock | Soft jaws/ 4 jaw chuck |
8-position Hydraulic tool turret | 12-position Hydraulic tool turret |
Automatic electronic pump lubrication, Lighting system | Automatic bar feeding |
Automatic Cooling system | Automatic chip conveyor |

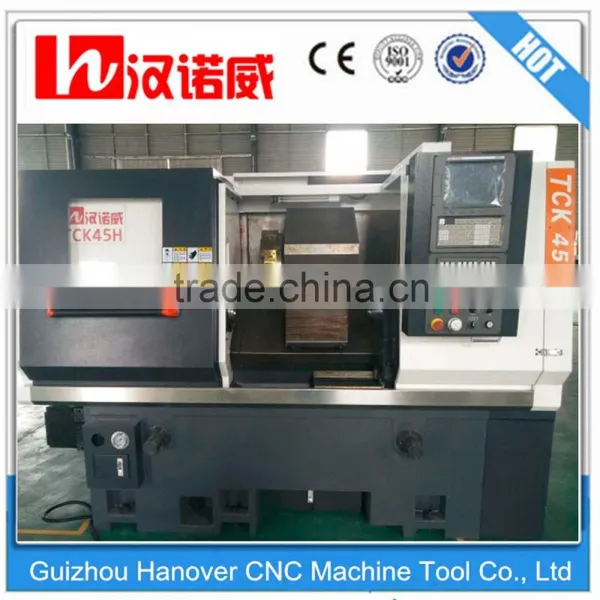

Pictures of TCK45H- cnc slant bed lathe:
TCK45H- cnc slant bed lathe package:
1. Outside package: standard export wooden cases
2. Inner package: Plastic spraying, antirust grease and Stretch film
1.Excellent guarantee and after-sale-service
a. User-friendly English software and detailed videos/CD
b. Free operator training
c. Free maintenance within 1 year for whole machine except of cnc system which guarantee is 3 years
d. 24-hours technical support by Email or Telephone
2. High quality
The main parts of our machines are imported from Japan,Germany and USA. Some are made in Taiwan.
You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
4.Customized or special design are OK(like the picture as bellow,just for your reference)
Guizhou Hanover CNC Machine Tool Co., Ltd is located in Jinzhong Economic Development District, Danzhai County, Qiandongnan Canton, Guizhou Province, China. Its core members and key staff have specilized in machine tools for over fifteen years. It mainly manufactures and sells complete CNC machine tools such as slant bed CNC lathe, flat bed CNC lathe, turning and milling composite machine, vertical machining center, drilling and tapping machining center etc. It aims to develop in the direction of research and develop and manufacture professional CNC machine tools, industrial automation products and flexible production line. Its products are continuous best-selling with superior quality.
We are looking for AGENTS in your countries, we’ll support machines and give low prices for our agents, and will support agents to take part in Exhibition in your countries, etc. If you are interested to be our agent, more details policy please feel free to contact me (Owen).
