TDC540 China Factory Manufacturing hot sale Vertical CNC Drilling&Tapping Milling Machine center for sale
The best option for sophisticated components’ batch processing such as communications, electronics, mobile phones and automobiles industries.
1. Mature and stable structure which is with three -linear guideway structure, large screw, 16T umbrella-like tool changer.
2. Rotational speed of spindle is no less than 12,000 rpm and rapid moving speed of three-axes is no less than 48 meters per minute.
3. The common M3 to M8 threaded hole of aluminum alloy material could be finished tapping within 1.3s.
4. With the cutters’ speedy rotational speed and quick feed,more high processing efficiency.
TDC540- CNC Drilling and Tapping Machine Specification:
| Item | TDC540- Drilling and Tapping Machine |
| Worktable size(length*width)(mm) | 600*400 |
| Worktable travel(X*Y*Z)(mm) | 510*400*310 |
| T-slot dimension(amount--dimension*distance)(mm) | 3--14*100 |
| Spindle conicity | BT30 |
| Spindle's rotational speed (rpm) | 20000/24000 |
| Tool magazine capacity | 16 |
| Switching time of tool to tool(s) | 1.3 |
| Max. cutting speed(m/min) | 10 |
| Rapid moving speed(m/min) | 60 |
| Distance from spindle center to column guideway(mm) | 460 |
| Positioning accuracy(mm) | ±O.OO3 |
| Re-positioning accuracy(mm) | ±O.OO2 |
| Worktable loading capacity (kg) | 200 |
| Net weight (kg) | 3200 |
| Standard configurations | Optional configurations |
| Siemens 828D controller system | FANUC oi MD or oi mate MD,Mitsubishi M70 |
| Original Siemens complete servo | Taiwan SYNTEC cnc system |
| Schneider electrical | Tool auto-checking instrument |
| Constant-temperature oil cooler of spindle | Siemens,ABB,IDEC Electric |
| Large flow cooling pump | Servo tool magazine |
| Oil water separating device | Oil mist collector |
| Automatic centralized lubrication device | Auto chip conveyor |
| Outer-hanging Handheld pneumatic gun | 3-D probe(Automatic measure and calibrate) |
| Full outer stainless steel inner defense and protection | Forth axis and accessories |

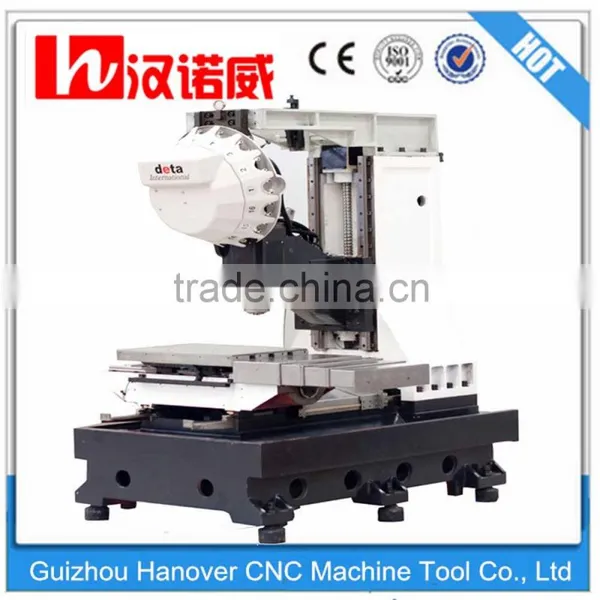

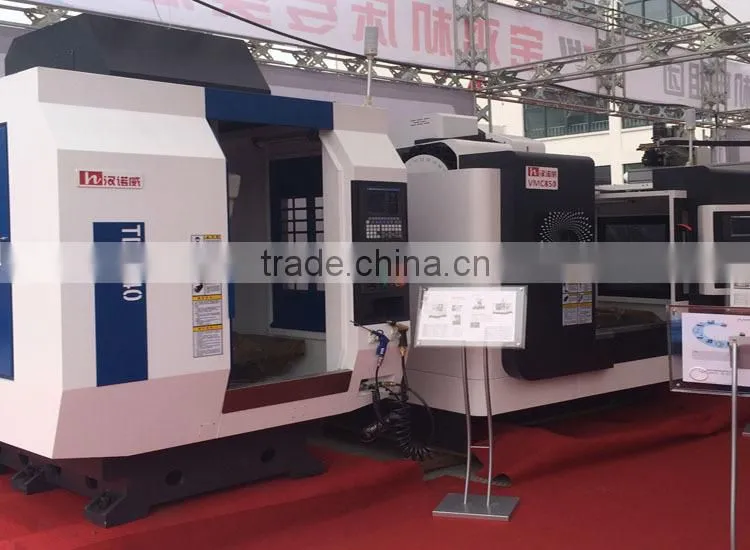

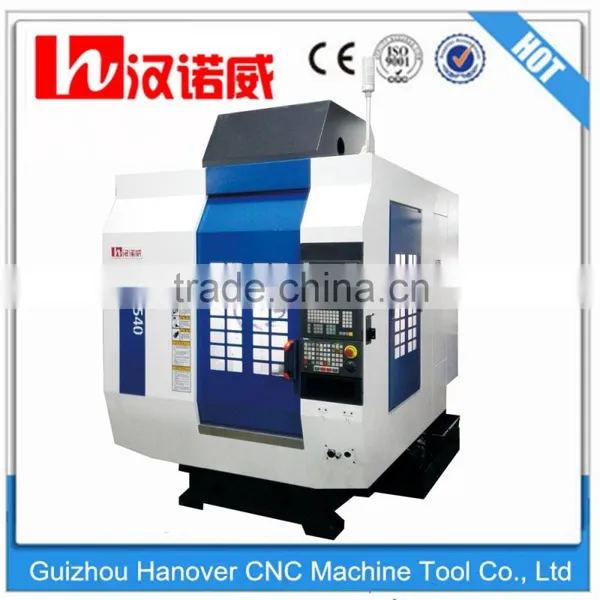

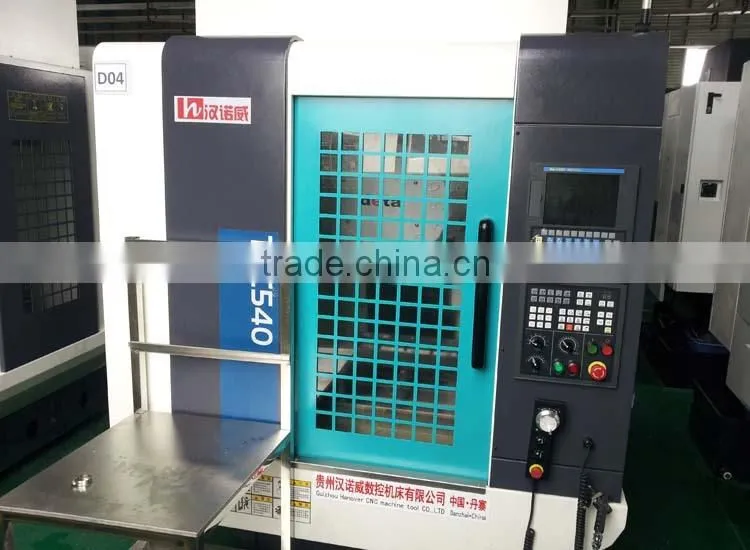

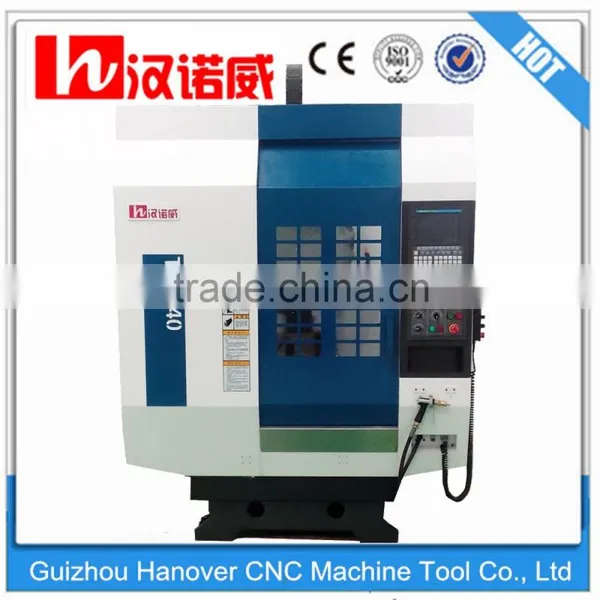

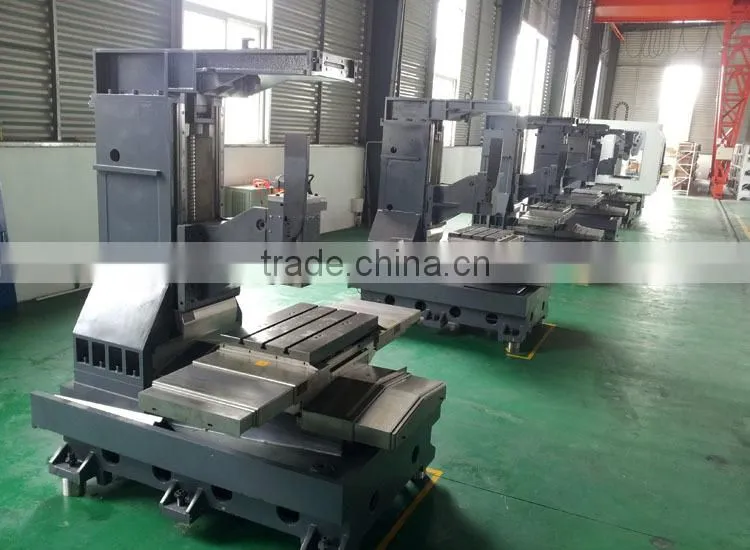

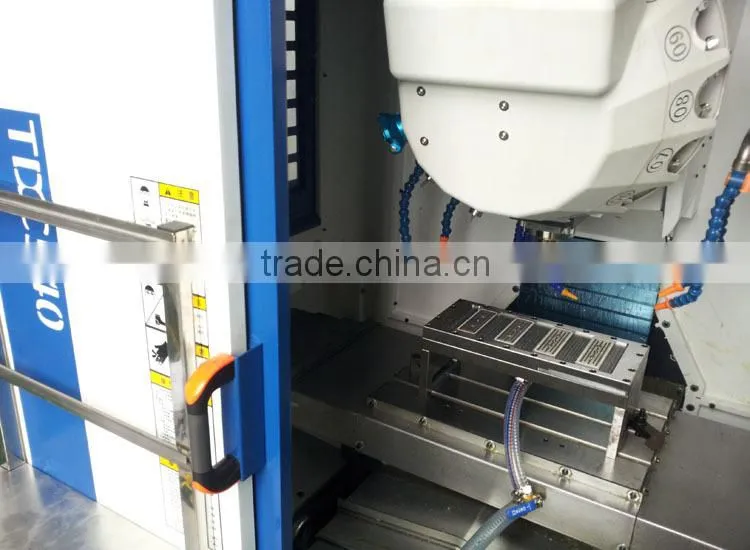

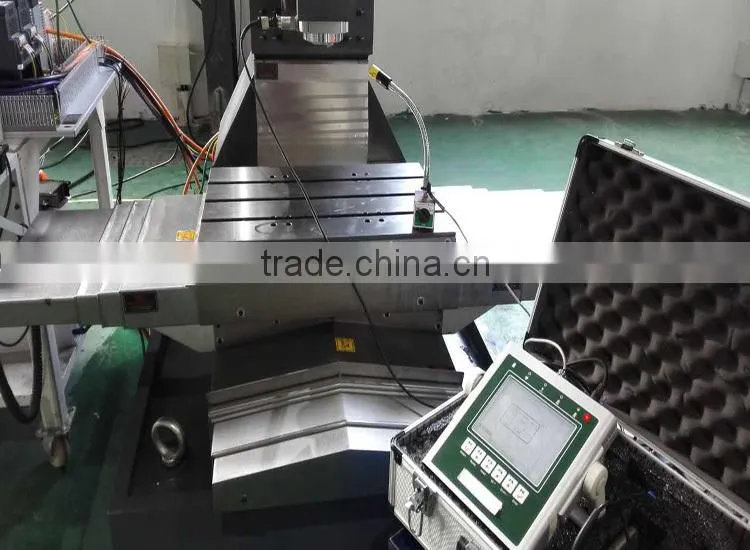

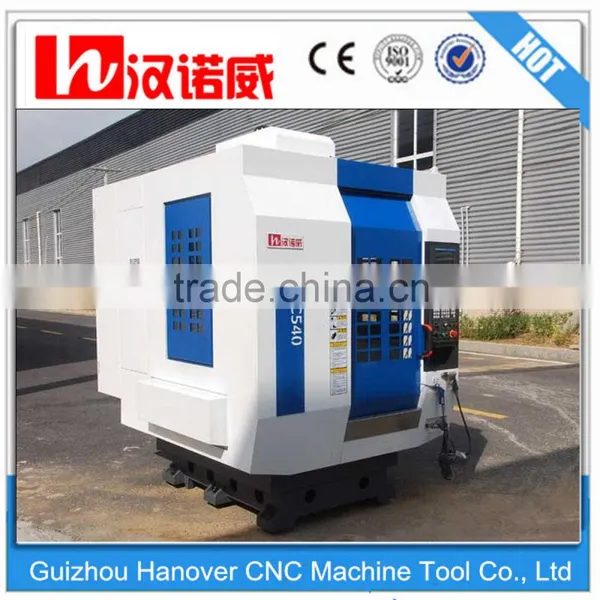

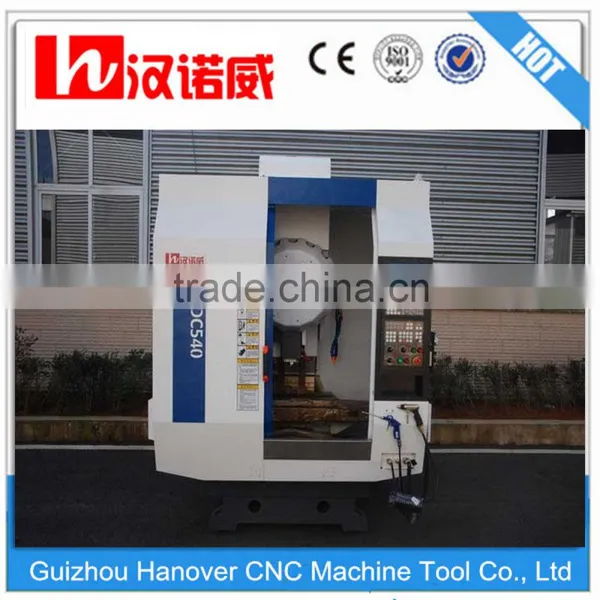

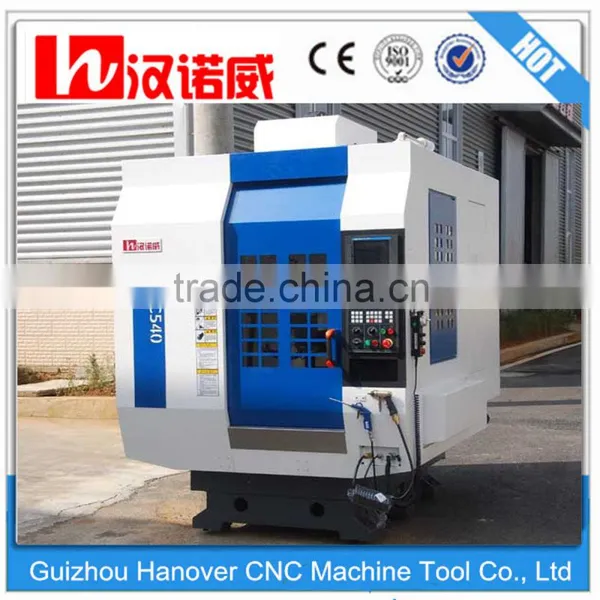

Pictures of TDC540- CNC Drilling and Tapping Machine Center :

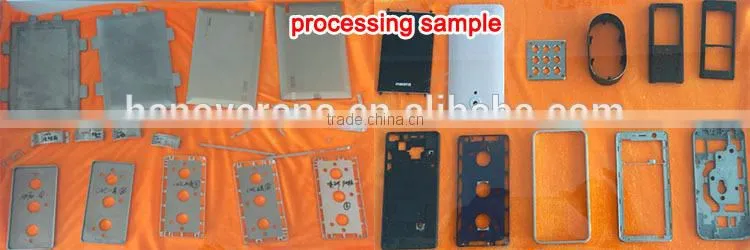

Working samples for drilling and tapping machine:
TDC540- CNC Drilling and Tapping Machine Center packages:
1. Inner package: Plastic spraying, antirust grease and Stretch film
2. Outside package: standard export wooden cases
1.Excellent guarantee and after-sale-service
a. User-friendly English software and detailed videos/CD
b. Free operator training
c. Free maintenance within 1 year for whole machine except of cnc system which guarantee is 3 years
d. 24-hours technical support by Email or Telephone
2. High quality
The main parts of our machines are imported from Japan,Germany and USA. Some are made in Taiwan.
You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
4.Customized or special design are OK(like color,picture is just for your reference).
Guizhou Hanover CNC Machine Tool Co., Ltd is located in Jinzhong Economic Development District, Danzhai County,Guizhou Province, China. Its core members and key staff have specilized in machine tools for over fifteen years. It mainly manufactures and sells complete CNC machine tools such as slant bed CNC lathe, flat bed CNC lathe, turning and milling composite machine, vertical machining center, drilling and tapping machining center etc. It aims to develop in the direction of research and develop and manufacture professional CNC machine tools, industrial automation products and flexible production line. Its products are continuous best-selling with superior quality.
We are looking for AGENTS in your countries, we’ll support machines and give low prices for our agents, and will support agents to take part in Exhibition in your countries, etc. If you are interested to be our agent, more details policy please feel free to contact me (Owen).
