CNC mini Vertical Machining Center/ Milling Machine VMC650 with 8000rpmhigh speed spinde aluminum profile cnc machine centers
Strong rigidness. Mold processing experts.

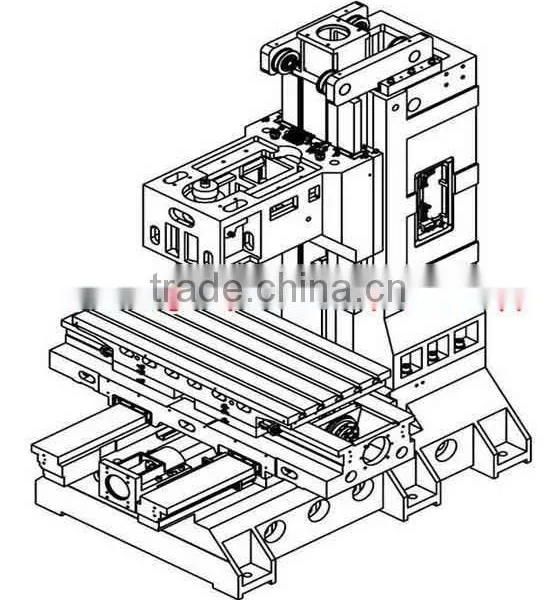

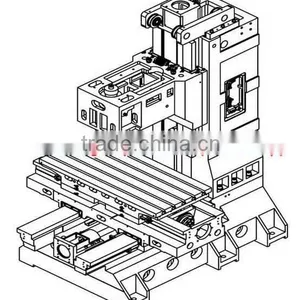

With three-axes hard rail structure, the vertical machining center is of excellent torsional resistance and strong rigidness. At the same time, it could bear heavy loading cutting machining.
1. With high rigid body structure design, it could meet the demands of high performance and powerful cutting.
2. With international, high-standardized and refined sheet metal design, the machine tools are with excellent sealing performance and environmental materials.
3. With various configuration modularization, personalized options are available for different clients to meet their processing demands.
VMC650--cnc vertical machining center specification:
| Item | VMC650 CNC Vertical Machining Center |
| X-axis travel (mm) | 600 |
| Y-axis travel (mm) | 500 |
| Z-axis travel(mm) | 500 |
| Distance from spindle nose to worktable (mm) | 105--605 |
| Distance from spindle center to column guideway(mm) | 540 |
| Worktable size(mm) | 800*420 |
| Maximum worktable loading capacity (kg) | 600 |
| T-slot | 5--18 |
| Distance between slots(mm) | 80 |
| Spindle's rotational speed(rpm) | 8000 |
| Spindle conicity/Spindle external diameter | BT40/Φ150 |
| X-axis/Y-axis rapid feed speed (m/min) | 18 |
| Z-axis rapid feed speed (m/min) | 15 |
| Cutting feed speed(mm/min) | 1--10000 |
| Guideway form | sliding guideway |
| Tool magazine | 16/20/24 |
| Max.cuttters' diameter/length/weight(mm/mm/kg) | 78/300/10 |
| Max. cutters' diameter/length (mm/mm) | 150/300 |
| Spindle motor power(kw) | 3.7/5.5 |
| External dimension(length*width*height)(mm) | 2600*2200*2500 |
| Net weight(kg) | 3800 |
| Standard configurations | Optional configurations |

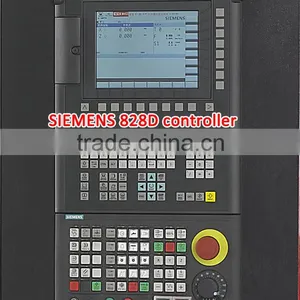

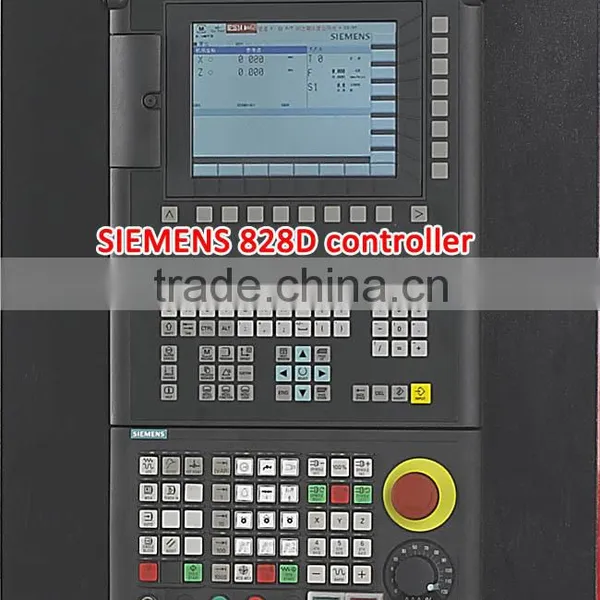

| Siemens 828D controller system | FANUC oi MD or oi mate MD,Mitsubishi M70 |
| NSK bearing | FAG,NTN bearing |

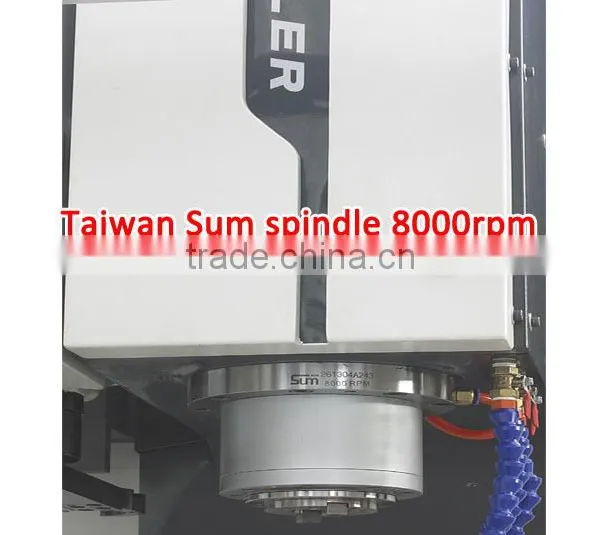

| Taiwan Sum spindle 8000rpm | Taiwan ROYAL,Posa spindle |
| Taiwan Hiwin Ball screw | Taiwan PMI,Germany IF Ball screw |

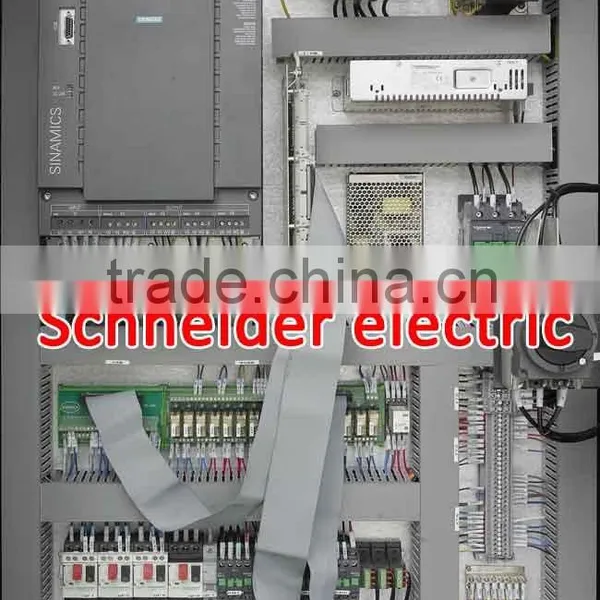

| Schneider Electric | Siemens,ABB,IDEC Electric |

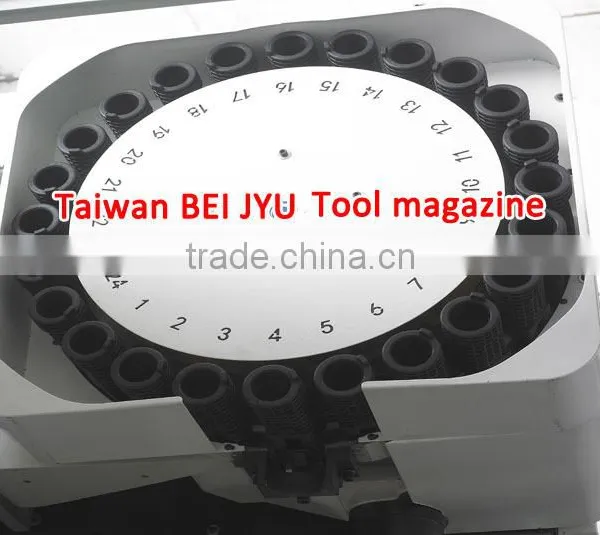

| Taiwan BEI JYU 24 pcs disc-type tool magazine | Taiwan DETA, H.D.W. tool magazine |
| Large flow cooling pump | Auto chip conveyor |
| Full outer stainless steel inner defense and protection | Forth axis |

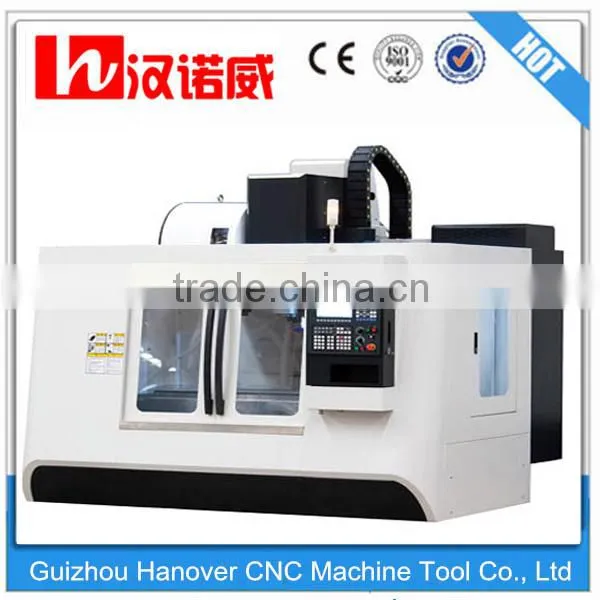

Pictures of VMC650- mini cnc vertical machining center:
VMC650--CNC Machining Center package:
1. Outside package: standard export wooden cases
2. Inner package: Plastic spraying, antirust grease and Stretch film
1.Excellent guarantee and after-sale-service
a. User-friendly English software and detailed videos/CD
b. Free operator training
c. Free maintenance within 1 year for whole machine except of cnc system which guarantee is 3 years
d. 24-hours technical support by Email or Telephone
2. High quality
The main parts of our machines are imported from Japan,Germany and USA. Some are made in Taiwan.
You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
4.Customized or special design are OK

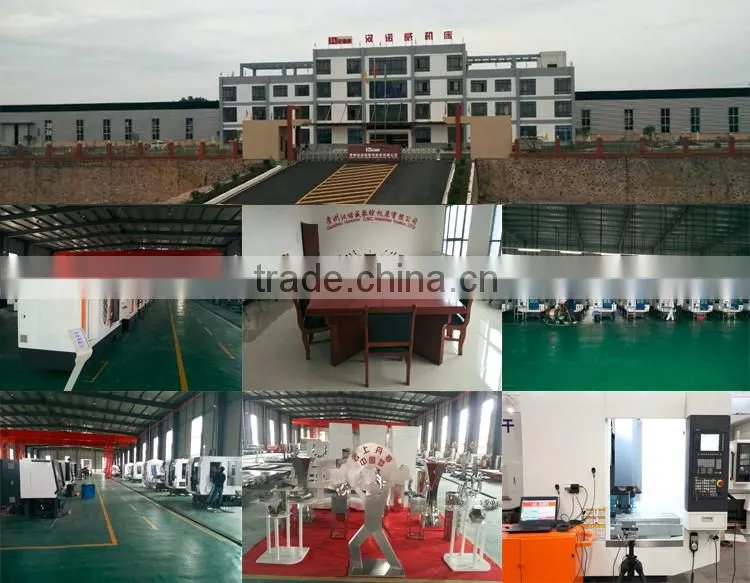

Guizhou Hanover CNC Machine Tool Co., Ltd is located in 18 danyang road, Danzhai County, Guizhou Province,China.Its core members and key staff have specilized in machine tools for over fifteen years. It mainly manufactures and sells complete CNC machine tools such as slant bed CNC lathe, flat bed CNC lathe, turning and milling composite machine, vertical machining center, drilling and tapping machining center etc. It aims to develop in the direction of research and develop and manufacture professional CNC machine tools, industrial automation products and flexible production line. Its products are continuous best-selling with superior quality.
We are looking for AGENTS in your countries, we’ll support machines and give low prices for our agents, and will support agents to take part in Exhibition in your countries, etc. If you are interested to be our agent, more details policy please feel free to contact me (Owen).
