One. VHC540 type of machine center with vertical type of machine frame and cnc ATC
High-speed! High-efficiency! Upgrading Products for Vertical Machining Center
Speedy and Swift! Quick response! Fast acceleration and deceleration!
Rapid! Fast tool changing! Rapid moving!
Accurate! Rapid rotational speed of spindle!
1. The base is large and thick with sufficient weight and large supporting surface which guarantee strongly for high speed and high precision.
2. Wide chute on both sides’ large slope benefits for scraps discharging.
3. With large herringbone column which is of steady supporting, its anti-distorting and anti- impact abilities have been greatly improved.
Two. VHC540 type of machine center with vertical type of machine frame and cnc ATC Specifications:
| Item | VHC540 |
| Worktable size(length*width)(mm) | 400*600 |
| Worktable travel(X*Y*Z)(mm) | 510*400*310 |
| T-slot dimension(amount--dimension*distance)(mm) | 3--14*100 |
| Spindle conicity | BT30 |
| Spindle's rotational speed (rpm) | 15000/20000/24000 |
| Tool magazine capacity | 20+1 |
| Switching time of tool to tool(s) | 0.7 |
| Max. cutting speed(m/min) | 10 |
| Rapid moving speed(m/min) | 64 |
| Distance from spindle center to column guideway(mm) | 400 |
| Positioning accuracy(mm) | ±O.OO3 |
| Re-positioning accuracy(mm) | ±O.OO2 |
| General power(kw) | 10.5 |
| Input power | 50Hz 380V |
| Worktable loading capacity (kg) | 200 |
| Net weight (kg) | 3300 |
| Standard configurations | Optional configurations |
| Siemens 828D controller system | FANUC oi MD or oi mate MD,Mitsubishi M70 |
| Original Siemens complete servo | Taiwan SYNTEC cnc system |
| Schneider electrical | Siemens,ABB,IDEC Electric |
| Constant-temperature oil cooler of spindle | Taiwan PMI,Germany IF Ball screw |
| Large flow cooling pump | Tool auto-checking instrument |
| Oil water separating device | Oil mist collector |
| Automatic centralized lubrication device | Auto chip conveyor |
| Outer-hanging Handheld pneumatic gun | 3-D probe(Automatic measure and calibrate) |
| Full outer stainless steel inner defense and protection | Forth axis and accessories |
Contact:Mr James Feng
Tel:86+0531-81956191
Fax:86+0531-81958181
Mobel:86+18575680287

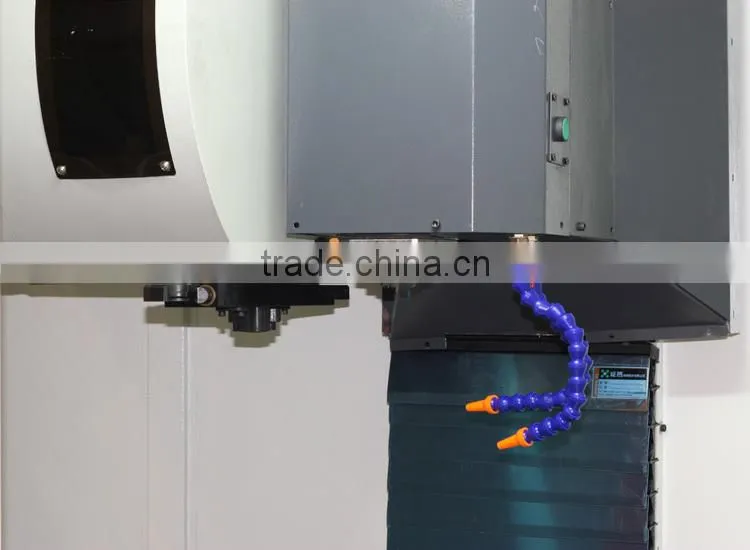

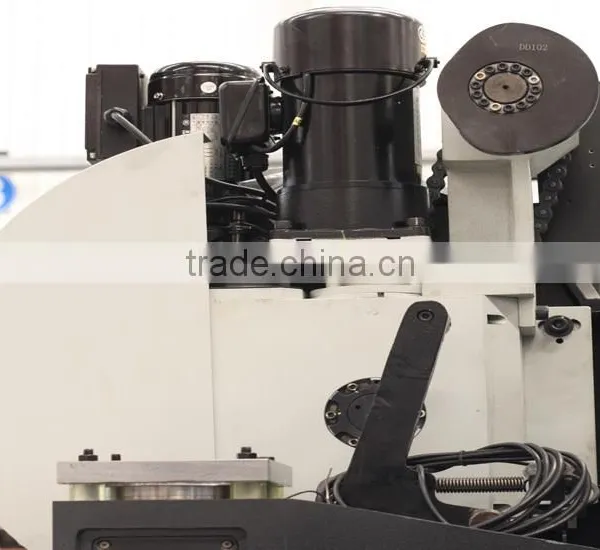

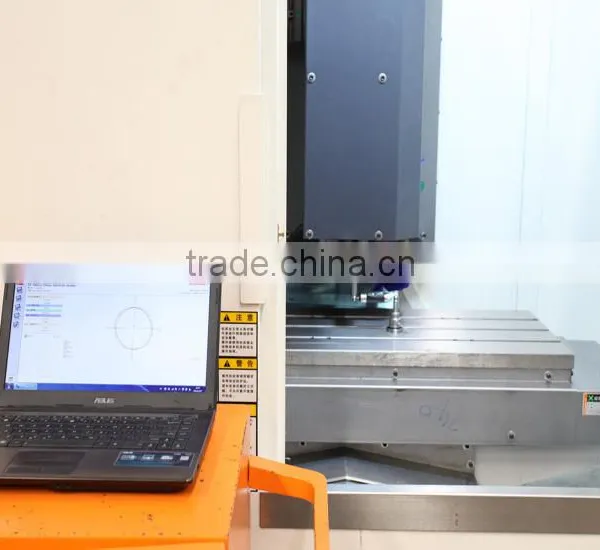

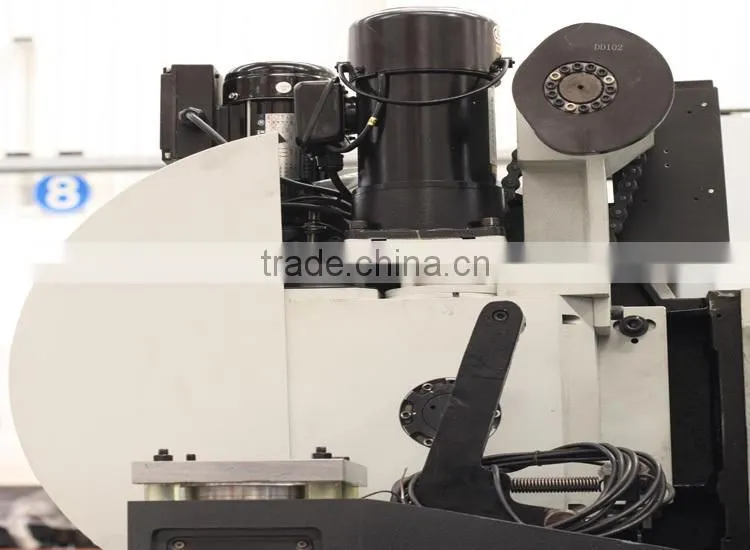

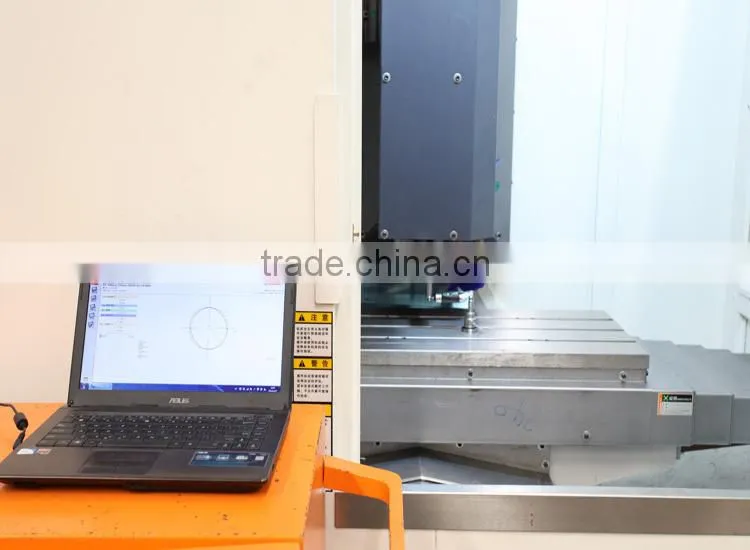

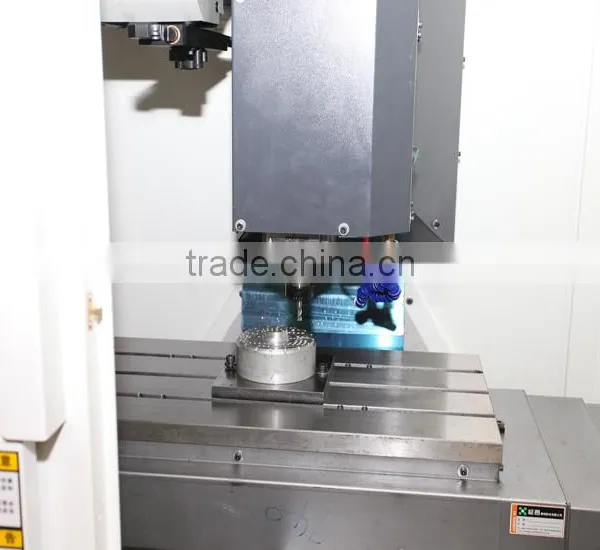

Three.Picture of VHC540 type of machine center with vertical type of machine frame and cnc ATC
VHC540 type of machine center with vertical type of machine frame and cnc ATC packages:
1. wooden package or can be adjust for the machine's safey.
2. Inner package: Plastic spraying, antirust grease and Stretch film

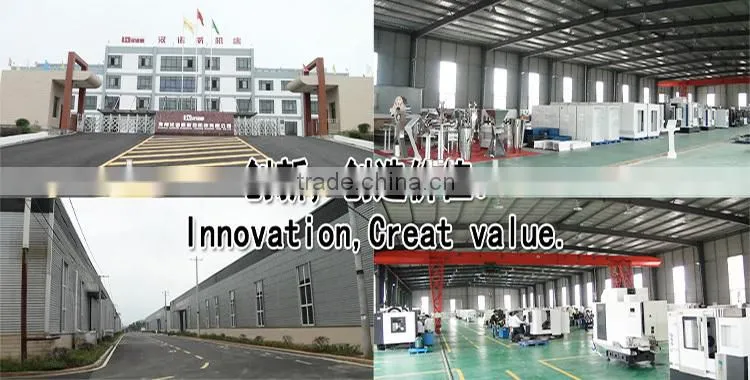

The history of Guizhou Hanover numerial control machine is over 20 years.During the years of development and exploring, we has accumulated a large of experience,and also has intensive study in processing parts.As long as the customers tell us what kind of parts they need ,we will recommend the most appropriate lathes for them.
Over the past 20 years, we survived. The reason of our survival was because of concentration and following the trend of the times. we stick to researching and developing when the economy develops. The survival of our company depends on the quality of the products when the economic depression. That is the philosophy of our company.
1.Excellent guarantee and after-sale-service
a. User-friendly English software and detailed videos/CD
b. Free operator training
c. Free maintenance within 1 year for whole machine except of cnc system which guarantee is 3 years
d. 24-hours technical support by Email or Telephone
2. High quality
The main parts of our machines are imported from Japan,Germany and USA. Some are made in Taiwan.
You are welcomed to visit our factory.
3. Low Price
We make sure that for same price, our quality is much more excellent.
4.Customized or special design are OK
We are looking for AGENTS in your countries, we’ll support machines and give low prices for our agents, and will support agents to take part in Exhibition in your countries, etc. If you are interested to be our agent, more details policy please feel free to contact me (James)
