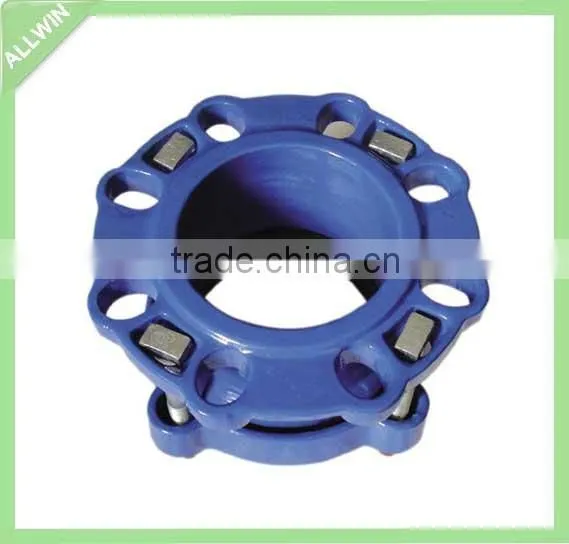

Cast Iron Pipe Fittings Flange Adaptor

Specifications

Cast Iron Pipe Fittings Flange Adaptor
1. DN50-600mm
2. Ductile iron body
3. EPDM gasket
4. Fusion bonded epoxy





       Cast Iron Pipe Fittings Flange Adaptor





  Description

  1. Material: Ductile Iron body
  2. Gaskets :EPDM/NBR

  3. Coating: epoxy in blue,black or red.

  4. Size range: DN50-600 (2"-24")

  5. Used for PVC pipes

 6. Packing: standard Wooden pallets or cases





 Dimensions



NO.	Size	Outside diameter of Pipe	Weight
		DE= mm	kg
1	DN50 /2 inch	(59-73mm)	3.6
2	DN65/2.5 inch	(72-85mm)	4.8
3	DN80/3 inch	(88-103mm)	6.4
4	DN100-/4 inch	(108-128mm)	7.1
5	DN125/5 inch	(132-146mm)	9.5
6	DN150-/6 inch	(158-181mm)	11.6
7	DN175/7 inch	(192-209mm)	15.8
8	DN200/8 inch	(218-235mm)	15.8
9	DN225-/9 inch	(250-267mm)	18.7
10	DN250/10inch	(262-289mm)	21.5
11	DN300/12inch	(315-332mm)	25.3
12	DN300/12inch	(322-339mm)	26.4
13	DN300 /12inch	(340-360mm)	27.5
14	DN350/14inch	(351-368mm)	40.2
15	DN350/14inch	(374-391mm)	41.8
16	DN400/16inch	(400-429mm)	49.5
17	DN400/16inch	(425-442mm)	52.8
18	DN450/18inch	(455-472mm)	57.2
19	DN450/18inch	(476-493mm)	62
20	DN500/20inch	(500-532mm)	67
21	DN500/20inch	(527-544mm)	68.5
22	DN500/20inch	(555-572mm)	70
23	DN500/20inch	(566-583mm)	71
24	DN500/20inch	(582-599mm)	72
25	DN600/24inch	(600-630mm)	83
26	DN600/24inch	(630-647mm)	85
27	DN600/24inch	(645-662mm)	86
28	DN60024inch	(662-679mm)	87
29	DN600/24inch	(675-692mm)	91







More Models for your choice
