Help CenterPVC/HDPE Flange Adaptor
US$ 1,000 - 2,000
MOQ: 10 Pieces
Key Specifications
Get Latest Price
Material:
Iron
Technics:
Other, Casting, Casting
Type:
Other, clamp
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Ductile Iron ANSI Flange AdaptorUS$ 1,000 - 2,000MOQ: 10 Pieces -
DI, Ductile Iron Saddle Clamp for PVC, PE, Ductile Iron PipeUS$ 1,000 - 2,000MOQ: 50 Pieces
-
DI Pipe Saddle ClampUS$ 1,000 - 2,000MOQ: 50 Pieces
-
250mm Pipe Saddle ClampUS$ 1,000 - 2,000MOQ: 50 Pieces
-
HDPE Pipe Saddle JointUS$ 1,000 - 2,000MOQ: 50 Pieces
Material
Iron
Technics
Other, Casting, Casting
Type
Other, clamp
Place of Origin
Shanxi, China
Model Number
DN50-600
Brand Name
Allwin
Connection
Other, by bolts and nuts
Shape
Equal
Head Code
Other, round
Specifications
PVC/HDPE Flange Adaptor1. DN50-600mm
2. Ductile iron body
3. EPDM gasket
4. Fusion bonded epoxy
Product Description

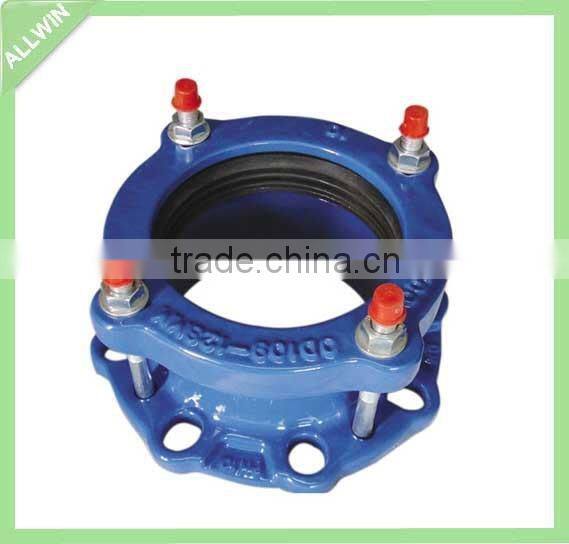

PVC/HDPE Flange Adaptor
Description
1. Material: Ductile Iron body
2. Gaskets :EPDM/NBR
3. Coating: epoxy in blue,black or red.
4. Size range: DN50-600 (2"-24")
5. Used for PVC pipes
6. Packing: standard Wooden pallets or cases
Dimensions
| NO. | Size | Outside diameter of Pipe | Weight |
| DE= mm | kg | ||
| 1 | DN50 /2 inch | (59-73mm) | 3.6 |
| 2 | DN65/2.5 inch | (72-85mm) | 4.8 |
| 3 | DN80/3 inch | (88-103mm) | 6.4 |
| 4 | DN100-/4 inch | (108-128mm) | 7.1 |
| 5 | DN125/5 inch | (132-146mm) | 9.5 |
| 6 | DN150-/6 inch | (158-181mm) | 11.6 |
| 7 | DN175/7 inch | (192-209mm) | 15.8 |
| 8 | DN200/8 inch | (218-235mm) | 15.8 |
| 9 | DN225-/9 inch | (250-267mm) | 18.7 |
| 10 | DN250/10inch | (262-289mm) | 21.5 |
| 11 | DN300/12inch | (315-332mm) | 25.3 |
| 12 | DN300/12inch | (322-339mm) | 26.4 |
| 13 | DN300 /12inch | (340-360mm) | 27.5 |
| 14 | DN350/14inch | (351-368mm) | 40.2 |
| 15 | DN350/14inch | (374-391mm) | 41.8 |
| 16 | DN400/16inch | (400-429mm) | 49.5 |
| 17 | DN400/16inch | (425-442mm) | 52.8 |
| 18 | DN450/18inch | (455-472mm) | 57.2 |
| 19 | DN450/18inch | (476-493mm) | 62 |
| 20 | DN500/20inch | (500-532mm) | 67 |
| 21 | DN500/20inch | (527-544mm) | 68.5 |
| 22 | DN500/20inch | (555-572mm) | 70 |
| 23 | DN500/20inch | (566-583mm) | 71 |
| 24 | DN500/20inch | (582-599mm) | 72 |
| 25 | DN600/24inch | (600-630mm) | 83 |
| 26 | DN600/24inch | (630-647mm) | 85 |
| 27 | DN600/24inch | (645-662mm) | 86 |
| 28 | DN60024inch | (662-679mm) | 87 |
| 29 | DN600/24inch | (675-692mm) | 91 |

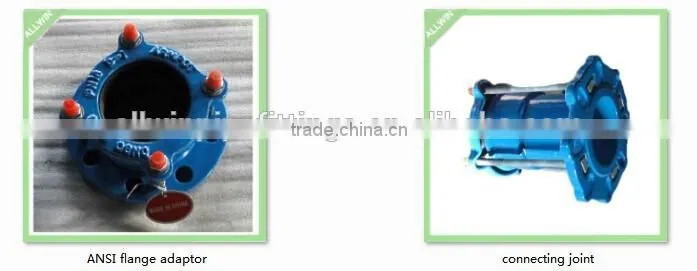

More Models for your choice
