Help CenterGibault Joint for PVC and Steel Pipe
US$ 10 - 500
MOQ: 1 Piece
Key Specifications
Get Latest Price
Material:
Iron
Technics:
Casting
Type:
Coupling
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN OR QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Material
Iron
Technics
Casting
Type
Coupling
Place of Origin
Shanxi, China
Model Number
Gibault joint
Brand Name
ALLWIN or OEM
Connection
Other, Push in
Shape
Other, round
Head Code
Other, round

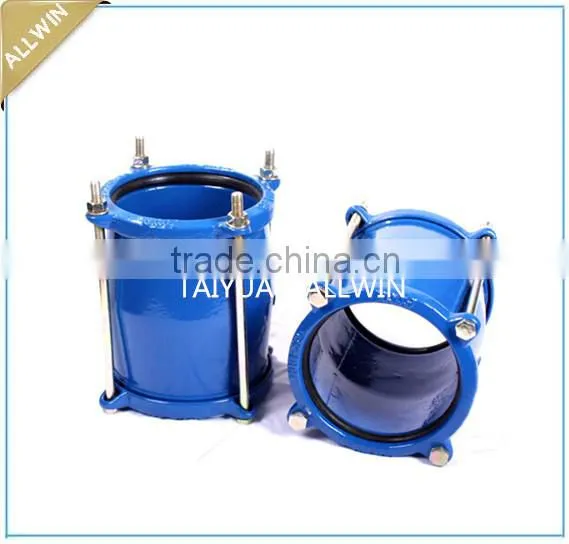

Gibault Joint for PVC Pipe
Description
Gibault joint is a coupling designd to supply a efficiency and economical method for PVC pipe
And it is a ideal way for re-connecting pipe after removal of the damaged PVC pipe or for
Connecting the two pipe into pipeline
The body is made by ductile iron material
The gasket is EPDM material for drinkable water or NBR material for oil/industrial pipe line
The surface with fusion bond epoxy or polyesrter coating which is suitable for drinkable water
The fastener is carbon steel galvanized.

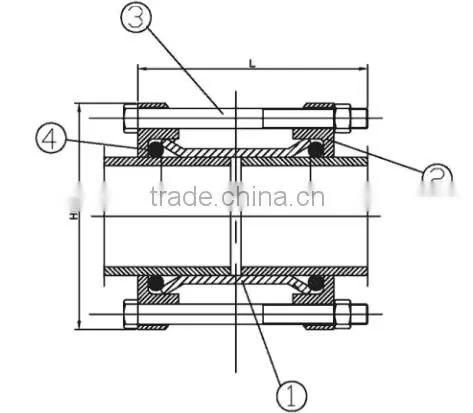

Material List
| No | Reference | Material | standard |
| 1 | Sleeve | Ductile iron | EN1563 |
| 2 | End ring | Ductile iron | EN1563 |
| 3 | Fastener | Carbon steel with galvanize | EN20289 |
| 4 | O-ring | EPDM/NBR | EN681/EN682 |
Dimensions
| NO | SIZE | BOLT | A | H | WEIGHT | |
| L | QTY | mm | mm | kg | ||
| 1 | 63 | 180 | 2 | 147 | 130 | 1.80 |
| 2 | 75 | 180 | 2 | 147 | 130 | 2.50 |
| 3 | 90 | 180 | 3 | 165 | 130 | 2.70 |
| 4 | 110 | 210 | 3 | 185 | 150 | 3.60 |
| 5 | 125 | 210 | 4 | 200 | 150 | 4.00 |
| 6 | 140 | 210 | 4 | 215 | 150 | 5.00 |
| 7 | 160 | 240 | 4 | 236 | 150 | 6.90 |
| 8 | 180 | 240 | 6 | 255 | 190 | 8.10 |
| 9 | 200 | 260 | 6 | 276 | 190 | 8.60 |
| 10 | 225 | 290 | 6 | 285 | 190 | 11.00 |
| 11 | 250 | 290 | 6 | 340 | 200 | 18.00 |
| 12 | 280 | 290 | 6 | 345 | 200 | 20.50 |
| 13 | 315 | 290 | 6 | 352 | 200 | 22.00 |

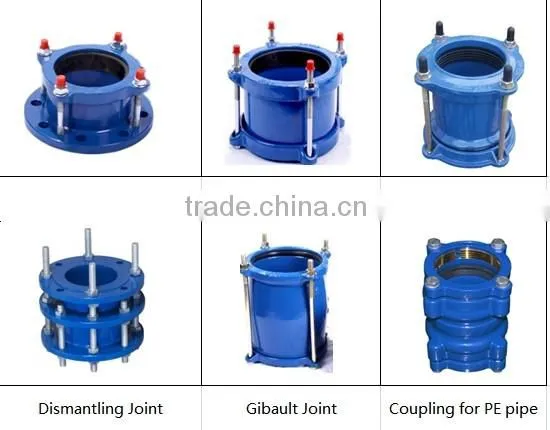

Coupling and adaptors we supply:
For more information, please contact us freely.
