Specifications
wood sawdust making machine1.application:wood and branch
2.high quality,high efficiency
3.strong structure

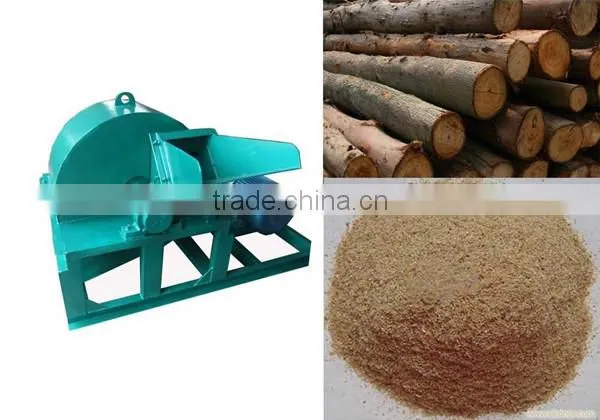

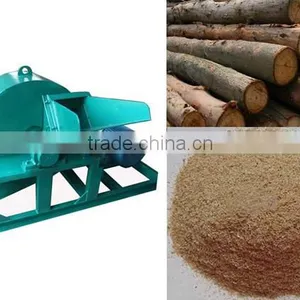

wood sawdust making machine/efficient timber mill
1.Introduction of wood sawdust machine:
The wood sawdust machine is excellent at crushing wood log, branch, chip into wood powder, shaving and chips.
The wood sawdust machine is widely used in wood pellet making, wood briquette making, wood powder making, charcoal briquette making, etc.
The wood sawdust machine can make different raw materials into the sawdust/chip/ shaving at one time.
3. The structure of wood sawdust machine:
1) It is composed of machine body, knife chipping part, chips re-crush part and sieving part,ect.
2) It combines both chipping and crushing in one machine, can make sawdust in one passage,
no need to use wood chipper for preprocessing of wood logs.
3) To ensure security, the feed inlet of this crushing equipment adopts self-section design to avoidserious damage to operators.
4. Features of wood sawdust machine:
It can be used for the development of producing some raw materials,such as mushroom,shaving board,high density board,charcoal etc.
1.Small investment;
2.Energy-saving;
3.High productivity;
4.Good economic returns;
5.Convenient maintenance.
MAIN TECHNICAL PARAMETERS
| Model |
Power (kw) |
Capacity (kg/h) |
Inlet size (mm) |
Blade Num |
Size (mm) |
Weight (kg) |
| Hh-420 | 7.5 | 0.5-1 t/h |
170*150 | 4 | 1500*900*1000 |
325 |
| Hh-500 | 15 | 1-2 t/h |
200*170 | 4 | 1700*1100*1100 | 405 |
| Hh-600 | 18.5 | 2-3 t/h |
220*190 | 4 | 1800*1100*1200 | 505 |
| Hh-700 | 30 | 2.5-3 t/h |
230*190 | 4-6 |
1900*1200*1400 |
695 |
Hh-800 |
45 | 3.5-4 t/h |
250*250 | 4-6 | 2000*1200*1400 | 820 |
Hh-1000 |
75+7.5 | 4-5 t/h |
280*270 | 8 | 2200*1350*1700 | 1062 |
FINAL PRODUCTS
WORKING SITE OF WOOD SAWDUST MAKING MACHINE
