Specifications
cornstalk crusher1.application:wood and branch
2.high quality,high efficiency
3.strong structure

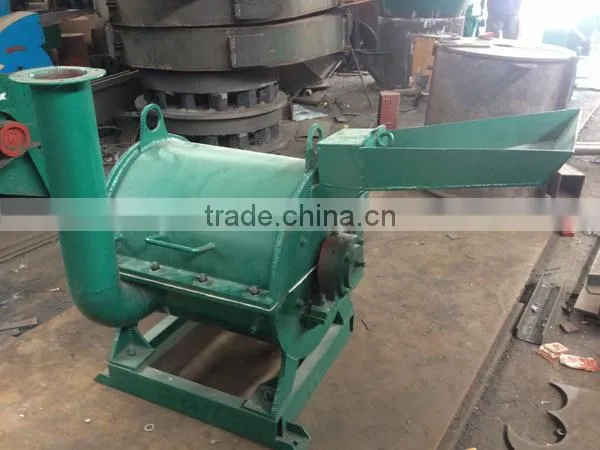

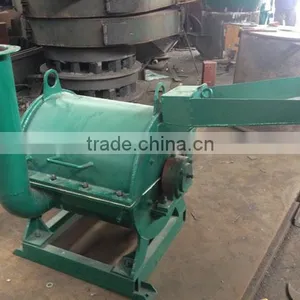

cornstalk crusher /wood sawdust making machine
Introduction of cornstalk crusher
This cornstalk crusher machine is used to crushing wood log, wood branch,
wood chip, etc, large capacity, powerful cutting and crushing,wood dust
crushing and grinding, widely using in wood pellet making, wood briquette
making, wood powder making, charcoal briquette making, etc
The structure of cornstalk crusher
1) It is composed of machine body, knife chipping part, chips re-crush part
and sieving part ,ect.
2) It combines both chipping and crushing in one machine, can make sawdust
in one passage,
no need to use wood chipper for preprocessing of wood logs.
3) To ensure security, the feed inlet of this crushing equipment adopts self-sction
design to avoid serious damage to operators.
MAIN TECHNICAL PARAMETERS
| Model |
Power (kw) |
Capacity (kg/h) |
Inlet size (mm) |
Blade Num |
Size (mm) |
Weight (kg) |
| Hh-420 | 7.5 | 0.5-1 t/h |
170*150 | 4 | 1500*900*1000 |
325 |
| Hh-500 | 15 | 1-2 t/h |
200*170 | 4 | 1700*1100*1100 | 405 |
| Hh-600 | 18.5 | 2-3 t/h |
220*190 | 4 | 1800*1100*1200 | 505 |
| Hh-700 | 30 | 2.5-3 t/h |
230*190 | 4-6 |
1900*1200*1400 |
695 |
Hh-800 |
45 | 3.5-4 t/h |
250*250 | 4-6 | 2000*1200*1400 | 820 |
Hh-1000 |
75+7.5 | 4-5 t/h |
280*270 | 8 | 2200*1350*1700 | 1062 |
FINAL PRODUCTS
Working site of cornstalk crusher
