Specifications
Spiral sand washing machine1. Little loss of sand in washing process
2. Large capacity
3. High washing efficiency
Spiral sand washer/washing machine for sand
Description of Spiral Sand Washing Machine
Sand washing machine are mainly used in building site, gravel plant, concrete dam building site of hydropower station, etc., and with features of high degree cleaning-up, reasonable structure, large capacity, low power consumption, small loss of the sands during the washing process, especially for that the drive parts of the sand washing machine are separated from water and sands. So that it has lower failure rate than the usual sand washing machine.
Working Principle of Spiral Sand Washing Machine :
The sand and stone flow into washing launder from feeding launder, rolls with the impellor, and grinds each other.
- The impurity covering the sand is washing away. At the same time, add more water, the strong water flow will take away waste and some low-weight wastes from washing launder. Through the above process, the washing function is finished.
- The clean sand and stone is lift up by vane. When it goes up slowly, the water begins to drop through the mesh and fall back in the washing launder.
- On one hand, water is removed from the sand and stone; on the other hand, the water can be fully used.
- Finally, the sand and stone goes to the out launder from the rotary impellor to finish the washing task.
Benefits of Spiral Sand Washing Machine
- Simple structure
- The bearing device of impeller drive is separated from water and materials with water, to avoid the damage of the bearing
- High capacity, low power consumption
- Easy structure, stable operation

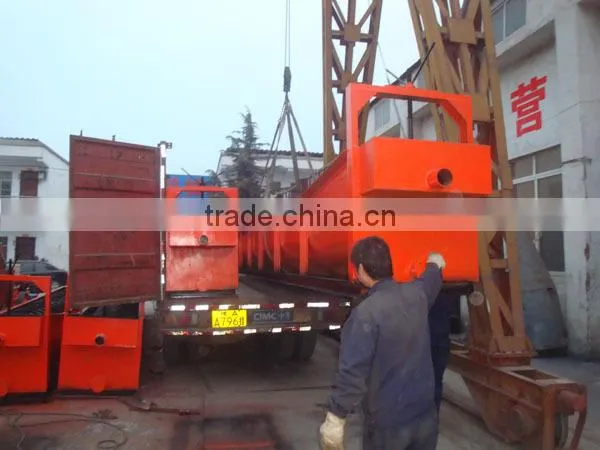

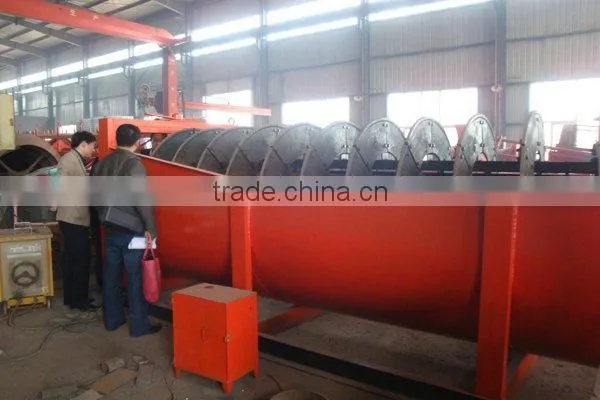

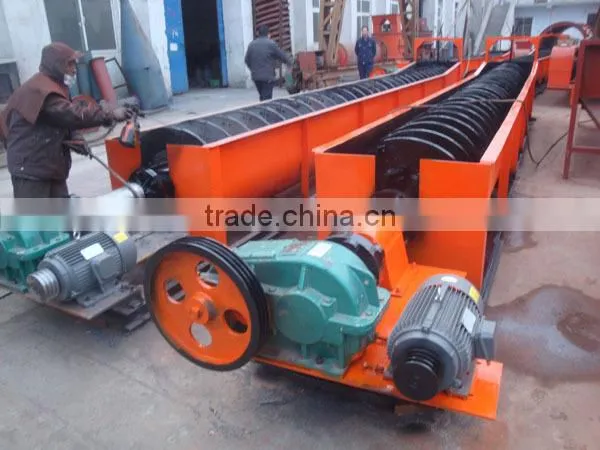

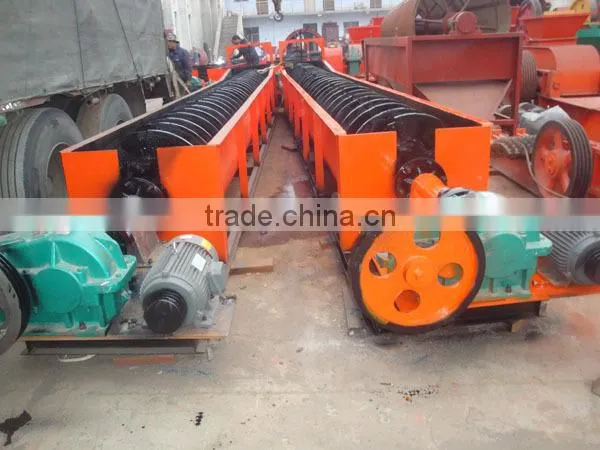

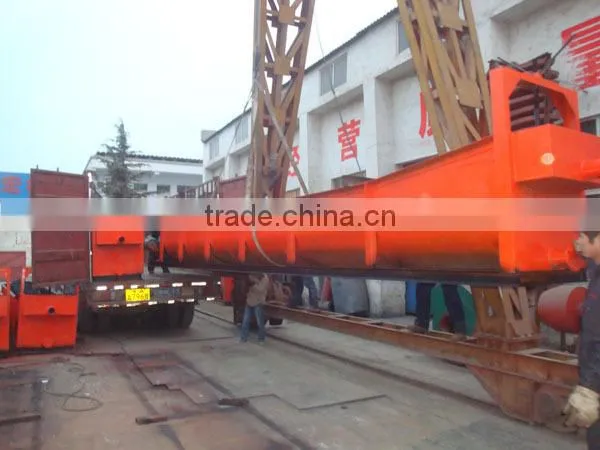

Spiral Sand Washing Machine Pictures show
Spiral Sand Washing Machine Main Technical Parameters
| Model | Spiral Diameter (mm) | Number of Spiral (pcs) | Feeding Size (mm) | Capacity (t/h) | Water Consumption (m3/h) | Motor Power (kw) | Overall Dimensions (mm) | Weight (t) |
| XL-762 | 762 | 1 | <10 | <75 | 9-63 | 11 | 9070*2650*1530 | 5.20 |
| 2XL-762 | 762 | 2 | <10 | <140 | 20-150 | 2*11 | 9070*3250*1530 | 7.45 |
| XL-914 | 914 | 1 | <10 | <100 | 10-80 | 15 | 9070*2650*1638 | 6.35 |
| 2XL-914 | 914 | 2 | <10 | <200 | 60-300 | 2*15 | 9070*3510*1638 | 11.30 |
| XL-1118 | 1118 | 1 | <10 | <175 | 13-168 | 22 | 9070*2830*1900 | 12.70 |
| 2XL-1118 | 1118 | 2 | <10 | <350 | 60-600 | 2*22 | 9070 |
FAQ
How is the quality of your products?
Our products are manufactured strictly according to national and international standard,and we take a test on every product before delivered out. If you want see our quality certifications and all kinds of testing report, please just ask us for it.
How about price?
Yes, we are factory and be able to give you lowest price below market one and we have a policy that “ for saving time and absolutely honest business attitude, we quote as lowest as possible for any customer, and discount can be given according to quantity”.
Why should we choose you?
Chose happens because of quality, then price, we can give you both. Additionally, we can also offer professional products inquiry, products knowledge train(for agents), smooth goods delivery, excellent customer solution proposals.Our service formula: good quality+good price+good service=customer’s trust.
Warmly welcome all customers from home and abroad to visit our company, for friendship and cooperation!
