Wheel Type Stone / Sand Washing Machine
- 50 Set / Sets per Month
- Qingdao Shanghai Tianjin port
- T/T L/C D/P D/A Credit Card PayPal
- Spiral Washing and Stone Washing Machine
- Wheel Sand Washing Machine
- Competitive Price Fine Sand Recycling Machine Sand Recovery Plant
- Beach Sand Cleaning Machine Wheel Sand Washer With Good Quality
- Small Sand Washing Machine Silica Sand Washing Plant Sand Washer For Sale
- Fine Sand Recycling Machine For Sale
Product Details
Condition: | New | Motor Type: | AC Motor | Power(W): | 3-37kW |
Capacity(t/h): | 10-200tph | Place of Origin: | Henan, China | Brand Name: | huahong |
Model Number: | xs series | Dimension(L*W*H): | refer to detail model | Weight: | 3.5-14.5t |
Certification: | ISO,ce | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
bucket-sand washing machine1.Simple structure for easy maintenance
2.Rare loss of fine sand
3.Few spare parts
4.Long ser

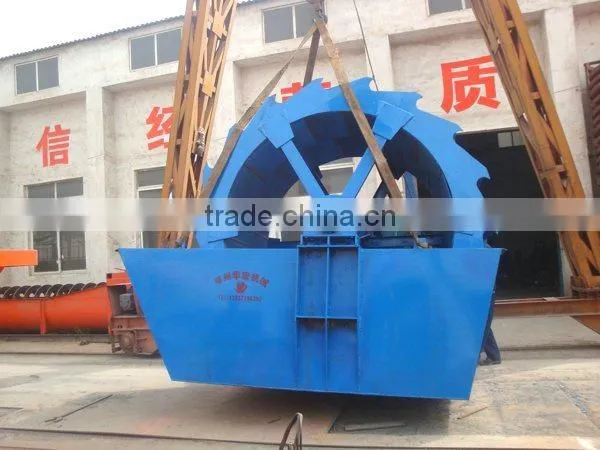

Wheel Type Stone / Sand Washing Machine
Introduction
Sand washing machine is widly used in the construction site, sand factory, hydro power station, the concrete dam site, etc. it has high wash degrees reasonable structure, high capacity, low consumption, low sand loss in the sand washing process. especially the washing machine transmission parts are separated from the water and sand, so the failure rate significantly lower than the currently used sand washing machine, it is the best option for upgrading sand washing industry in domestic.
Features
1. Low water consumption, energy saving, pollution free
2. Removing dust, impurities, fine powder
3. Reasonable structure, convenient maintenance, no wearing parts (except screen), long service life
4. High accuracy, increased washing speed
Parameters
Specification | XS2600 | XS2800 | XS3000 | XS3200 | XS3600 |
Bucket diameter (mm) | 2600 | 2800 | 3000 | 3200 | 3600 |
Speed (r/min) | 0.8-1.2 | 0.8-1.2 | 0.8-1.2 | 0.8-1.2 | 0.5-1.2 |
Handling capacity (t/h) | 20-80 | 50-100 | 30-70 | 80-120 | 120-150 |
Return to the sand(t/h) | 5-20 | 10-30 | 5-25 | 15-35 | 25-40 |
Motor (kw) | 5.5 | 7.5 | 7.5 | 11 | 15 |
Weight (kg) | 3500 | 5100 | 7200 | 8800 | 14200 |
