Specifications
spiral sand classifier1. Little loss of sand in washing process
2. Large capacity
3. High washing efficiency
Large capacity high quality mining spiral sand classifier,spiral winding machine Description of spiral sand classifier
Mineral processing spiral classifiers are mainly used in building site, gravel plant, concrete dam building site of hydropower station, etc., and with features of high degree cleaning-up, reasonable structure, large capacity, low power consumption, small loss of the sands during the washing process, especially for that the drive parts of the sand washing machine are separated from water and sands. .
Working Principle of spiral sand classifier
Different solid granularities have different gravity and thus have different dropping speed. The fine ore granularities floating in the water will overflow and the big ones will sink to the bottom and discharge from the upper part by spiral pushing. It can filter the granularities from the machine and then spin the rough particles to charging part by spiral vane and discharge the fine granularities from the overflow pipe.
The base of the machine adopts channel steel material and the body adopts welded steel plate. The water inlet of spiral axle and axle head adopt iron cover for wear proofing and long life operation. The lifting equipment has two types, manual control and electric control.
Features and Benefits of spiral sand classifier
1). Large output, low energy consumption, high classifying efficiency
2). The granularity is concentrative distribution, high classification precision
3). Rational structure, fine applicability
4). A high degree of automation
Structure of spiral sand classifier
The spiral classifiers consists of cell body, speed reducer ,motor power ,central shaft, spiral scatters, support parts. Zhengzhou Huahong is the real good producer of spiral classifiers,which has decades of experience of how to producing the quality spiral classifiers with stick steel plate . We can supply almost all the machine which connecting with beneficiation .

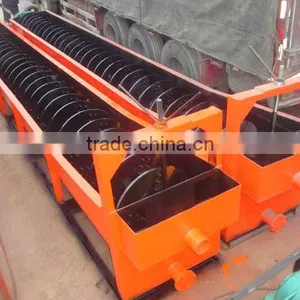

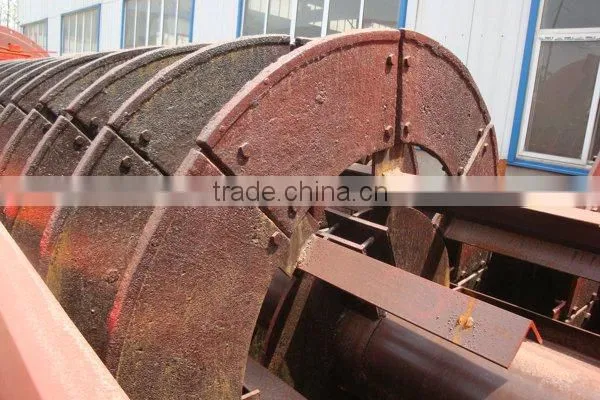

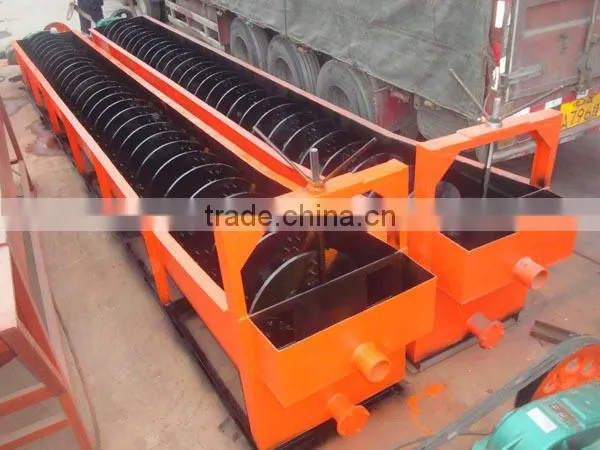

spiral sand classifier Pictures show
Main Technical Parameters
Model |
Spiral diameter(mm) |
Trough length(mm) |
Spiral rotation speed(r/min) |
Capacity(t/d) |
Power(kw) |
Weight
(t)
|
||
Return sand |
Overflow |
Driving |
Flifting |
|||||
FG7.5 |
750 |
5500 |
6-10 |
340-570 |
65 |
3.0 |
Manual |
2.7 |
FG10 |
1000 |
6500 |
5.0-8.0 |
675-1080 |
110 |
5.5 |
Manual |
4.43 |
FG12 |
1200 |
6500 |
5.0-8.0 |
1170-1870 |
155 |
5.5 |
1.5 |
8.7 |
FG15 |
1500 |
8400 |
4.0-6.0 |
1830-2740 |
235 |
7.5 |
2.2 |
12.5 |
FG20 |
2000 |
8400 |
4.0-6.0 |
3240-5400 |
400 |
11 |
2.8 |
20.5 |
FG24 |
2400 |
9210 |
3.6 |
4650-7450 |
580 |
15 |
3.0 |
25.6 |
FG30 |
3000 |
1250 |
3.2 |
11625 |
890 |
22 |
4.0 |
37.7 |
2FG12 |
1200 |
6500 |
5.0-8.0 |
2340-3740 |
310 |
5.5x2 |
1.5x2 |
14.0 |
2FG15 |
1500 |
8400 |
4-6.0 |
3660-5480 |
470 |
7.5x2 |
1.5x2 |
21.1 |
2FG20 |
2000 |
8400 |
3.0-5.5 |
7780-11880 |
800 |
11x2 |
2.8x2 |
36.5 |
2FG24 |
2400 |
9210 |
3.6 |
13600 |
1160 |
15x2 |
3x2 |
46.8 |
2FG30 |
3000 |
12500 |
2.0-3.2 |
14600-23400 |
1785 |
22x2 |
4x2 |
73.0 |
Note: If the type is not what you need, please contact us and more other types are available.
Also, we are pleasure to special design for you according to your needs.
About our company
1.Zhengzhou Huahong Machinery Equipment Co., Ltd. mainly produces iron selecting equipment,kinds of drederes, dredging equipment, sand washing and sand making equipment, gold panning equipment, magnetic separating, crusher and so on, there are more than hundred kinds of products.
2.We design produce various of products according to the customers requirement and geographical condition. It is a modern largescale mineral processing equipment manufacturer for research and development, engineering design, producing installation, commissioning and after sale service.
3.We attach the development of scientific research, and form strategic partnership with the major research institutions. And we had established good cooperation with Import and export trading company, established Shandong magnetic equipment Research Instituting.
4.Honesty and credit is our bussiness value , customer first.First-class quality and first-class service is the business life.
