Application of professional and environmental raymond mill,stone raymond mill price:
Raymond mill is suitable in grinding barite,limestone,ceramic,coking coal and so on.it is mainly applied to the power processing of mineral products in the industries of mining,metallurgy,construction materials and chemical materials ect. More than 280 kinds of high finesse power grinded,and the final product size can be adjusted as required in the rang of 80-425 meshes(even til 1000 meshes).

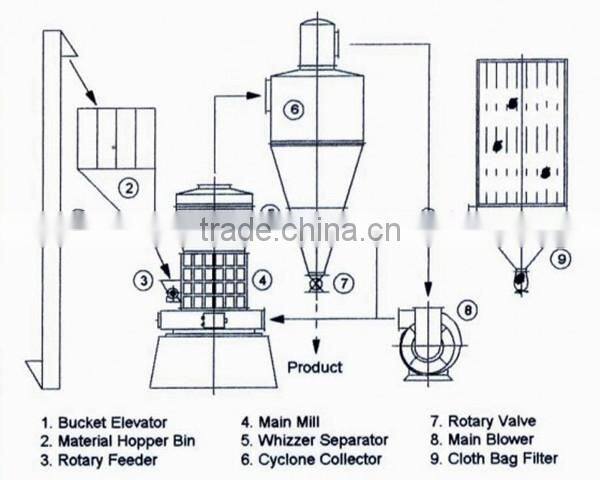

Working principle of professional and environmental raymond mill,stone raymond mill price:
Firstly, raw material is crushed by jaw crusher to the size required, then the crushed materials are elevated into a hopper from which the material is transported through the electro-magnetic vibrating feeder, evenly and continuously into the grinding chamber for powder-processing. The rollers oscillate outward to press the ring because of the centrifugal force and the shovel scoops up the materials, send to the middle between ring and roller to accomplish the grind.After this, the ground stuff are carried by the air from the blower into the separator for screening. The fine powers are blow into the cyclone collector and are poured out through the output-powder valve as the final products and the rough stuff after the screening will be recycled back into the grinding chamber for regrinding. The sets airflow system is closely sealed up and circulated under condition of negative and positive pressure.

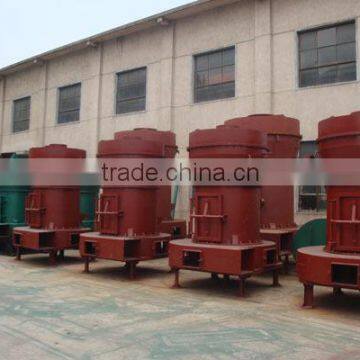

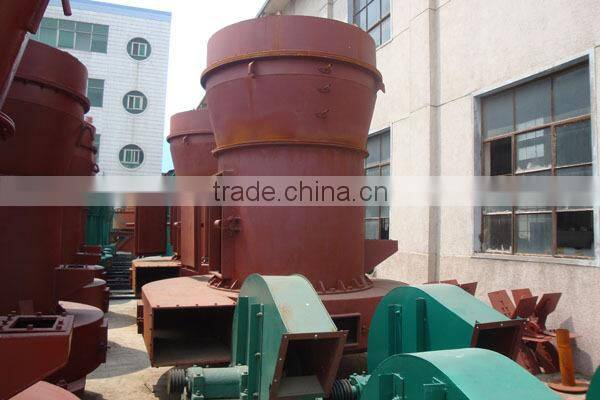

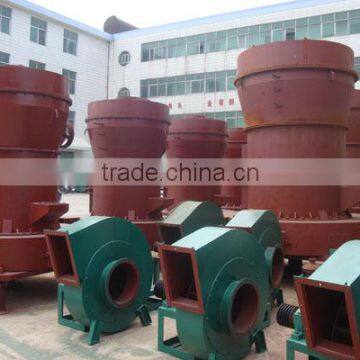

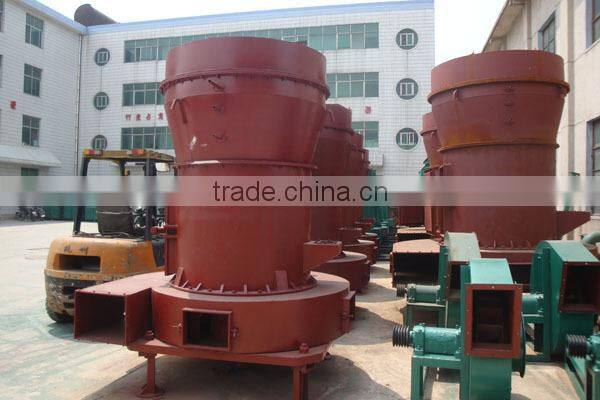

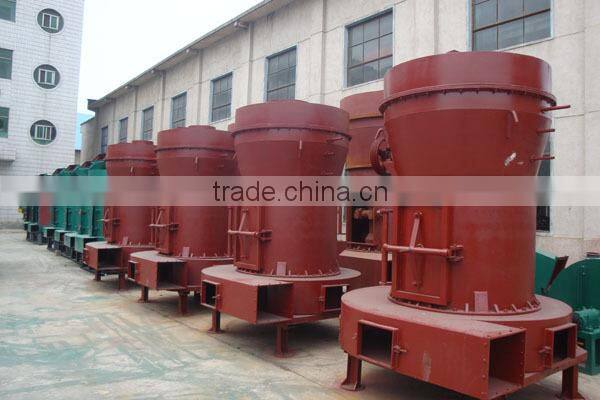

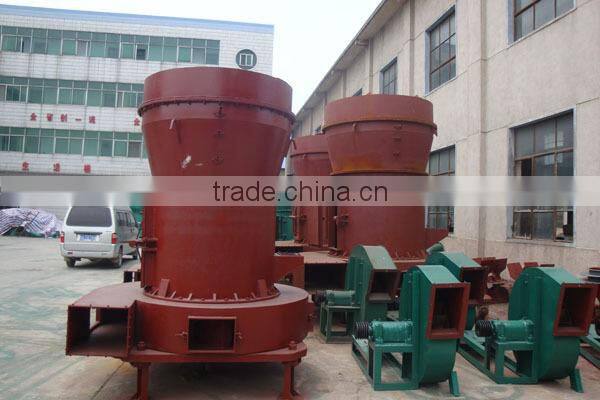

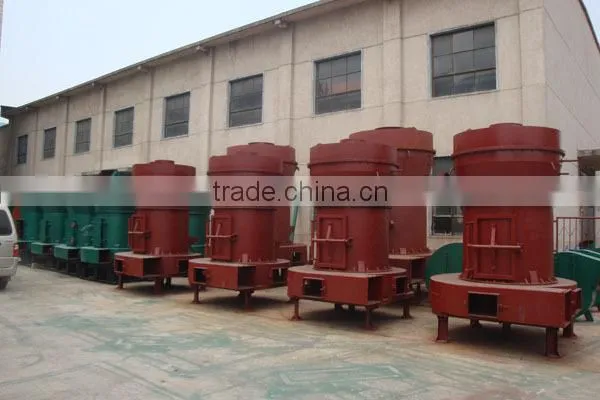

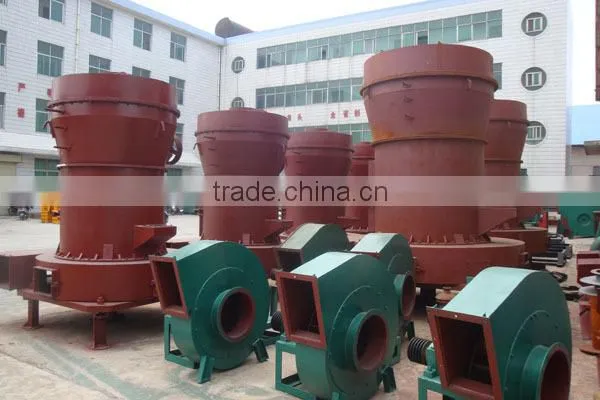

View of professional and environmental raymond mill,stone raymond mill price in our factory for view:
Main technical parameters:
Model |
Grinding Roller |
Grinding Ring |
Feeding |
Output size (mm) |
Capacity |
Motor |
Overall |
|||
Nos |
Diameter |
Height |
Outside |
Height |
||||||
3R1410 |
3 |
140 |
100 |
495 |
100 |
<8 |
0.613-0.044 |
0.15-1.2 |
14.1 |
3340×2200×3200 |
3R2115 |
3 |
210 |
150 |
726 |
150 |
<15 |
0.613-0.044 |
0.28-1.8 |
28.2 |
4480×3100×3970 |
3R2615 |
3 |
260 |
150 |
865 |
150 |
<15 |
0.613-0.044 |
0.35-2.8 |
35.7 |
5000×4100×4850 |
3R2715 |
3 |
270 |
150 |
884 |
150 |
<15 |
0.613-0.044 |
0.40-3.4 |
42.7 |
5050×4150×4900 |
3R3015 |
3 |
300 |
150 |
|
150 |
<15 |
0.613-0.044 |
0.45-3.7 |
55 |
5200×4200×4950 |
4R3016 |
4 |
300 |
160 |
990 |
160 |
<20 |
0.613-0.044 |
0.6-4.5 |
55 |
5250×5000×5500 |
4R3216 |
4 |
320 |
160 |
1073 |
160 |
<25 |
0.613-0.044 |
1.0-5.2 |
72.5 |
7700×7200×8800 |
5R4119 |
5 |
410 |
190 |
1400 |
190 |
<30 |
0.613-0.044 |
2.0-9.0 |
157.5 |
7900×8800×9650 |
