Home > Products > Raymond mill > Raymond roll mill with CE,ISO approved
Raymond roll mill with CE,ISO approved
- 100 Set / Sets per Month
- Shanghai Dalian Qingdao
- T/T
Product Details
Condition: | New | Type: | Raymond Mill | Motor Type: | AC Motor |
Capacity(t/h): | 1-30 | Place of Origin: | Henan, China | Brand Name: | Huahong |
Model Number: | 3R-6R | Dimension(L*W*H): | Refer to specification | Weight: | Due to models |
Certification: | ISO9001:2008, ISO9001:2008 & CE | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
1.High grinding fineness2.Short delivery time
3.First rate service
Raymond roll mill introduction:
It is used in grinding the non-flammable and non explosive stuff which has the mohs hardness below 9.3,
humidity less than 6%,such as gypsum,talc,Calcite,limestone,marble,feldspar,barite,dolomite,granite,kaolin,bentonite,bauxite,iron ore etc.the final products could be 60-325 me materials could get 1000 mesh.

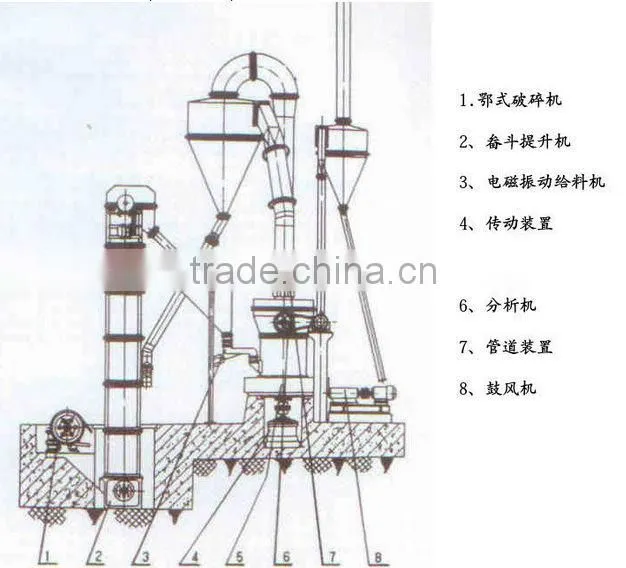

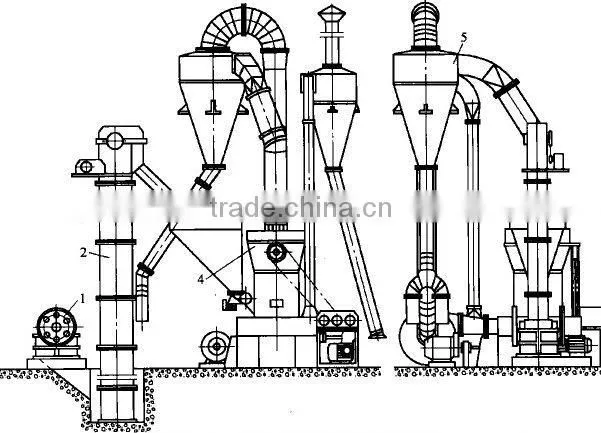

Raymond roll mill main parts:
The whole set raymond mill consists of jaw crusher----bucket elevator----feed bin----vibrating feeder----host machine----powder collector----duct catcher----pipes----speed reducer----blowers----motor
Raymond roll mill work principle: 2615 raymond mill
Firstly, raw material is crushed by jaw crusher to the required size, which is lifted up to the hopper. Secondly, the raw material goes into the grinding chamber through the electro-magnetic vibrating feeder at an even rate. Thirdly, the raw material lifted by the shovel is ground into powder between the ring and roller. Fourthly, the powder is blown up to the cyclone collector through the classifier, which will be collected through the discharging valve. The unneeded powder, which cannot go through the classifier, will be reground into the needed powder.
Technical data:
Type | 6R4525 | 5R4121 | 5R4119 | 4R3218 | 4R3216 |
Max Feeding size(mm) | 30 | 30 | 25 | 30 | 30 |
Fineness of finished product(mm) | 0.125-0.044 | 0.125-0.044 | 0.125-0.044 | 0.125-0.044 | 0.125-0.044 |
Production(t) | 13-40 | 8-15 | 5-10 | 2.5-9 | 2-8 |
Speed of axis(r/min) | 82 | 105 | 105 | 130 | 130 |
Dia of Ring (mm) | 1620 | 1270 | 1270 | 970 | 970 |
Dia of Roller(mm) | 450 | 410 | 410 | 320 | 320 |
Roller height(mm) | 250 | 210 | 190 | 180 | 160 |
Main motor (KW) | Y315m-4-132 | Y280s-4-75 | Y280s-4-75 | Y225s-4-37 | Y225s-4-37 |
Fan motor (KW) | Y315m-4-132 | Y250m-4-75 | Y250m-4-75 | Y200L-4-37 | Y200L-4-37 |
Analysis motor(KW) | Y160m-4-11 | Yc200-4-7.5 | Yc200-4-7.5 | Yc120-4-5.5 | Yc120-4-5.5 |
Model | 3R3015 | 3R2715 | 3R2615 | 3R2115 |
Max Feeding size(mm) | 25 | 25 | 20 | 15 |
Fineness of finished product(mm) | 0.125-0.044 | 0.125-0.044 | 0.125-0.044 | 0.125-0.044 |
Production(t) | 1-4 | 0.9-3.5 | 1.7-3 | 0.5-2 |
Speed of axis(r/min) | 160 | 160 | 160 | 180 |
Dia of Ring (mm) | 860 | 830 | 780 | 650 |
Dia of Roller(mm) | 300 | 270 | 260 | 210 |
Roller height(mm) | 150 | 150 | 150 | 150 |
Main motor (KW) | Y225m-8-22 | Y225m-8-22 | Y225s-8-18.5 | Y200L-8-15 |
Fan motor (KW) | Y180m-4-22 | Y160L-4-18.5 | Y160L-4-15 | Y160m-4-11 |
Analysis motor(KW) | Y112m6-2.2 | Y112m6-2.2 | Y112m6-2.2 | Y112m6-2.2 |

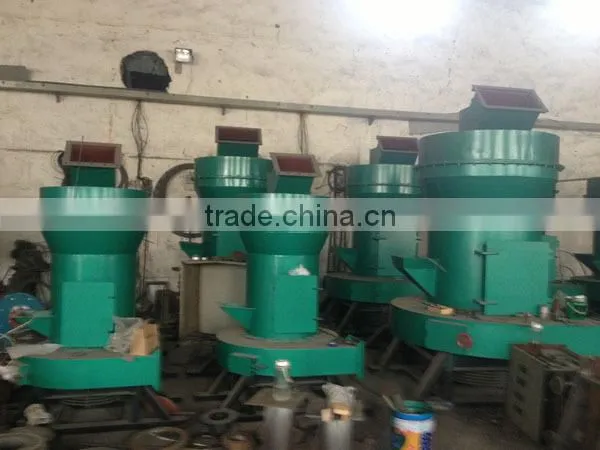

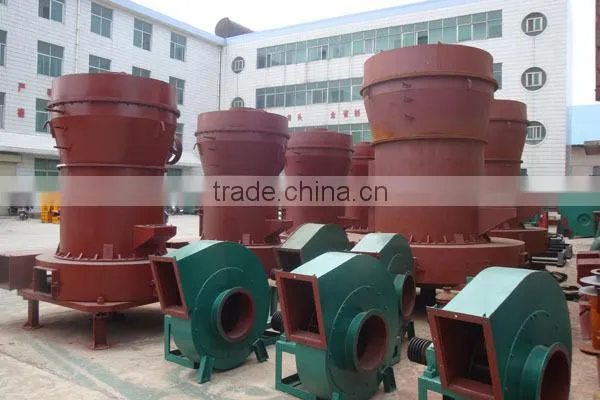

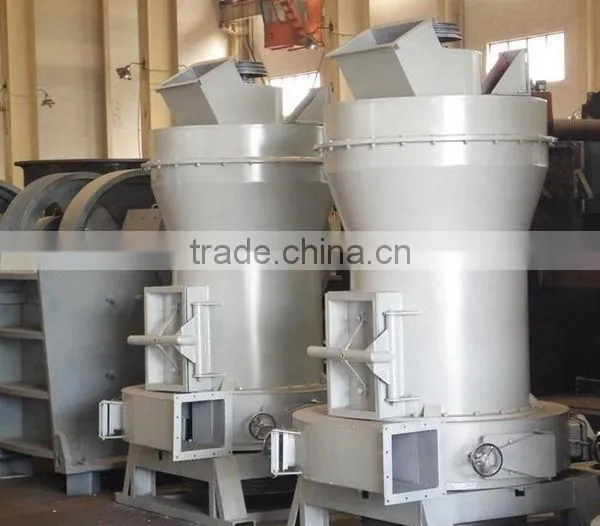

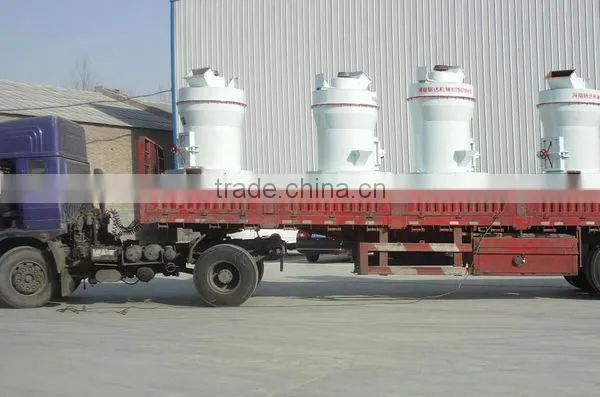

Raymond mill pictures:
1)Pre-sales service:We could recommand suited models and factory price according to your demands warmly.
2)Sales service:Talk the detailed with you patiently.
3)After-sales service:We will provide 1 years warranty so that your machine can runs consistently.
If you are interested in our raymond mill , pls contact us asap, besides,pls tell me some information as follows in your enquiry:
1>what raw material do you want to grind?
2>what size is your raw material?
3>what is your capacity?
4>About the final product , what is your requirements ?
Contact Us
- Zhengzhou Huahong Machinery Equipment Co., Ltd.
- Contact nameLily Li
- Phone86-371-67898087
- AddressSouthward 150 Meters Away From Intersection Of Chemical West Road And Changchun Road, Tielu Village, Xiliuhu Street, Zhongyuan District Zhengzhou,Henan
