2014 China simple structure and good quality raymond mill with high ratio of grinding

Specifications

Raymondmill with high quality for sale
1.High ratio of grinding
2.Even final size
3.Simple structure
4.CE,ISO9001

2014 China simple structure and good quality raymond mill with high ratio of grinding



Working principles of raymondmill

1.First, the materials are crushed by the jaw crusher.

2.Then the crushed materials are transferred to a hopper by the elevator ,fed uniformly.quantltatively and continously by the vibration feeder to the grinding chamber of the main frame for grinding

3.The grinded particles are brought up by the air current of the blower into the classifier for classification

4.The particles with the required fineness are brought up by the air current through the pipe into a collector for separation and collection.

5.The finished particles are discharged from a pipe outlet.

6.Because of some moisture contained in the materials to be grinded,the heat resulting from grinding leads to the vaporized air which changes the airflow volume,Moreover,the outside air inhaled from the narrow gaps of the piping connections can increase the volume of air current. it is necessary to adjust redundant air pipe between the blower and the main unit for keeping the balance of the air current.)Then the redundant air is quided into a cloth bag of a dust cleaner to collect the fine power in the air.

7.Finally, the redundant air is discharged after purification.





Introduction of raymondmill

Raymond mill consists of main frame,duct fan,analyzer,cyclone power collection device,bag duct collector and pipe connection.we will provide the elevator,bunker,electrical cabinet,feeder,crusherand so on. to meet clientsrequirements.





Main parameters of raymondmill

Technical Parameter/Type	3R1510	3R2115	3R2615	3R2715	3R3016	4R3216	5R4119	3R7826	3R8327	4R9531
Max Feeding Size(mm)	≤8	≤15	≤20	≤20	≤20	≤30	≤30	≤20	≤20	≤30
Finished Product Granularity(mm)	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044	0.125-0.044
Shift Output(Different Materials)(t)	1-10	1-18	2-25	2-28	3-35	3-45	5-70	2-28	3-30	3-38
Rotating Speed Of Central Shaft(r/min)	280	180	150	150	130	130	103	150	150	130
Grinding Ring Internal Diameters(mm)	Φ405	Φ640	Φ780	Φ830	Φ870	Φ970	Φ1280	Φ780	Φ830	Φ950
Grinding Roll Diameters(mm)	Φ150	Φ210	Φ260	Φ270	Φ300	Φ320	Φ410	Φ260	Φ270	Φ310
Height of Grinding Ring and Grinding Roll(mm)	100	150	150	150	160	160	190	150	150	170















































Note: This specification is just for reference.



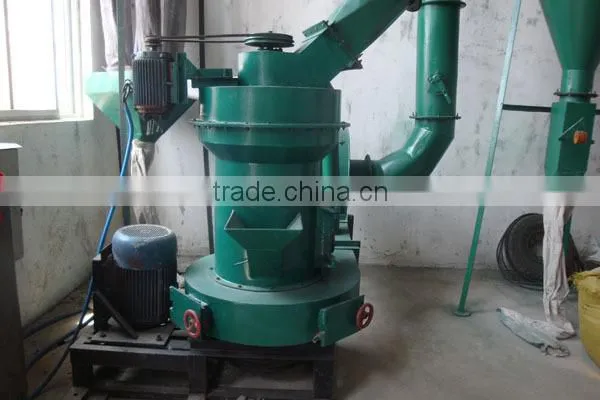

Pictures of raymondmill







Components of raymond mill





Frame figure
