Specifications
Gold Shaking Tables:1.High efficient gold separation;
2.Gold shaking tables as per SGS;
3.Easy shaking stroke.
6S Gold Shaking Table
Detailed description:
Shaking table is one of the major gravity ore dressing machines, in some aspect it is the most important gravity ore dressing machine. It was designed to concentrate the fine-grinded or micro-grinded rare metal & precious material.
The shaking table separate the mineral granular based on the gravity differences between the different materials inside the pulp. When the pulp reached the table surface from the feeding channel, the granular in it will be effected by the gravity force, water flow force, the inertial force and friction force which comes from the reciprocating movement of the table surface, under the effect of these four forces, the granular inside the pulp will be classified and moved to the different direction: the high density one will go front and drop from the concentration end, the gangue will go to the tailing side, and the middles will be re-concentrated on the shaking table.
Application:
Shaking table has been widely used in the rare metal dressing plant, such as scheelite, wolfram, tin ore, tin ore, placer mine, tantalite, columbite and etc. And also some times it been used to concentrating manganese ore and iron ore.
The shaking table normally had been put at the end of ore dressing plant as the final concentration process.
Technical parameter:
Name | bed surface for coarse sand | bed surface for fine sand | bed surface for slurry | |
Bed dimension
| Length (mm) | 4450 | 4450 | 4450 |
| transmission end width (mm) | 1855 | 1855 | 1855 |
| concentrate ore width (mm) | 1546 | 1546 | 1546 |
Max Feeding Size (mm) | 2 | 0.5 | 0.15 | |
Feeding volume (t/h) | 30-60 | 10-20 | 15-25 | |
Feeding density (%) | 25-30 | 20-25 | 15-25 | |
stroke (mm) | 16-22 | 11-16 | 8-16 | |
Frequency ( t/s) | 45-48 | 48-53 | 50-57 | |
Cross Slope of Surface | 2.5°-4.5° | 1.5°-3.5° | 1°-2° | |
mineral dressing area(m2) | 7.6 | 7.6 | 7.6 | |
Shape of bed surface | Rectangle | indention | Triangle | |
Motor Power (KW) | 1.1 | 1.1 | 1.1 | |
Driving type | Eccentric link structure | |||
This is our product:
This is transmission gear:

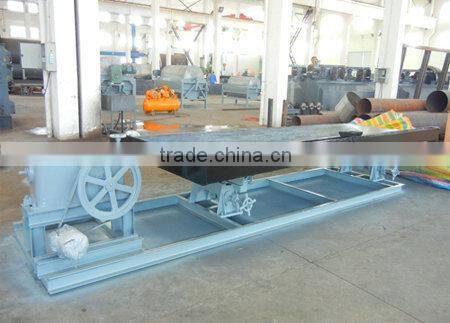

This is final appearance:
Practicing using in gold minie:
