Specifications
shaking machine1.Easy to operate
2.Shaking table to recovery the different concentrate
3.Ore beneficiations
4.CE certifi

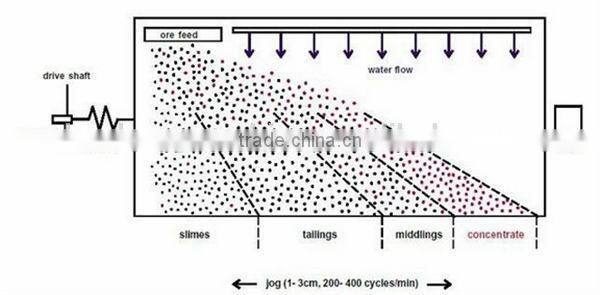

Shaking Table Operation Principle:
The Shaking Table separation is operated by the force between deck water flow and transverse water flow. The riffles or the grooves in the deck is longitudinal which is vertical with the direction of water. When the water flows, it will cause the swirling. The force caused by water swirling and deck pulsation will loosen the ore sand layer and the different minerals will be separated as the different density. The heavier mineral will fall down, and the lighter one will be raise up. So the concentration is operated.
Shaking Table Classification:
LS glass steel shaking tables are effective gravity separation equipment which can be used for different operation such as rough selection, elaborate selection and scavenging for large, medium and small-sized factories and applies to the sorting of nonferrous metal, ferrous metal, rare and precious metal, gold and nonmetallic ores of fine grains. Such shaking tables are divided into ore sand tables and ore slime tables. Ore sand tables apply to the sorting of coarse ores and ore slime tables apply to the sorting of fine ores.
Features of shaking machine :
The characteristics of Wilfley Wet Shaking Table are high enrichment ratio, high efficiency of beneficiation, easy operation and convenient stroke adjustment. Changing the horizontal slope and stroke length, it can still maintain bed running in balance. Spring is placed in the box, so its structure is compact. Also it can eventually get the concentrates and tailings.
l High recovery ratio
2 High concentration ratio
3 Easy installation
4 Simple operation
5 Deck constructed of fiber glass
6 Three different decks to choose
7 Long working life
8 Adjustable stroke length

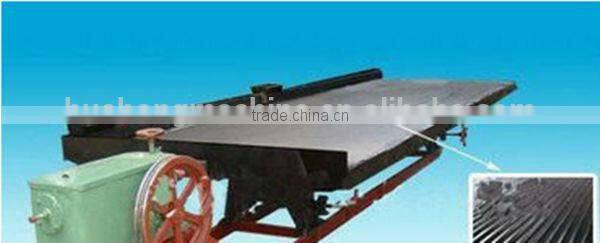

Structure of shaking machine :
Head motion: Wilfley Wet Shaking Table cast iron to contain an oil reservoir for perfect splash lubrication. This feature protects the moving parts, reducing operating and maintenance costs to a minimum
Main parameter of shaking machine :
Name |
bed surface for coarse sand |
bed surface for fine sand |
bed surface for slurry |
|
|
Bed dimension
|
Length (mm) |
4450 |
4450 |
4450 |
|
transmission end width (mm) |
1855 |
1855 |
1855 |
|
concentrate ore width (mm) |
1546 |
1546 |
1546 |
Max Feeding Size (mm) |
2 |
0.5 |
0.15 |
|
Feeding volume (t/h) |
30-60 |
10-20 |
15-25 |
|
Feeding density (%) |
25-30 |
20-25 |
15-25 |
|
stroke (mm) |
16-22 |
11-16 |
8-16 |
|
Frequency ( t/s) |
45-48 |
48-53 |
50-57 |
|
Cross Slope of Surface |
2.5°-4.5° |
1.5°-3.5° |
1°-2° |
|
mineral dressing area(m2) |
7.6 |
7.6 |
7.6 |
|
Shape of bed surface |
Rectangle |
indention |
Triangle |
|
Motor Power (KW) |
1.1 |
1.1 |
1.1 |
|
Driving type |
Eccentric link structure |
|||
Note: This specification is just reference, any changes are subject to the products.
Why Choose Us?
We are the manufactory, we can provide you ex-factory price;
Strictly quality control system;
Professional technical online service;
Any mail or message will be replied within 8 hours;
Completive manufactory price;
We have many large ore dressing line;
We will provide equipment operation training for our client;
We have a professional after-sale service team to promptly solve your problems.

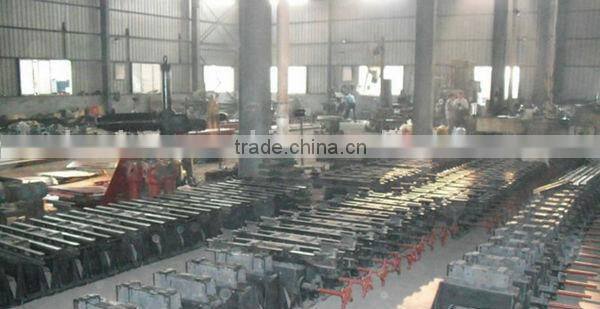

Certification about our factory:
Our service:
Mining machines design and manufacture.
Technical engineer is available to the construction site for installation instruction and trial operation.
Customization is available.
More information please contact me!
Your kindly enquiry will be highly appreciate;
Your visit to our company will be warmly welcome!
