Specifications
EPS/Mineral wool sandwich panel machine*Profile roll formers
*Gluing parts and Heating
*Rolling laminating

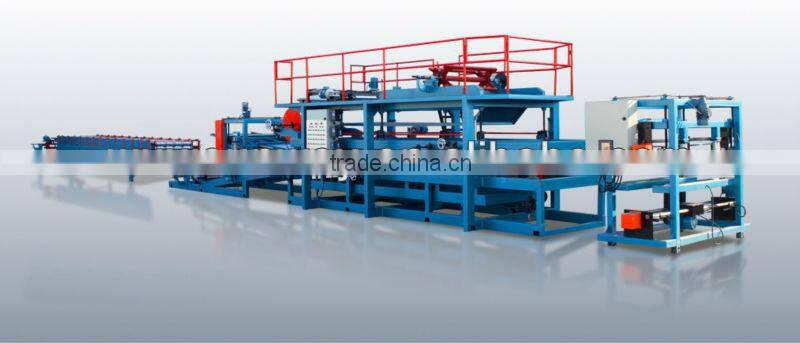

EPS/Mineral wool sandwich panel machine
Product description:
1. This line adopts advanced technology integrating pneumatic, electric and mechanical technology.
2. It is controlled by computer; display Chinese / English language .People can very easy operate it.
3. The line speed is very stable because its infinitely variable speed.
4. The length of final sandwich panel can be controlled by the computer system based on user’s requirements.
The computer system has precise orientation with timed display on the touch screen. And it has the ability of Automatic counting and
correction.
5. This line deploy roll forming machine for the roof panel, can produce over 10 different profiles of the panel.
6. The shape of the sandwich panel can be designed and modified according to user’s requirements, this is for demand of different
users.
In common use material and specification as following:
Shape |
Core Thickness (mm) |
Coil Width (mm) |
|
A.950/1150 H panel (EPS&rock wool Panel) |
50-250 (rock wool 50,75,100) |
Effective width 950 Upper profile coil width:1000 lower profile coil width:1000 Effective width 1150 Upper profile coil width:1200 lower profile coil width:1200 |
|
B.950 Jack panel (EPS&rock wool Panel) |
50-200 (rock wool 50,75,100) |
Effective width 950 Upper profile coil width:1200 lower profile coil width:1000 |
|
C.980 Roof panel (only for EPS Panel) |
50-200 |
Effective width 980 Upper profile coil width:1200 lower profile coil width:1000 |
